Concealed flushing cistern 9052
A contemporary concealed cistern with standard dimensions, designed for effortless maintenance without the need for any tools. A wide variety of flushing plates are available, offering numerous combination possibilities.
Product number:
351884
EAN:
3838912020314
- For pre-wall or solid wall mounting
- Concealed flushing cistern 9052
- Frontal flushing, dual flushing (3/9 l)
- Adjustable flushing volume (a large quantity of water 7–9 l, small quantity of water 3–6 l)
- Connection to water supply – top center
- Fully insulated against condensation
- Silent mechanical filling valve (noise emission class 1 ISO 3822)
- Concealed flushing cistern equipped with preassembled angle valve – top center
- Water connection G 1/2
- Flushing pipe L = 300 mm
- Construction grid
- Brackets for flushing cistern installation
- All parts required for installation and mounting are supplied with the product
- The flushing plate needs to be ordered separately
- Possible installation of flushing plates: Ruby, Caro, Zircon, Circle, Tempo, Beat, Key, Tune, Aplite Duo, Dots Duo, Selenite Duo, Ovate Duo
| Adjustable flushing water quantity: | Yes |
|---|---|
| Depth: | 80 mm |
| Flushing: | Two quantities |
| Flushing water quantity: | 3 to 9 l |
| Height: | 560 mm |
| Interruptable: | No |
| Material flushing reservoir: | Plastic |
| Material quality: | Other |
| Outer pipe diameter tap water: | 20.96 mm |
| Size of tap water connection: | 1/2 inch |
| Sound class according to EN ISO 3822: | Group I, <=20 dB(A) |
| Suitable for electrical operation: | No |
| Suitable for front operation: | Yes |
| Suitable for manual operation: | Yes |
| Suitable for pneumatic operation: | Yes |
| Suitable for shelf operation: | No |
| Tap water connection: | External thread |
| Variable flushing bend length: | Yes |
| Warranty: | 10 years |
| Water connection, left: | No |
| Water connection, right: | No |
| Water connection, top: | Yes |
| Width: | 450 mm |
| With anti-condensation insulation: | Yes |
| With control panel: | No |
| With inlet and outlet fittings: | Yes |
| With stop valve: | Yes |
| Product number: | Description | Image |
|---|---|---|
| 229109 | Fill valve HDV G 3/8 brass |
|
| 634525 | Flush valve set with a seal |
|
| 634517 | Fixing nut set, complete |
|
| 634523 | Bridge, cistern 9052 |
|
| 634526 | Actuating lever set, cistern 9052, complete |
|

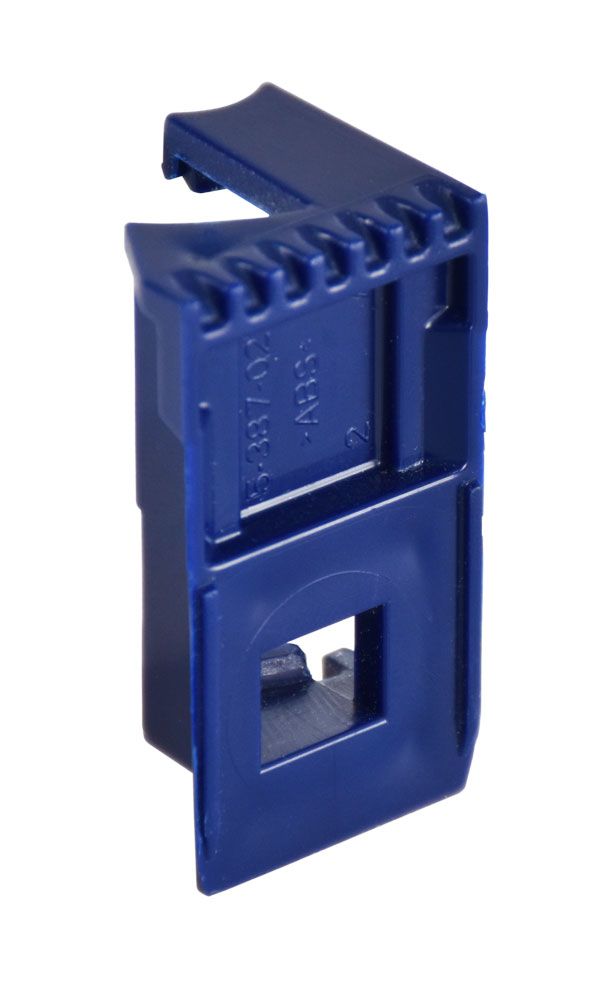

| 636857 | Fill valve bracket set (from 04/2014) |
|
| 366307 | Set flush elbow |
|

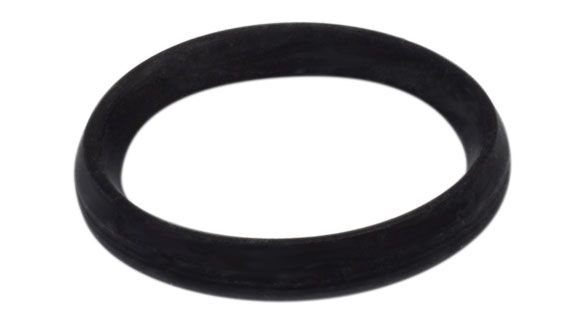

| 229118 | Flush elbow seal set |
|
