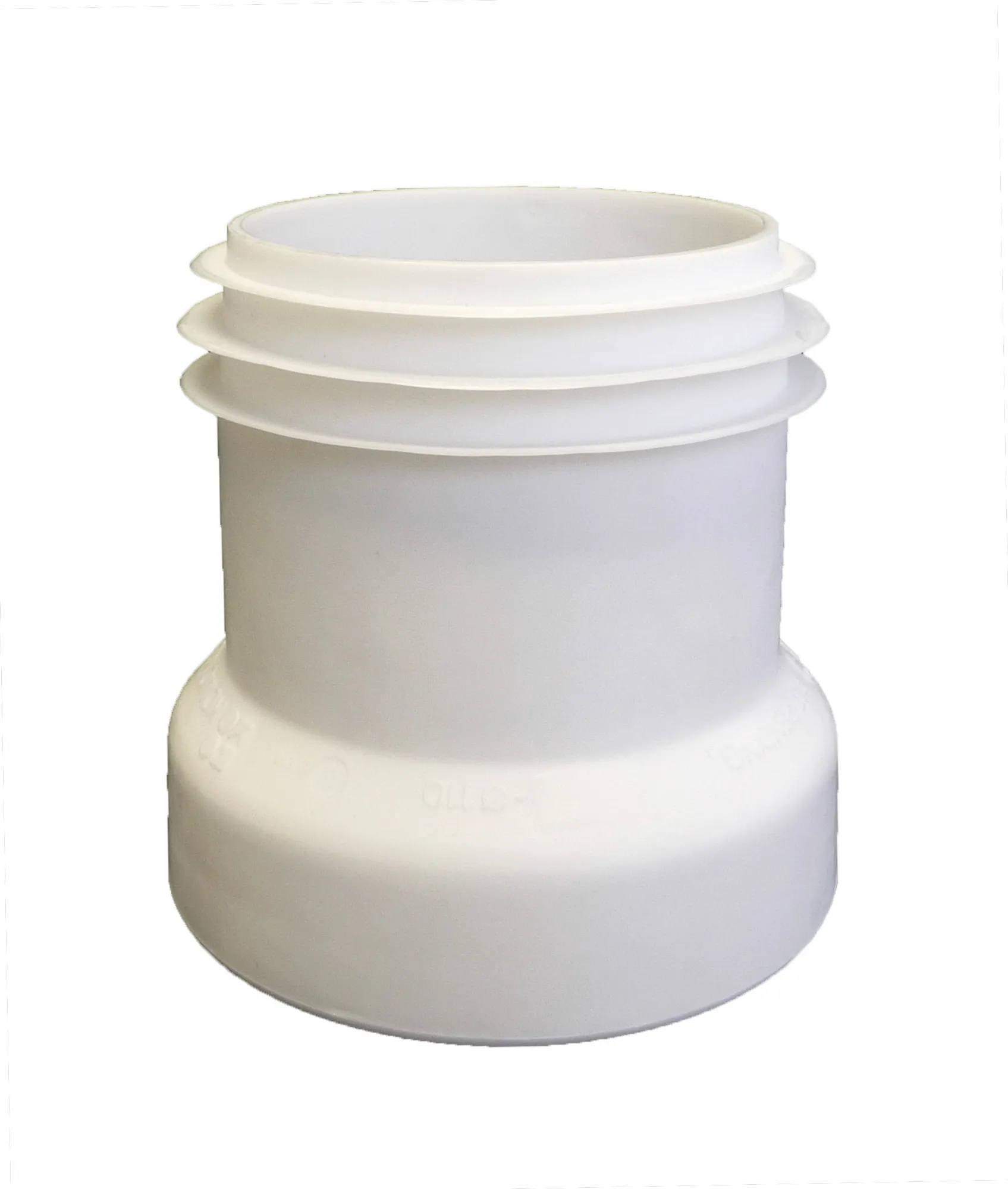

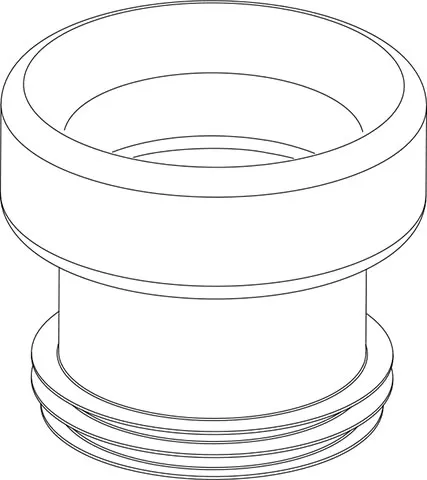

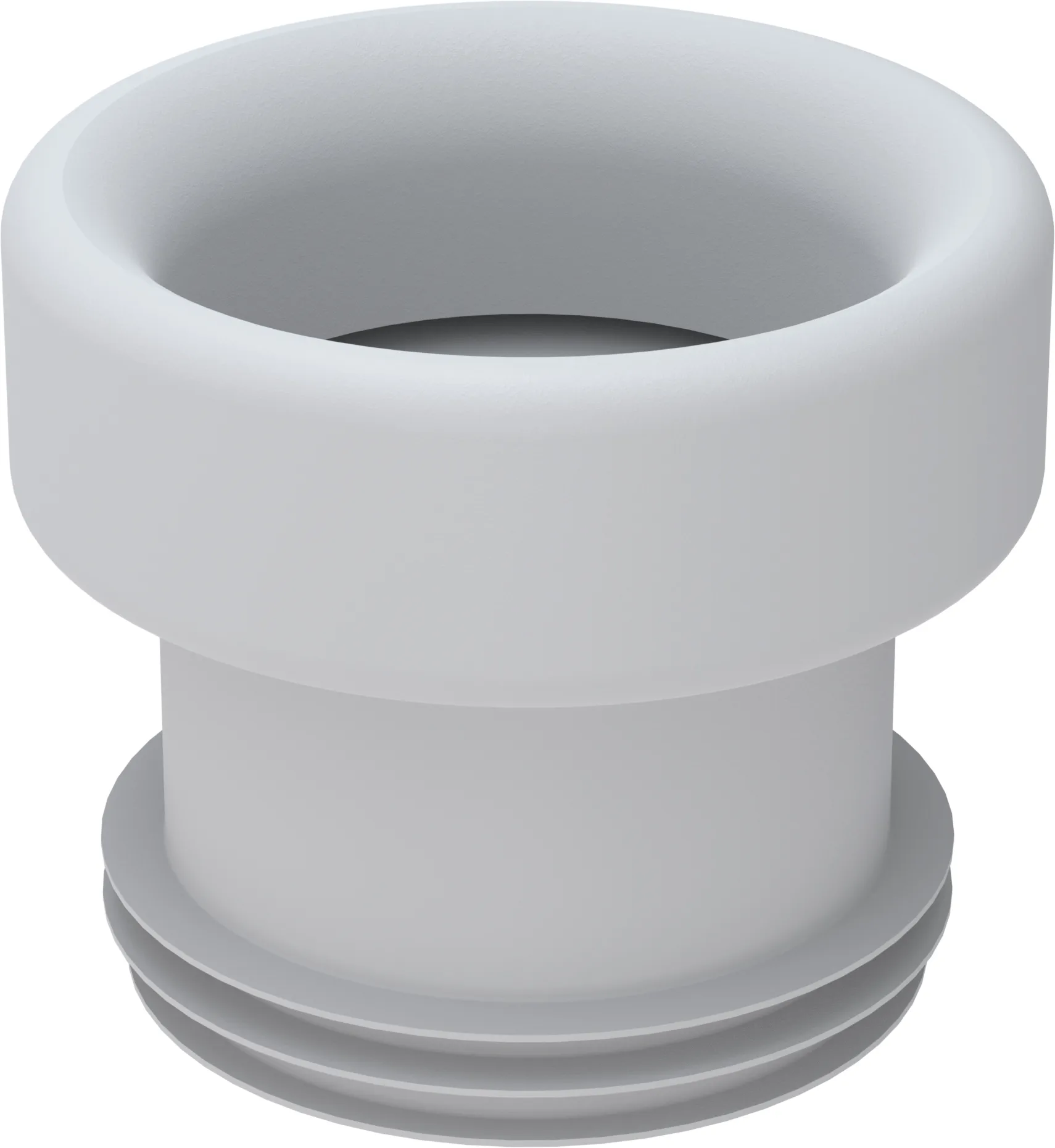

Connector model No. 6 W
Product number:
8040301006
EAN:
8711778012486
- Straight
- For pipe Ø 110 mm
- L = 117 mm
- KOMO certified
- Colour: white
Angle: | 0 ° |
---|---|
Colour: | White |
Eccentric: | No |
KOMO certified: | Yes |
Length: | 117 mm |
Material: | Plastic |
Model: | Straight |
Number of extra connections: | 0 |
Offset: | 0 mm |
Outer connection diameter: | 96 to 110 mm |
Outer pipe diameter connection 1: | 100 mm , 110 mm |
Pitch measure: | 68.5 mm |
Warranty: | 10 years |
With de-aeration: | No |
With non-return valve: | No |
