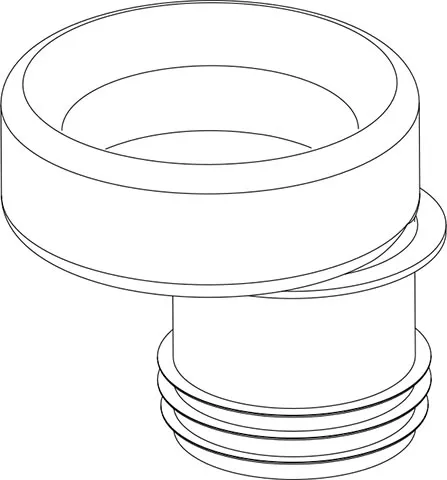

Connector model No. 8 W
Product number:
8040301008
EAN:
8711778012509
- With 23 mm off-centre
- For pipe Ø 100 mm
- L = 119 mm
- Colour: white
Angle: | 0 ° |
---|---|
Colour: | White |
Eccentric: | Yes |
KOMO certified: | No |
Length: | 119 mm |
Material: | Plastic |
Model: | Straight |
Number of extra connections: | 0 |
Offset: | 23 mm |
Outer connection diameter: | 89 to 96 mm , 89 to 98 mm |
Outer pipe diameter connection 1: | 100 mm |
Pitch measure: | 68.5 mm |
Warranty: | 10 years |
With de-aeration: | No |
With non-return valve: | No |
