EXPOSED CISTERN CORAL DUO, white
Product number:
600030
EAN:
3838912026927
- Exposed flushing cistern
- Wall installation
- Suitable for low installation
- Dual flushing
- 3/6 l flushing volume
- Possibility to connect the water supply: left, right or rear centre
- Insulated against condensation
- Colour: white
- Special features
- Flushing system on the right side
- Silent mechanical filling valve
- Flexible connecting tube
- Flushing pipe 270x220 mm, Ø 50/44 mm
- Parts for the installation of the flushing cistern are supplied
- Installation template
| Adjustable flushing water quantity: | Yes |
|---|---|
| Colour: | White |
| Depth: | 140 mm |
| Filling valve noise class: | Group I, |
| Flushing: | Two quantities |
| Flushing water quantity: | 3 to 9 l |
| Height: | 335 mm |
| KIWA certified: | Yes |
| Material flushing reservoir: | Plastic |
| Material quality: | Other |
| Operation: | Push button |
| Outer pipe diameter reservoir side flushing bend: | 50 mm |
| Outer pipe diameter tap water: | 16.66 mm |
| Reservoir position: | Low |
| Series: | CORAL |
| Size of tap water connection: | 3/8 inch |
| Sound class according to EN ISO 3822: | Group I, |
| Suitable for close coupled toilet: | No |
| Suitable for electrical operation: | No |
| Suitable for manual operation: | Yes |
| Suitable for pneumatic operation: | No |
| Tap water connection: | External thread |
| Warranty: | 10 years |
| Water connection, bottom: | No |
| Water connection, left: | Yes |
| Water connection, rear: | Yes |
| Water connection, right: | Yes |
| Water connection, top: | No |
| Width: | 435 mm |
| With anti-condensation insulation: | Yes |
| With flushing bend: | Yes |
| With stop valve: | No |
- Techical drawing 600030
- Instructions 600030
Techical drawing
Instructions
| Product number: | Description | Image |
|---|---|---|

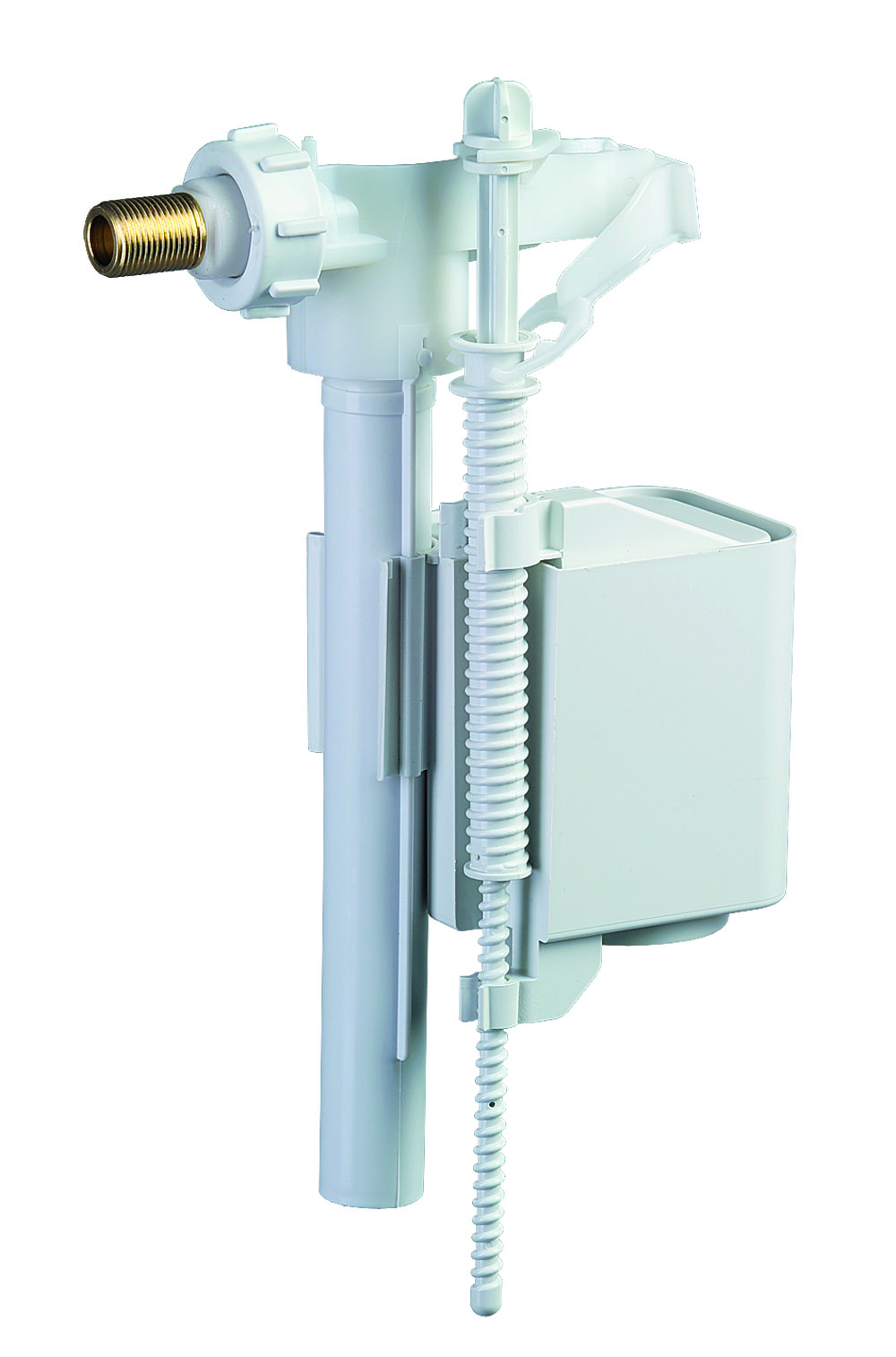

| 229109 | FILL VALVE HDV G 3/8 BRASS |
|
| 635729 | FLUSH VALVE, CISTERN CORAL DUO |
|
| 201742 | FLUSHING CISTERN OUTLET SEAL SET Ø 50/60 |
|
| 195774 | PIPE FOR LOW INSTALLATION FLUSHING CISTERN SET |
|
| 196907 | TOILET BOWL SEAL SET Ø 44/55 |
|
| 195191 | HOLDER SET (SCREW AND INSERT) |
|
| 635726 | BUTTON SET, CISTERN CORAL DUO, white |
|
| 635728 | COVER LID, CISTERNS CORAL / CORAL DUO, white |
|
