EXPOSED CISTERN CRYSTAL DUO, white
Product number:
7030423800
EAN:
8711778216433
- Exposed flushing cistern
- Wall installation
- Suitable for low installation
- Dual flushing
- 3/6 l flushing volume
- Possibility to connect the water supply: left, right or rear centre
- Insulated against condensation
- Colour: white
- Special features
- Flushing system in the centre
- Silent hydraulic filling valve
- Flexible connecting tube
- Flushing pipe 270 x 220 mm, Ø 50/44 mm
- Supplied parts for installation of the flushing cistern
Adjustable flushing water quantity: | Yes |
---|---|
Colour: | White |
Depth: | 130 mm |
Filling valve noise class: | Group I, |
Flushing: | Two quantities |
Flushing water quantity: | 3 to 9 l |
Height: | 431 mm |
KIWA certified: | Yes |
Material flushing reservoir: | Plastic |
Material quality: | Other |
Operation: | Push button |
Outer pipe diameter reservoir side flushing bend: | 50 mm |
Outer pipe diameter tap water: | 16.66 mm |
Reservoir position: | Low |
Series: | CRYSTAL |
Size of tap water connection: | 3/8 inch |
Sound class according to EN ISO 3822: | Group I, |
Suitable for close coupled toilet: | No |
Suitable for electrical operation: | No |
Suitable for manual operation: | Yes |
Suitable for pneumatic operation: | No |
Tap water connection: | External thread |
Warranty: | 10 years |
Water connection, bottom: | No |
Water connection, left: | Yes |
Water connection, rear: | Yes |
Water connection, right: | Yes |
Water connection, top: | No |
Width: | 453 mm |
With anti-condensation insulation: | Yes |
With flushing bend: | Yes |
With stop valve: | No |
- Techical drawing 7030423800
- Instructions 7030423800
Techical drawing
Instructions
Product number: | Description | Image |
---|---|---|
8035390111 | RUBBER GASKET for DF 3/6 LITRE |
![]() |

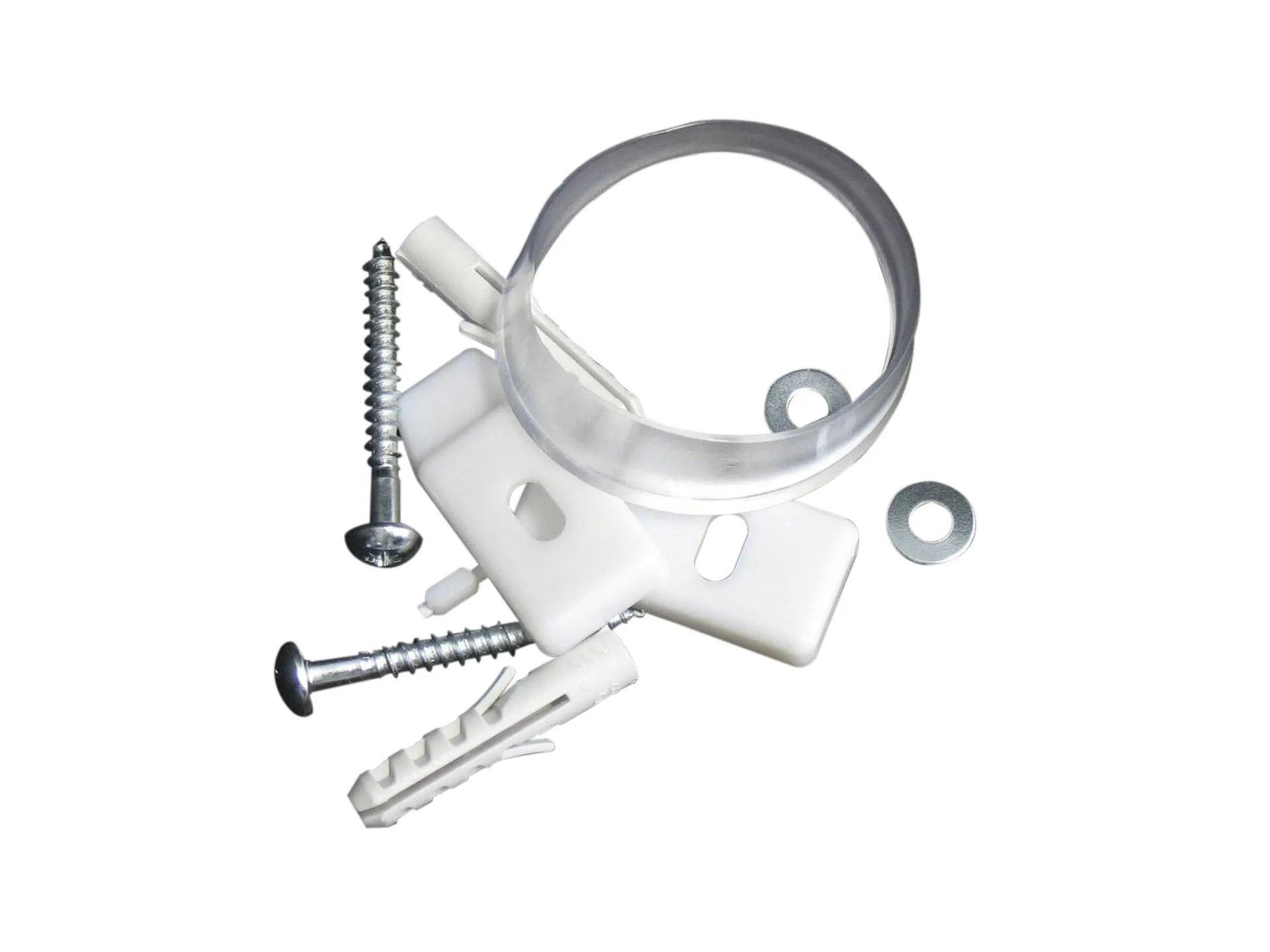

8050800078 | HOLDER (SCREW AND INSERT) WITH FLUSH PIPE GASKET |
![]() |

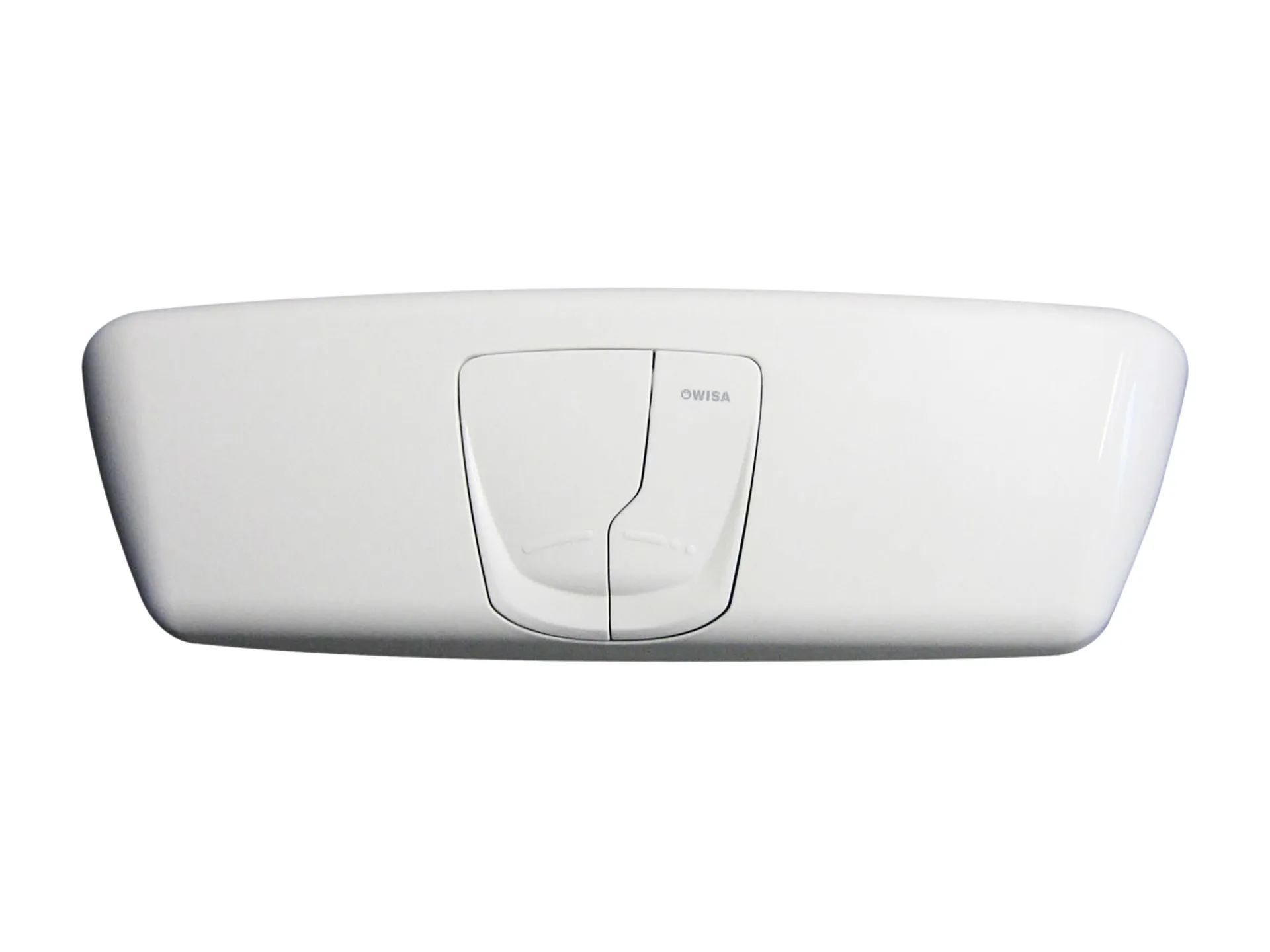

8050410901 | CISTERN COVER WITH FUNCTION BUTTONS, white |
![]() |
8050882382 | CLOSING CUP, white |
![]() |

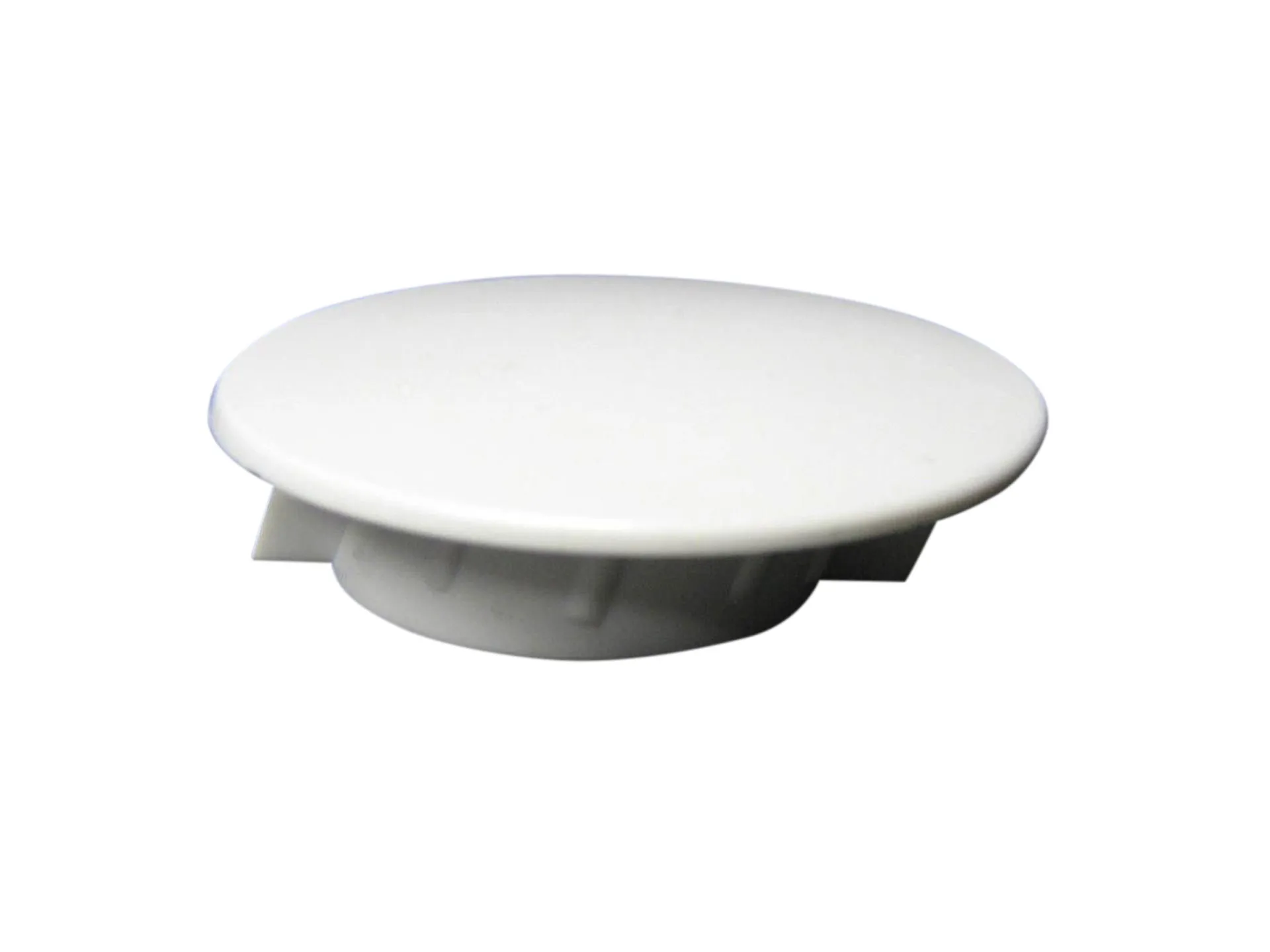

8050883750 | CLOSING CUP, white |
![]() |

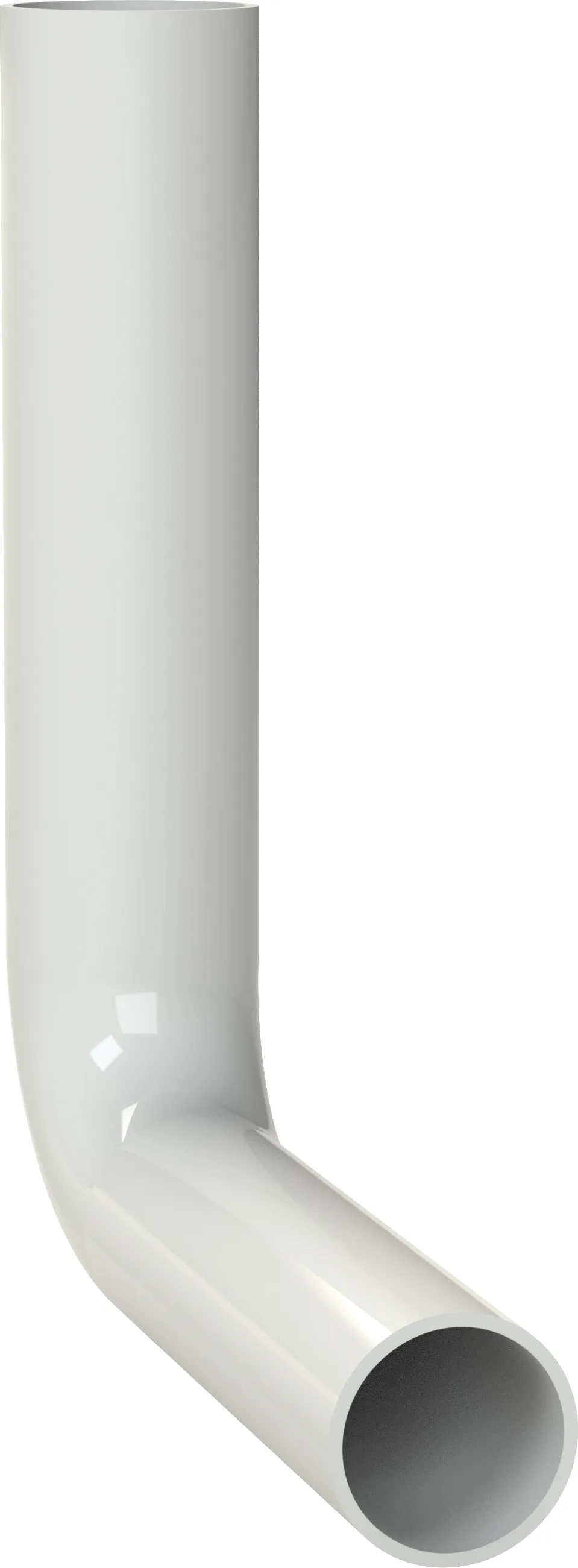

8050110101 | FLUSH PIPE ELBOW 230 x 210 mm, white |
![]() |

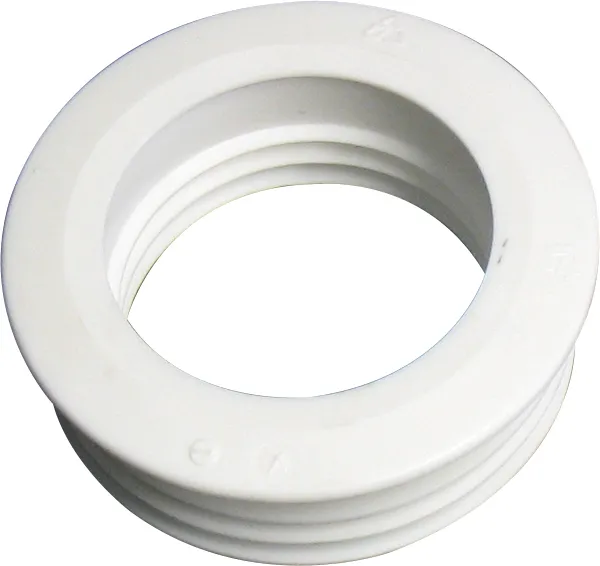

8050985530 | TOILET BOWL GASKET |
![]() |

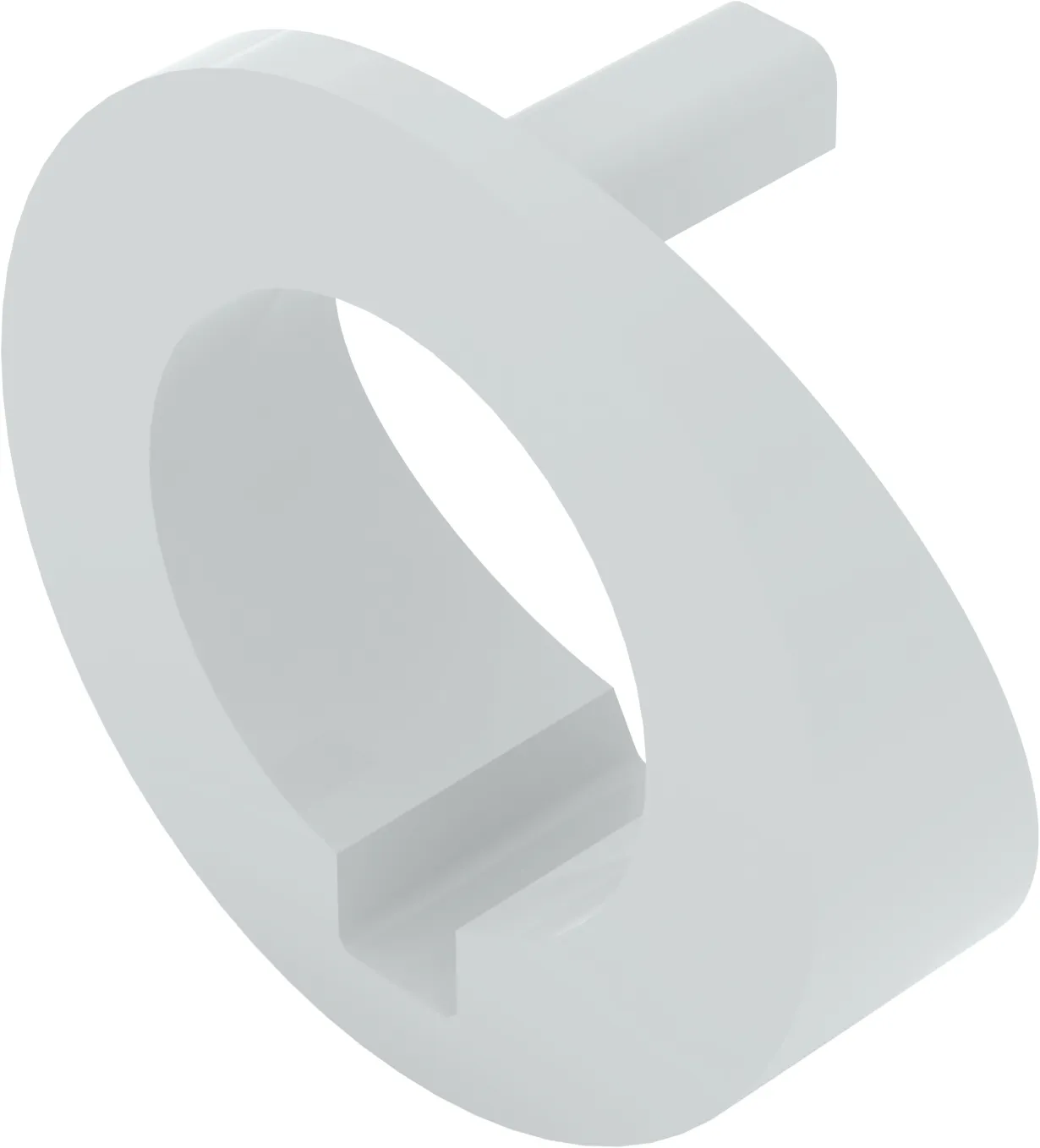

8050883620 | FIXATION RING, white |
![]() |

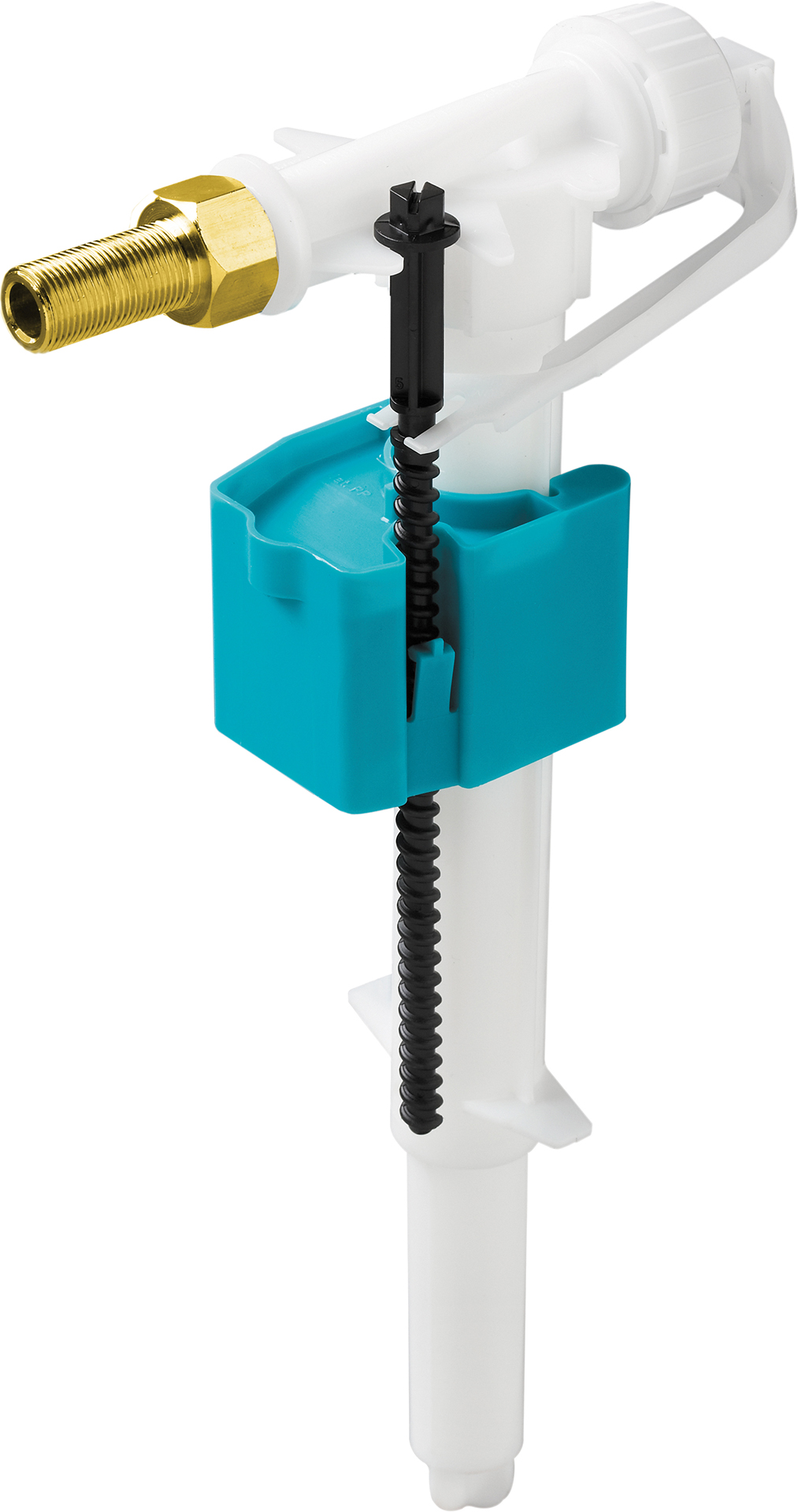

8035432795 | FILL VALVE HVK G 3/8 BRASS SHANK |
![]() |

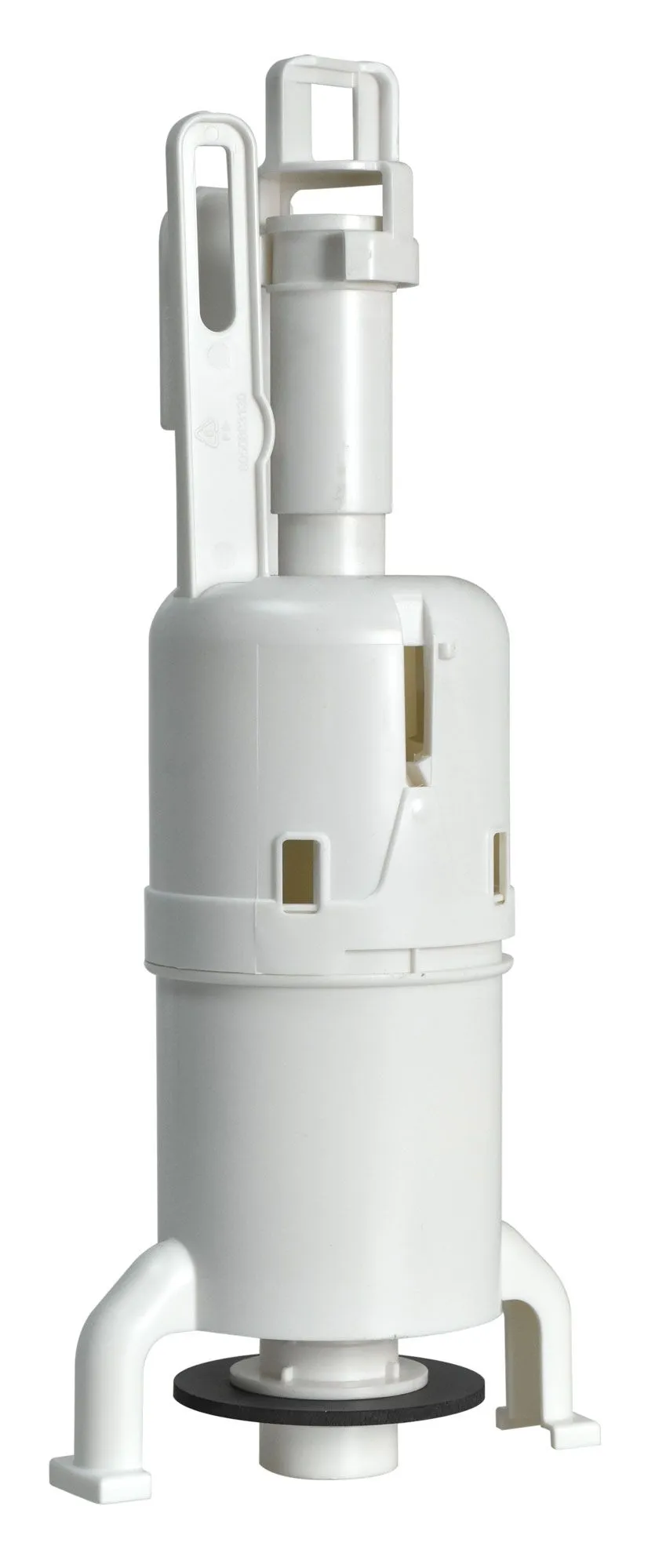

8050801531 | FLUSH VALVE WITH GASKET |
![]() |

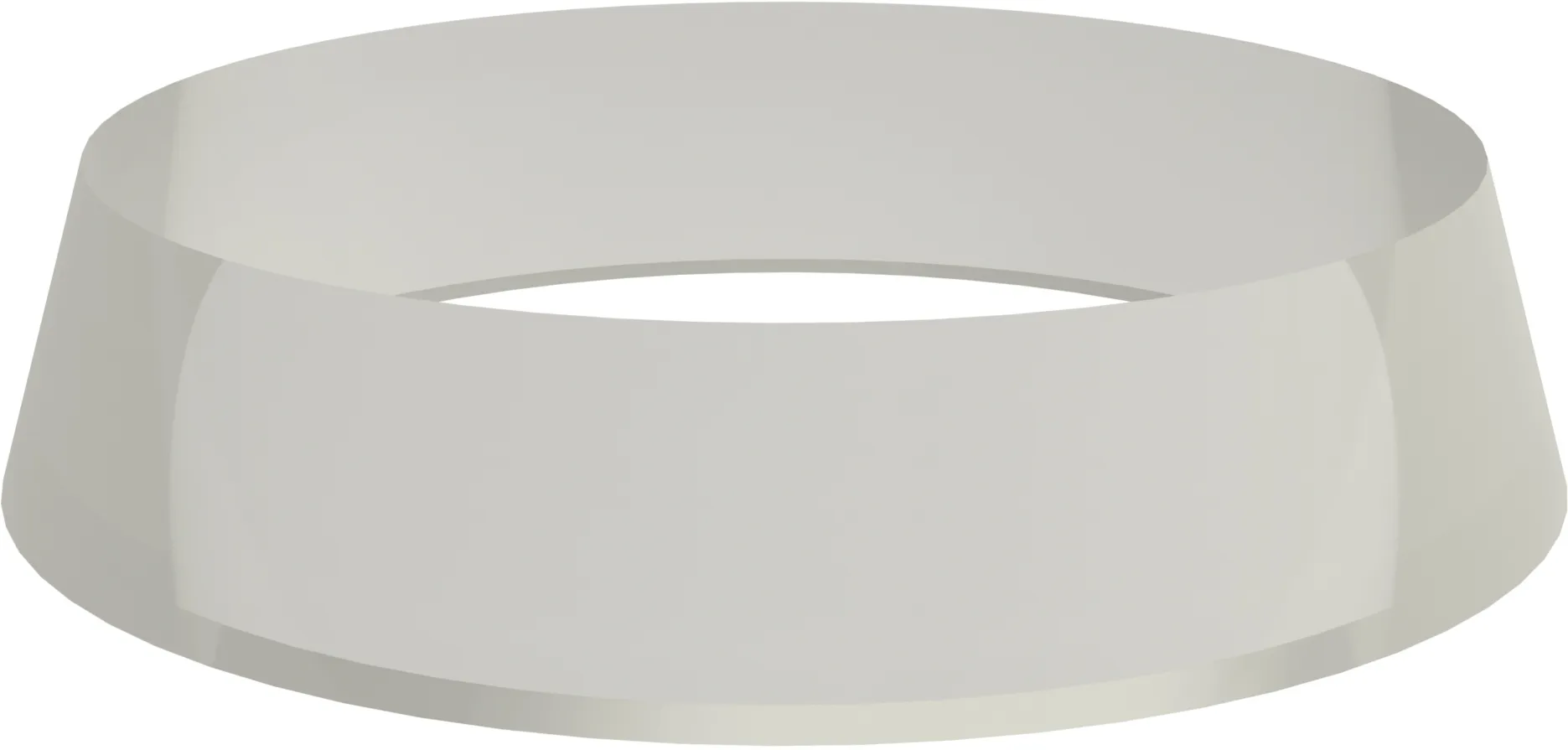

8050882450 | FLUSHING CISTERN OUTLET SEAL |
![]() |

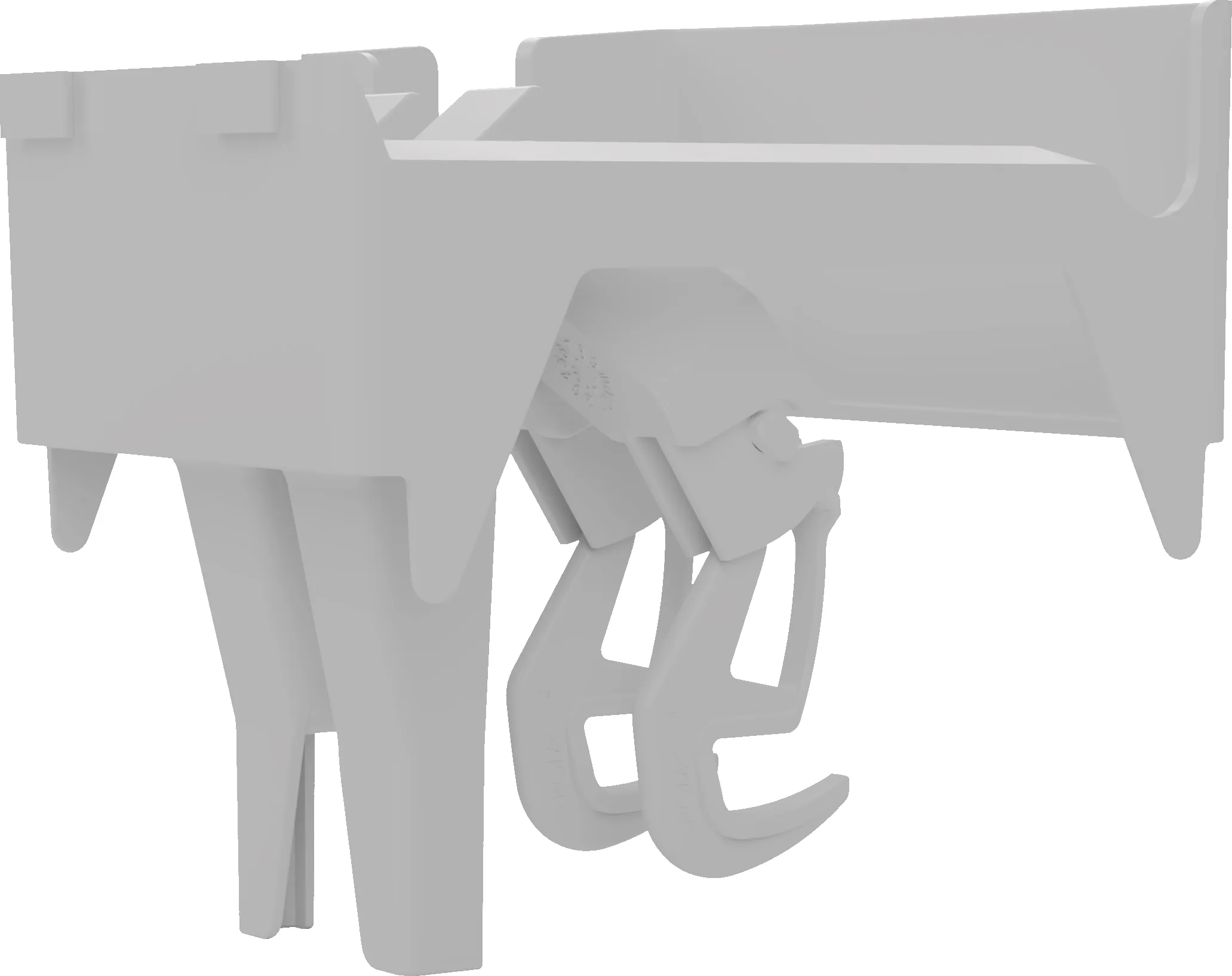

8050390127 | SUPPORT |
![]() |

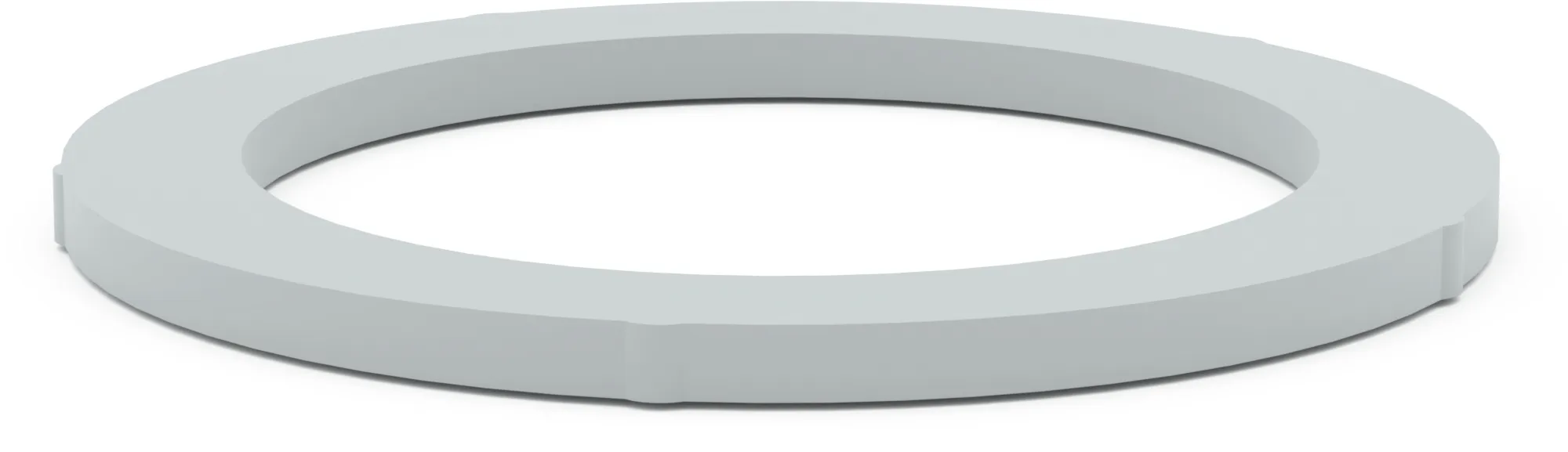

8050887196 | FLOW REDUCER |
![]() |

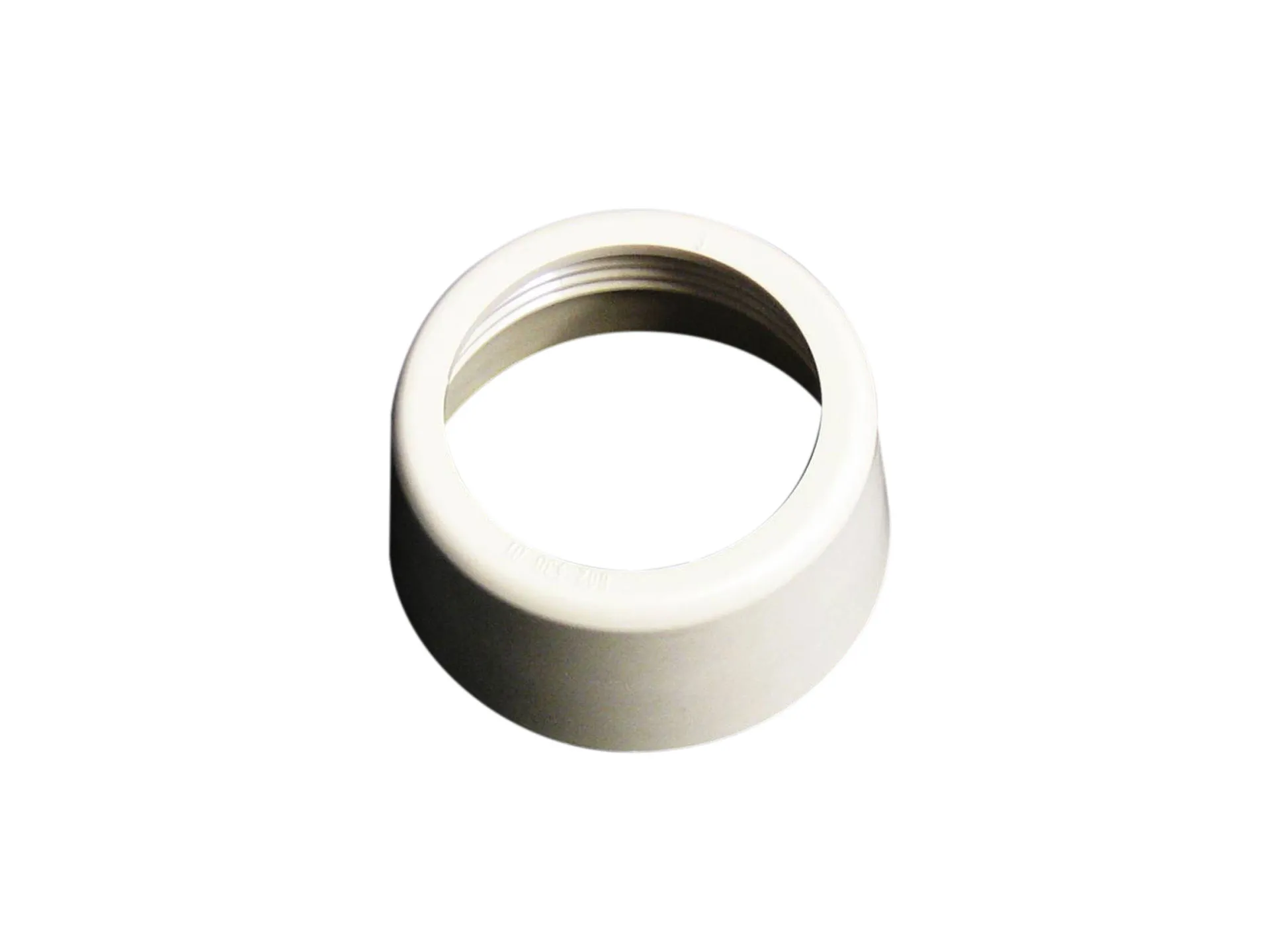

8050882430 | NUT FOR FLUSH PIPE, white |
![]() |
674830 | PIPE FOR LOW INSTALLATION FLUSHING CISTERN SET, 325 x 220 mm |
![]() |

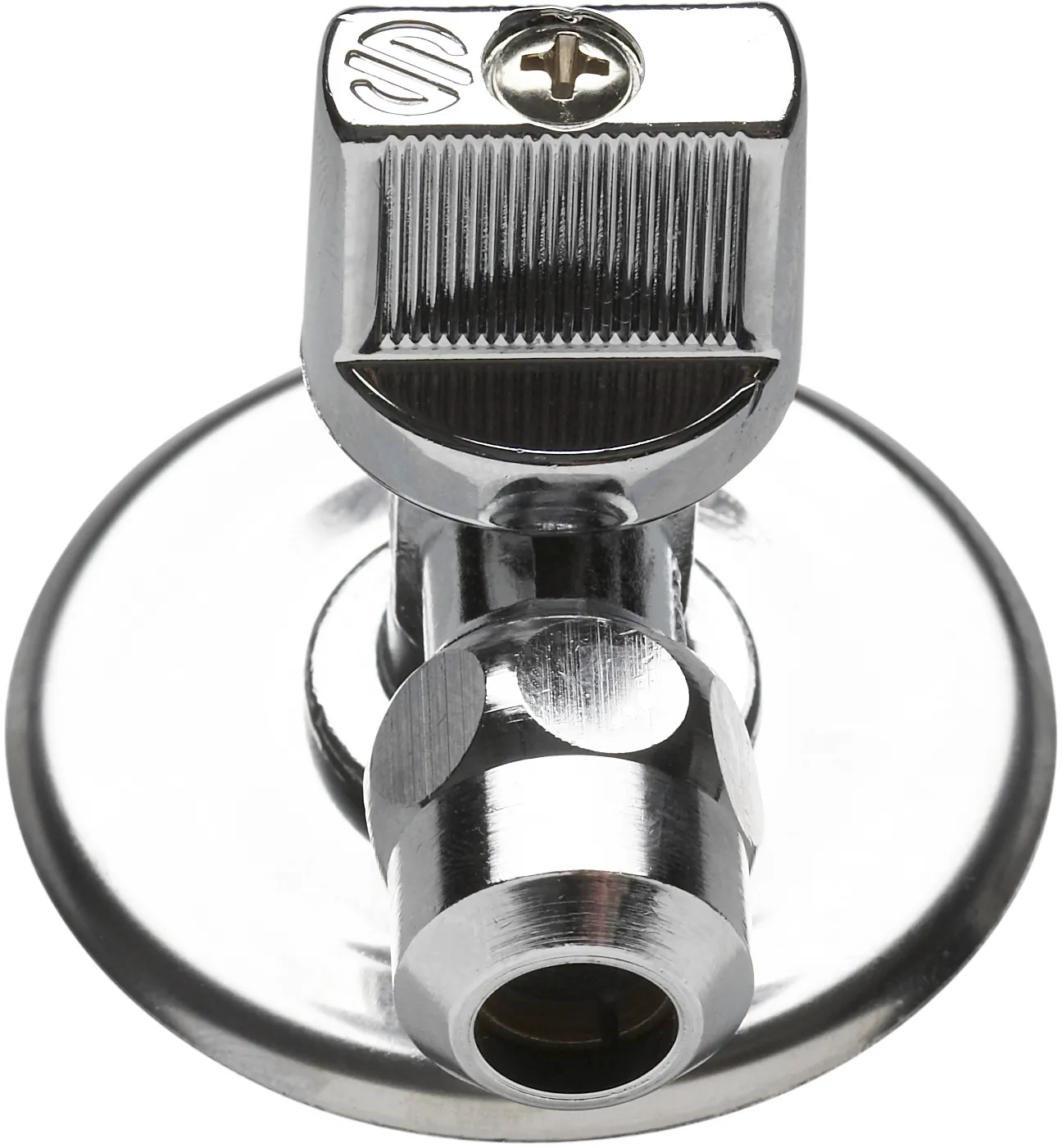

1403987112 | STOP VALVE G 1/2 |
![]() |

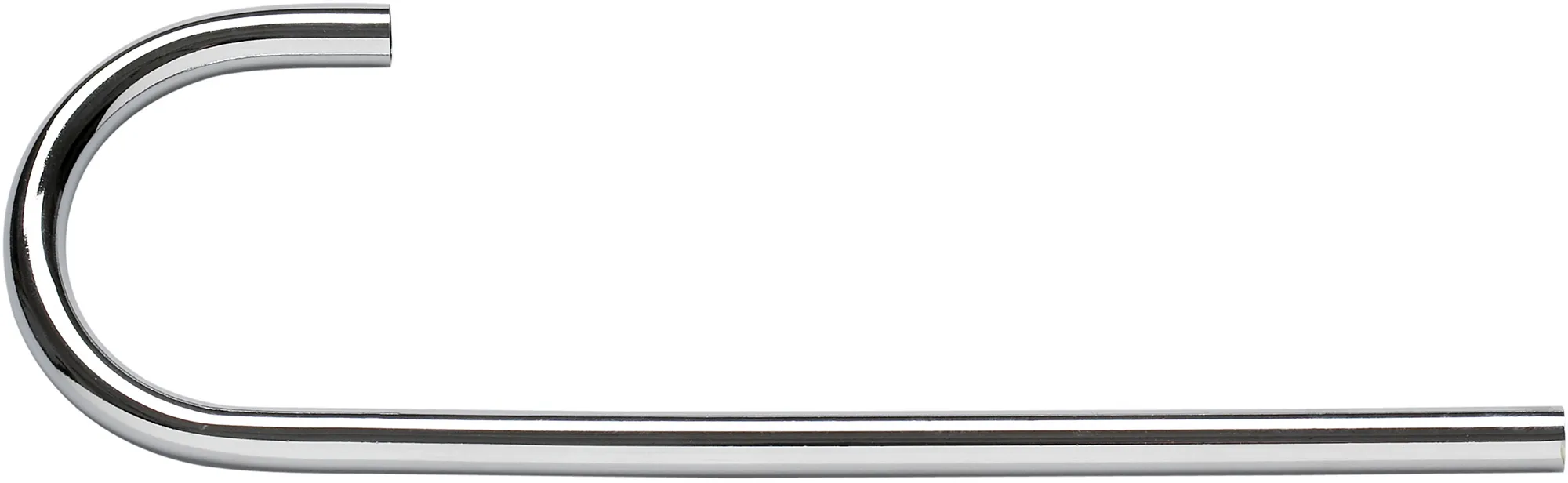

1405987118 | COPPER CONNECTION PIPE |
![]() |
