EXPOSED CISTERN CRYSTAL, white
Product number:
7030424100
EAN:
8711778216426
- Exposed flushing cistern
- Wall installation
- Suitable for low installation
- Start-Stop flushing
- 6(6–9) l flushing volume
- Possibility to connect the water supply: left, right or rear centre
- Insulated against condensation
- Colour: white
- Flushing system in the centre
- Silent hydraulic filling valve
- Flexible connecting tube
- Flushing pipe 270x220 mm, Ø 50/44 mm
- Supplied parts for installation of the flushing cistern
| Adjustable flushing water quantity: | Yes |
|---|---|
| Colour: | White |
| Depth: | 130 mm |
| Filling valve noise class: | Group I, |
| Flushing: | Interruptible |
| Flushing water quantity: | 6 to 9 l |
| Height: | 431 mm |
| KIWA certified: | Yes |
| Material flushing reservoir: | Plastic |
| Material quality: | Other |
| Operation: | Push button |
| Outer pipe diameter reservoir side flushing bend: | 50 mm |
| Outer pipe diameter tap water: | 16.66 mm |
| Reservoir position: | Low |
| Series: | CRYSTAL |
| Size of tap water connection: | 3/8 inch |
| Sound class according to EN ISO 3822: | Group I, |
| Suitable for close coupled toilet: | No |
| Suitable for electrical operation: | No |
| Suitable for manual operation: | Yes |
| Suitable for pneumatic operation: | No |
| Tap water connection: | External thread |
| Warranty: | 10 years |
| Water connection, bottom: | No |
| Water connection, left: | Yes |
| Water connection, rear: | Yes |
| Water connection, right: | Yes |
| Water connection, top: | No |
| Width: | 453 mm |
| With anti-condensation insulation: | Yes |
| With flushing bend: | Yes |
| With stop valve: | No |
- Techical drawing 7030424100
- Instructions 7030424100
Techical drawing
Instructions
| Product number: | Description | Image |
|---|---|---|

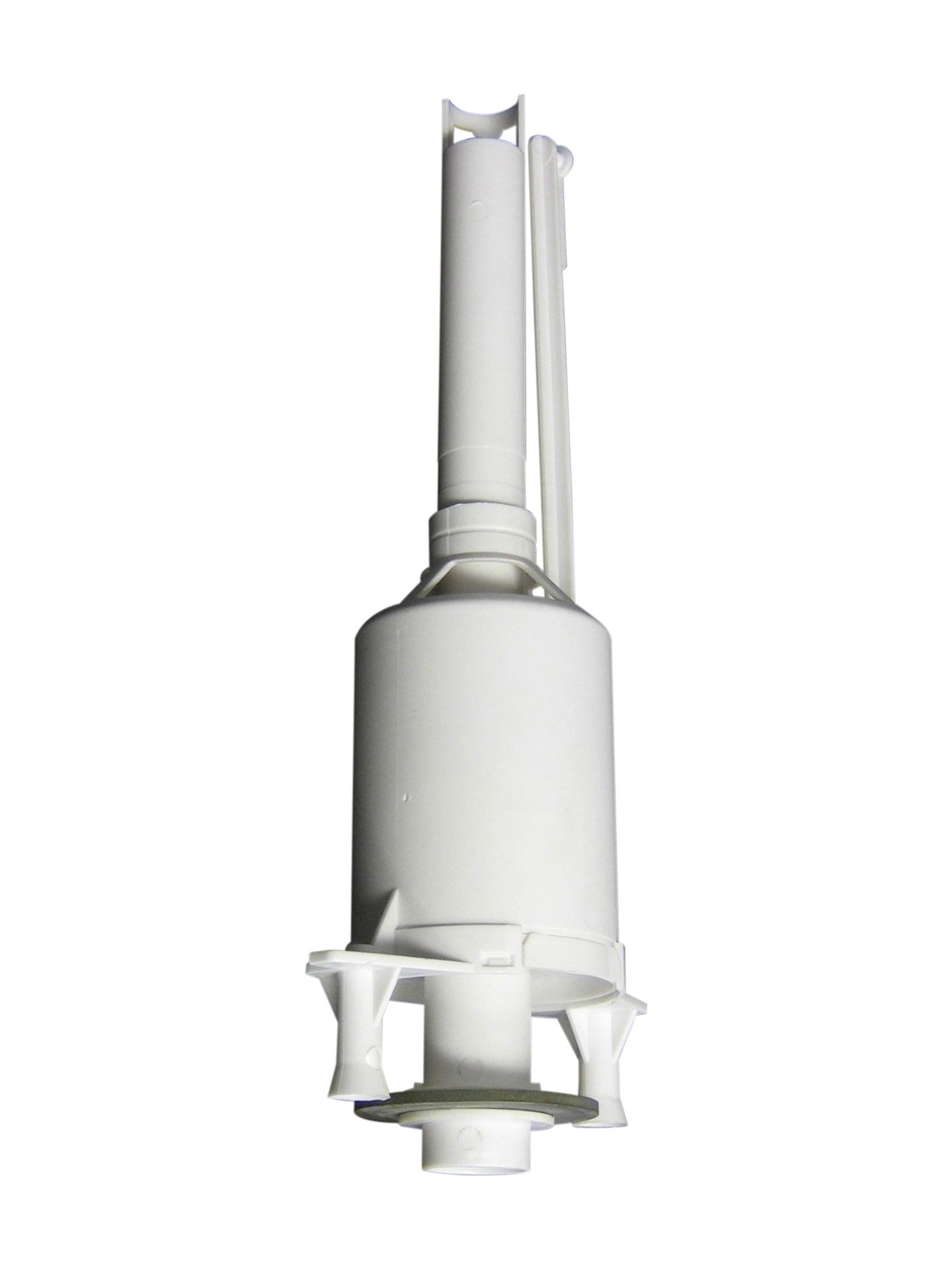

| 8050800507 | FLUSH VALVE WITH A RUBBER GASKET |
|
| 1411988440 | FLUSH VALVE GASKET, RUBBER, 65 mm, hole 28,5 mm, black |
|
| 8050882450 | FLUSHING CISTERN OUTLET SEAL |
|

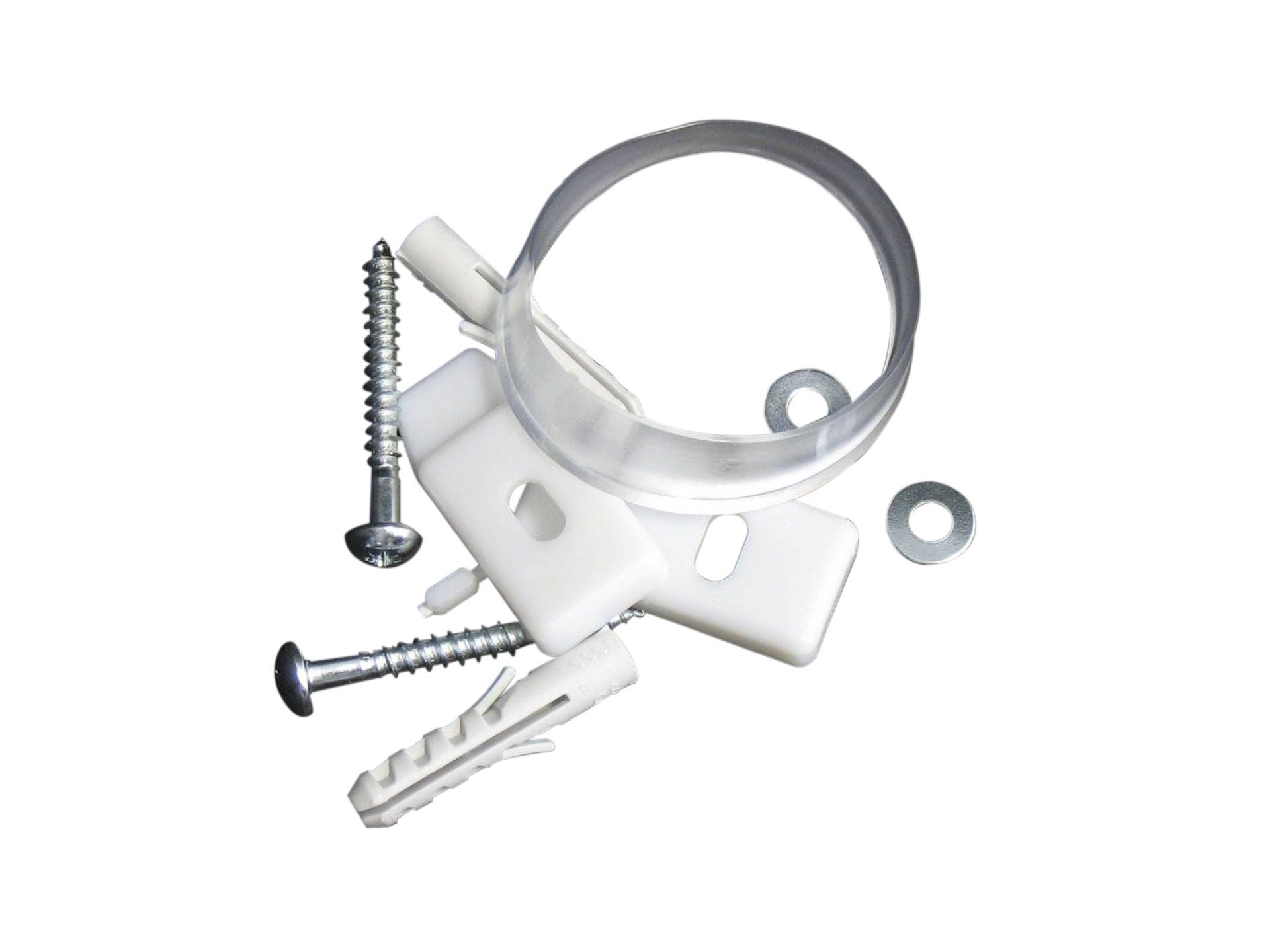

| 8050800078 | HOLDER (SCREW AND INSERT) WITH FLUSH PIPE GASKET |
|

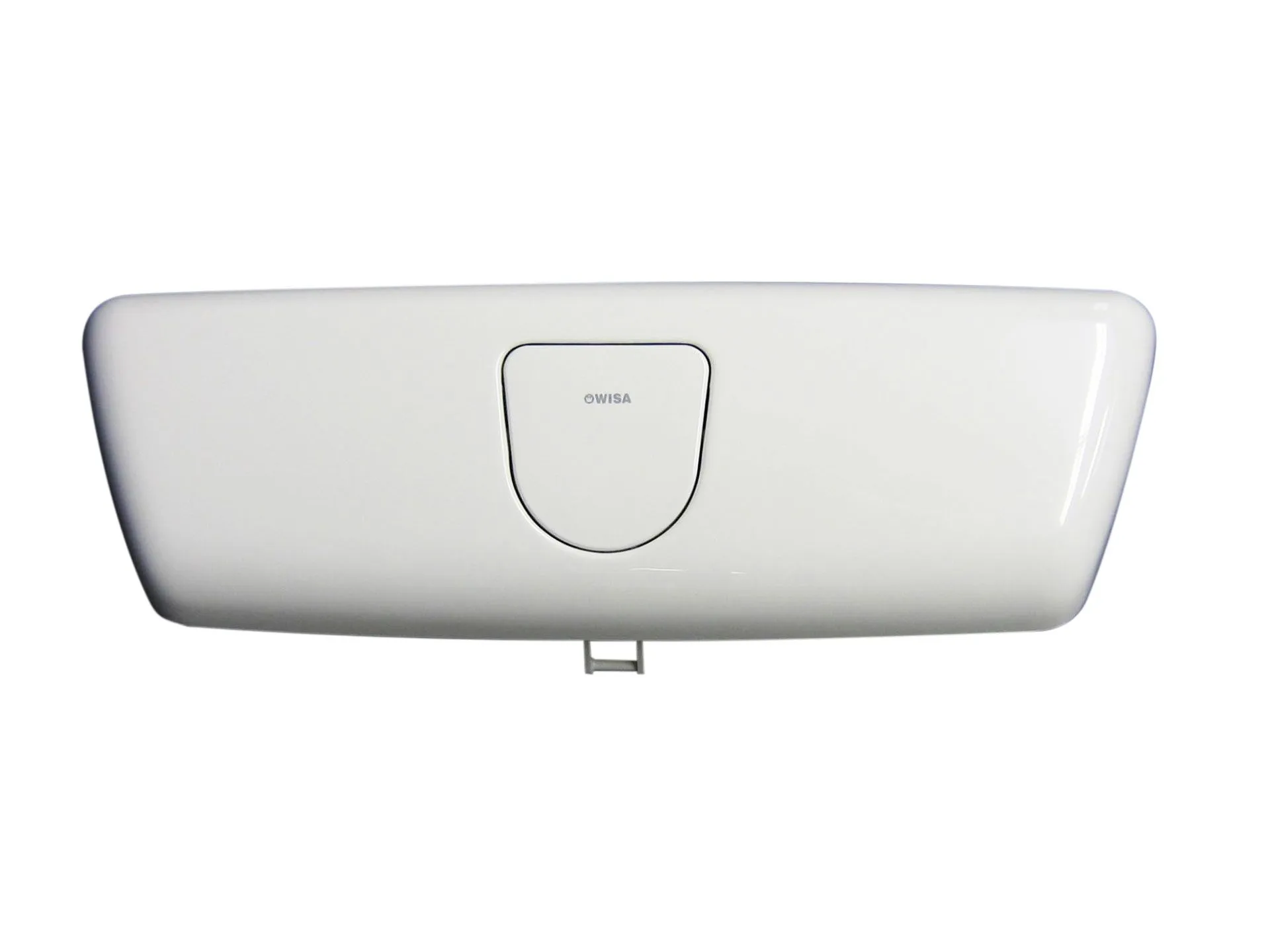

| 8050410801 | CISTERN COVER WITH A FUNCTION BUTTON, white |
|

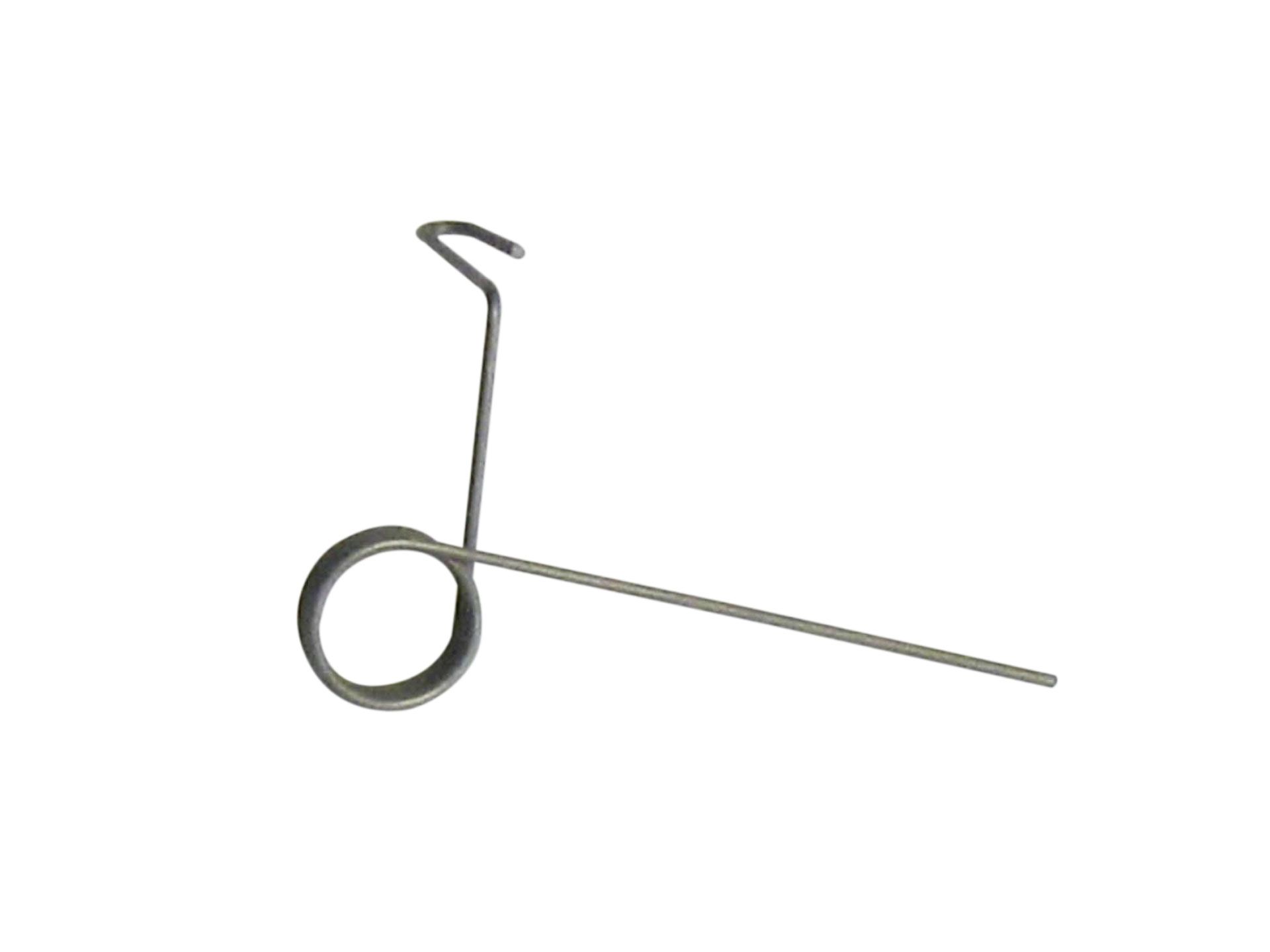

| 1401980620 | BUTTON SPRING |
|

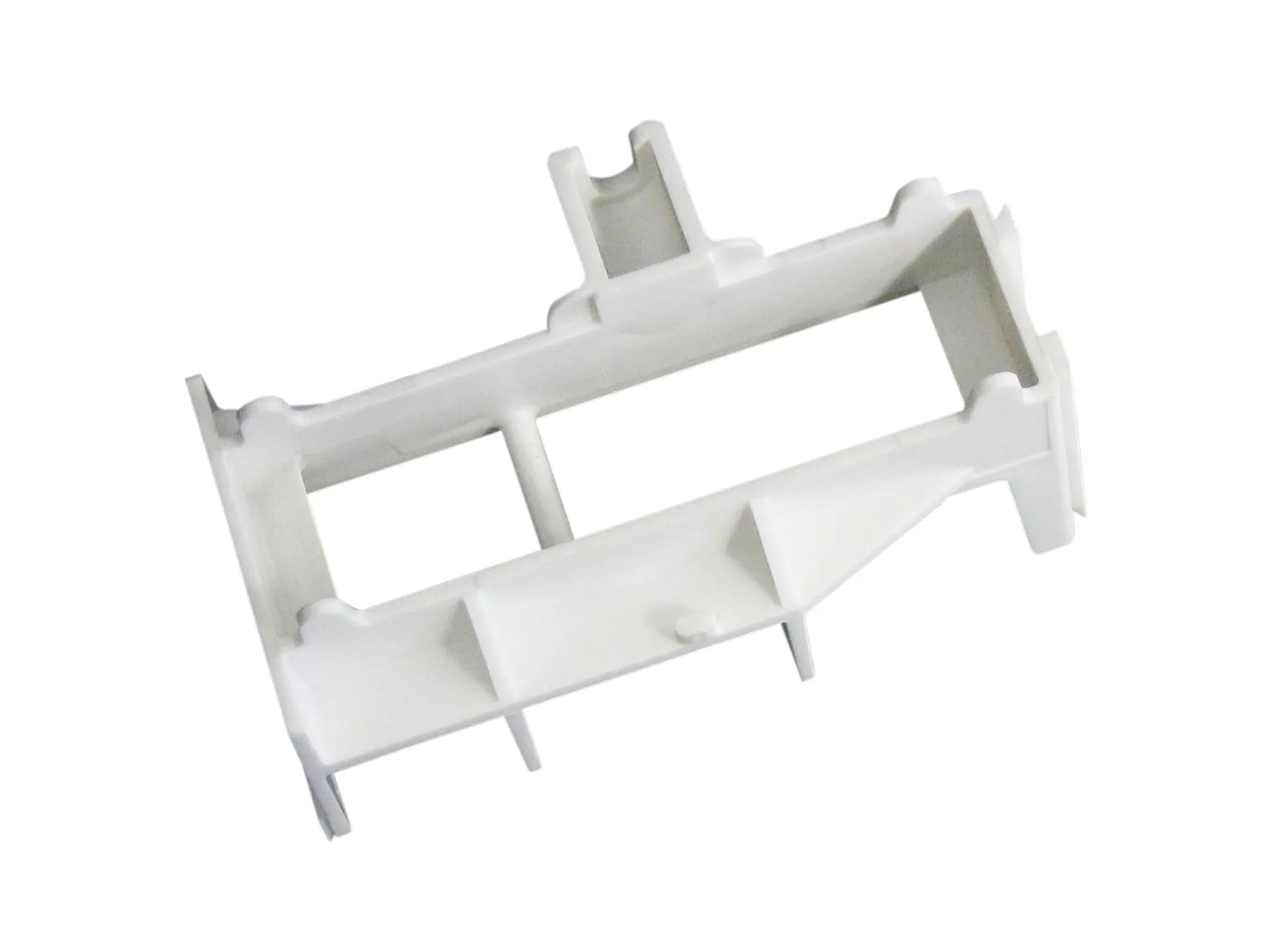

| 8050883652 | BRIDGE |
|

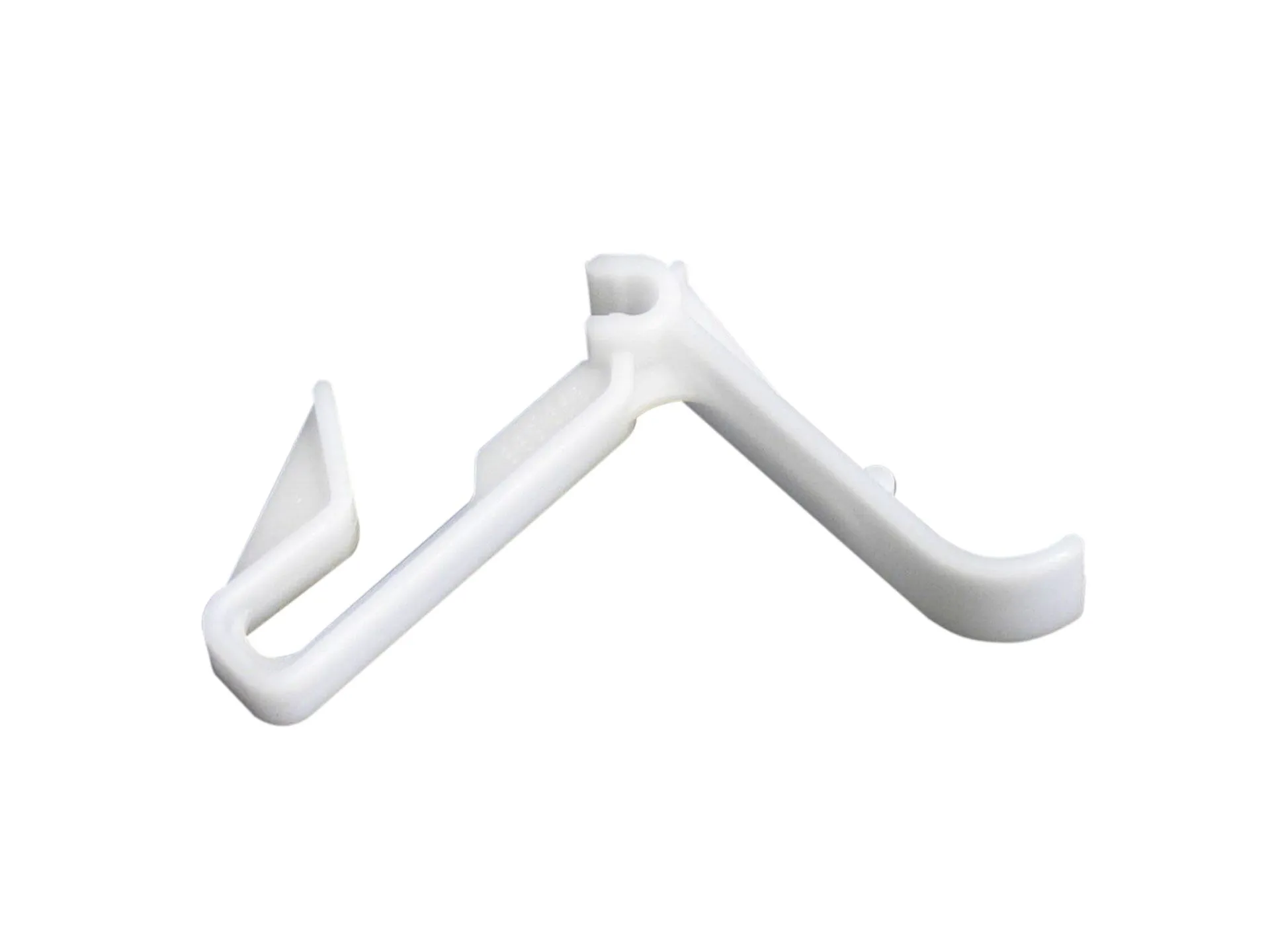

| 8050883653 | LEVER |
|
| 8050882382 | CLOSING CUP, white |
|

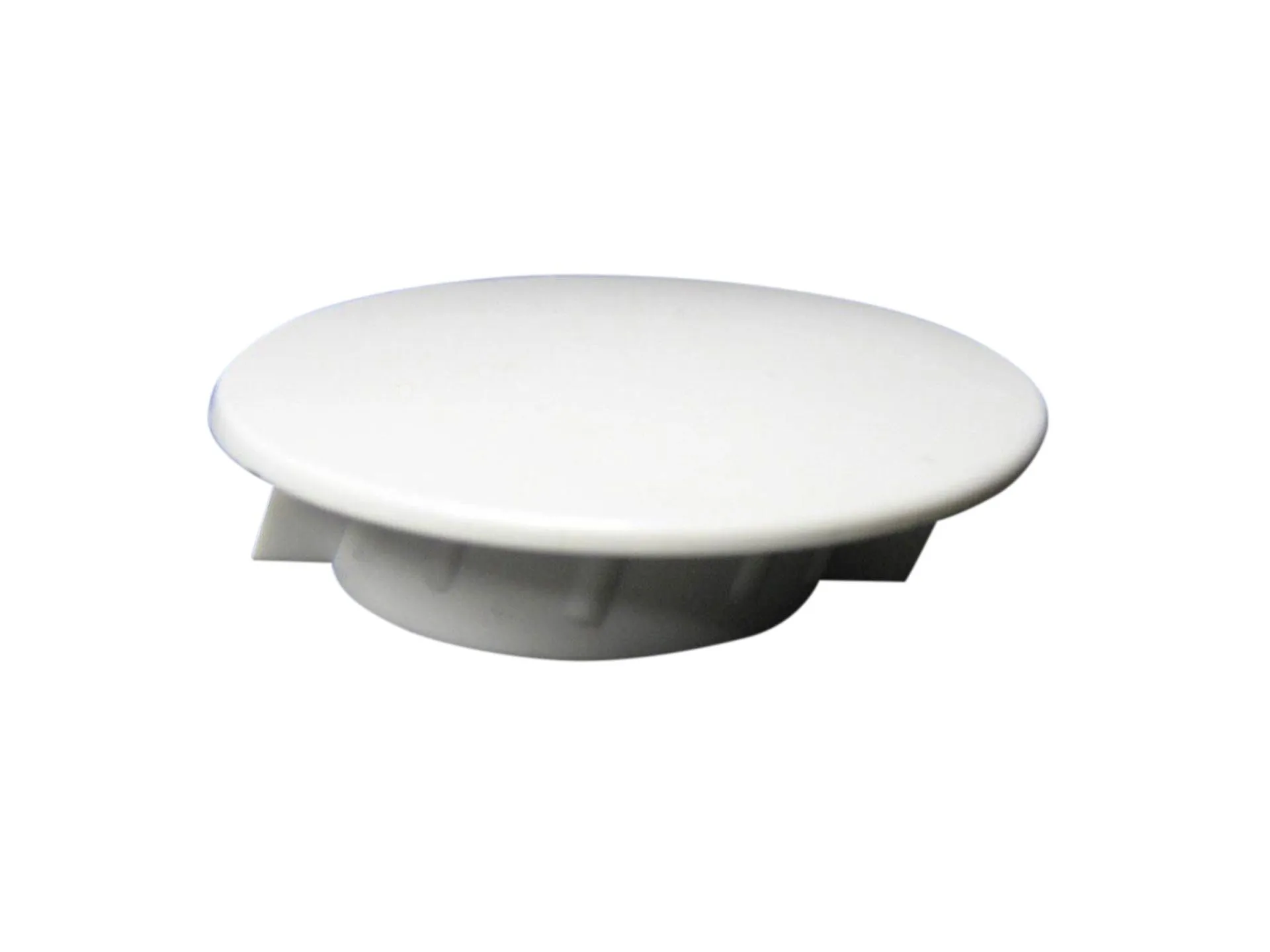

| 8050883750 | CLOSING CUP, white |
|

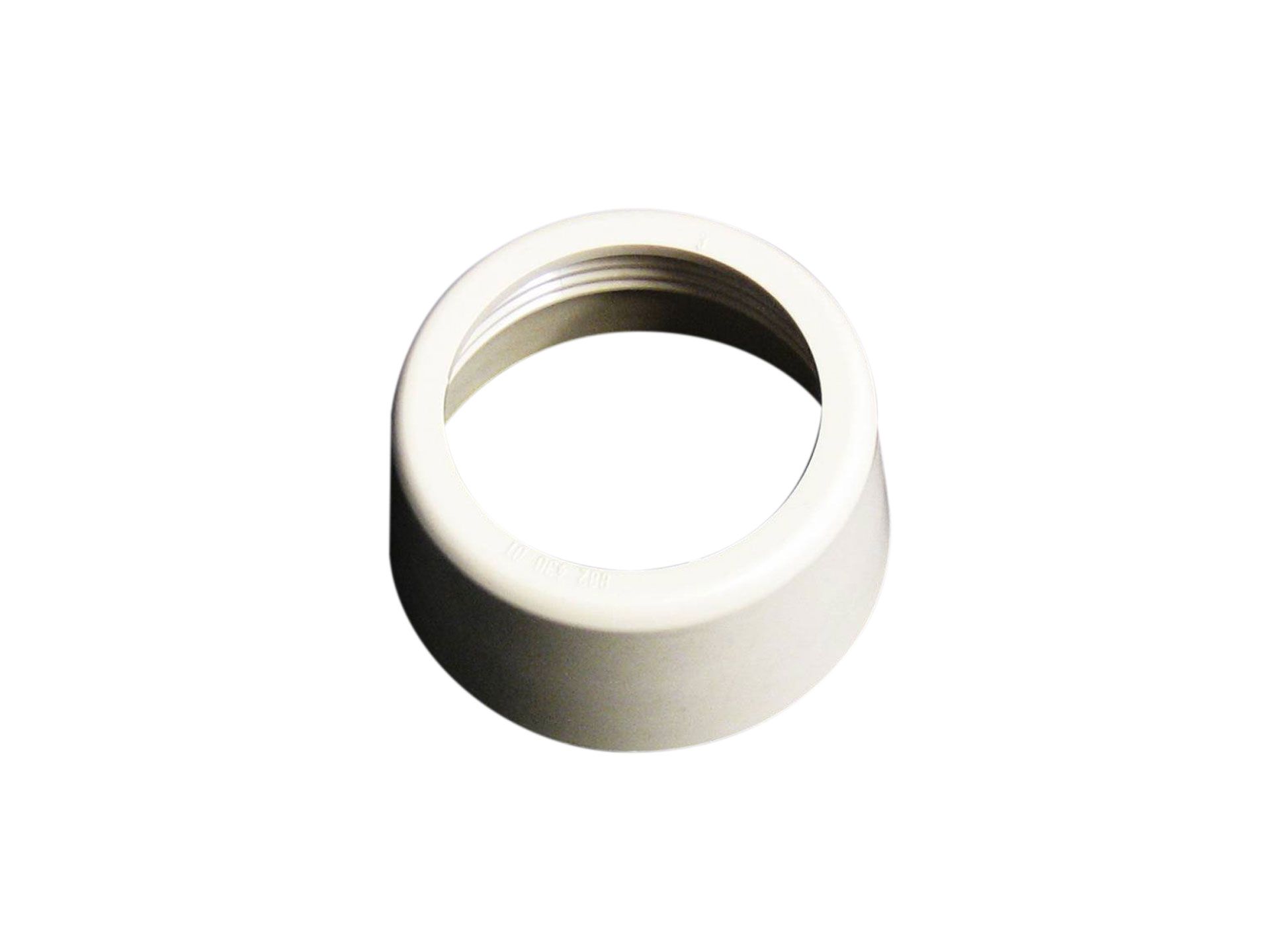

| 8050882430 | NUT FOR FLUSH PIPE, white |
|
| 8050110101 | FLUSH PIPE ELBOW 230 x 210 mm, white |
|
| 8050985530 | TOILET BOWL GASKET |
|
| 8050883620 | FIXATION RING, white |
|

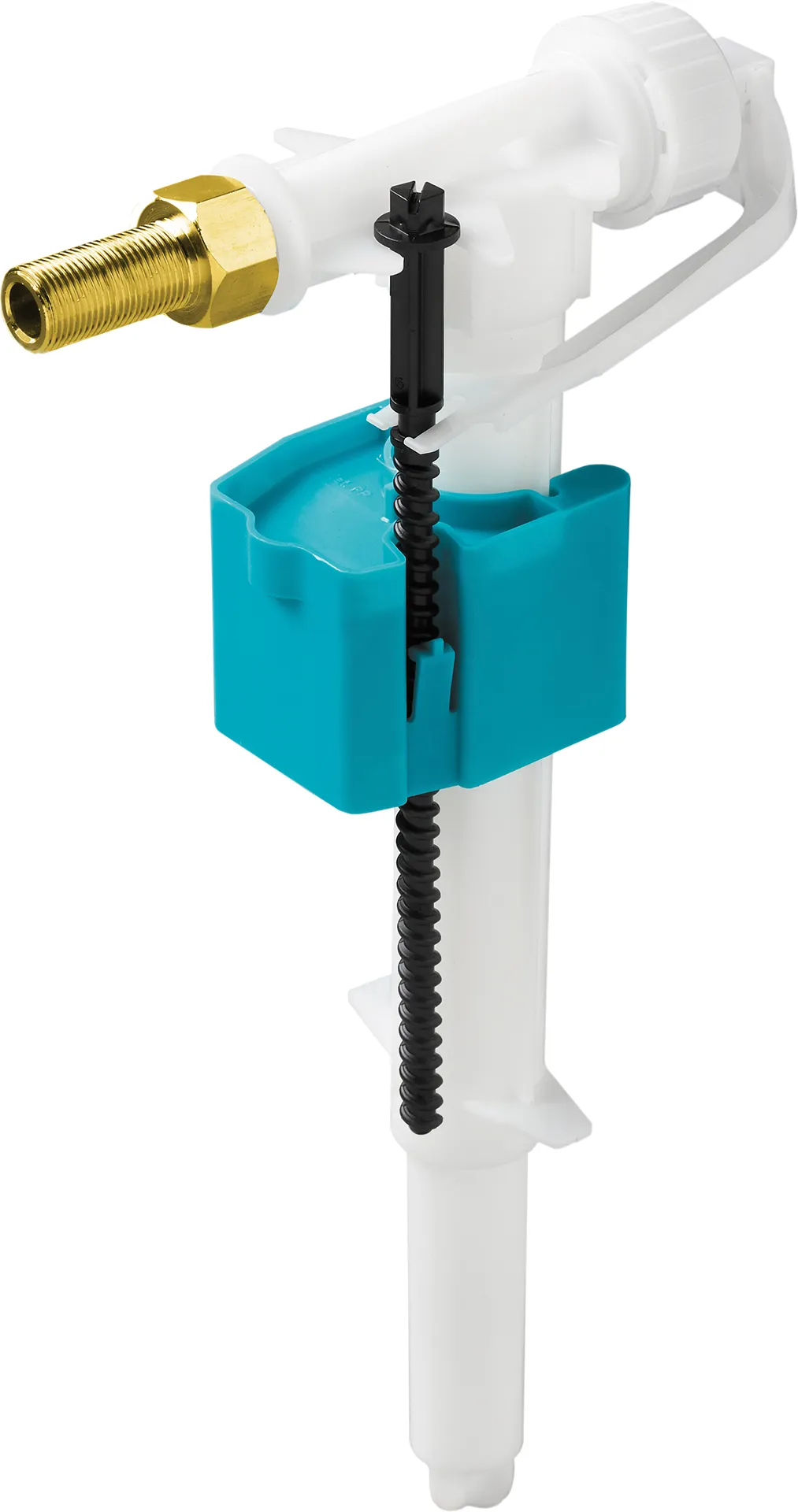

| 8035432795 | FILL VALVE HVK G 3/8 BRASS SHANK |
|
