Exposed cistern FORTUNA, white
All of our products are manufactured in compliance with EU regulations and come with a 10-year warranty (excluding rubber parts and electronics), along with a 25-year guarantee of spare parts availability.
Product number:
7030422640
EAN:
8711778216440
- Exposed flushing cistern
- Wall installation
- Suitable for low installation
- Start-Stop flushing
- 6(6–9) l flushing volume
- Possibility to connect the water supply: left or right
- Partially insulated against condensation
- Colour: white
- Flushing system in the centre
- Silent hydraulic filling valve
- Flexible connecting tube
- Flushing pipe 270 x 220 mm, Ø 50/44 mm
- Supplied parts for installation of the flushing cistern
| Adjustable flushing water quantity: | Yes |
|---|---|
| Colour: | White |
| Depth: | 108 mm |
| Filling valve noise class: | Group I, <=20 dB(A) |
| Flushing: | Interruptible |
| Flushing water quantity: | 6 to 9 l |
| Height: | 400 mm |
| KIWA certified: | Yes |
| Material flushing reservoir: | Plastic |
| Material quality: | Other |
| Operation: | Push button |
| Outer pipe diameter reservoir side flushing bend: | 50 mm |
| Outer pipe diameter tap water: | 16.66 mm |
| Reservoir position: | Low |
| Series: | FORTUNA |
| Size of tap water connection: | 3/8 inch |
| Sound class according to EN ISO 3822: | Group I, <=20 dB(A) |
| Suitable for close coupled toilet: | No |
| Suitable for electrical operation: | No |
| Suitable for manual operation: | Yes |
| Suitable for pneumatic operation: | No |
| Tap water connection: | External thread |
| Warranty: | 10 years |
| Water connection, bottom: | No |
| Water connection, left: | Yes |
| Water connection, rear: | Yes |
| Water connection, right: | Yes |
| Water connection, top: | No |
| Width: | 512 mm |
| With anti-condensation insulation: | Yes |
| With flushing bend: | Yes |
| With stop valve: | No |
| Product number: | Description | Image |
|---|---|---|
| 8035432795 | Fill valve HVK G 3/8 brass shank |
|
| 8050800504 | Flush valve with rubber gasket, cisterns Fortuna, W 500/750/790, AP 200 |
|
| 1411988440 | Flush valve rubber gasket 28 x 65 x 3 mm, black |
|
| 8050882450 | Flushing cistern outlet seal |
|
| 8050800078 | Holder (screw and insert) with flush pipe gasket |
|

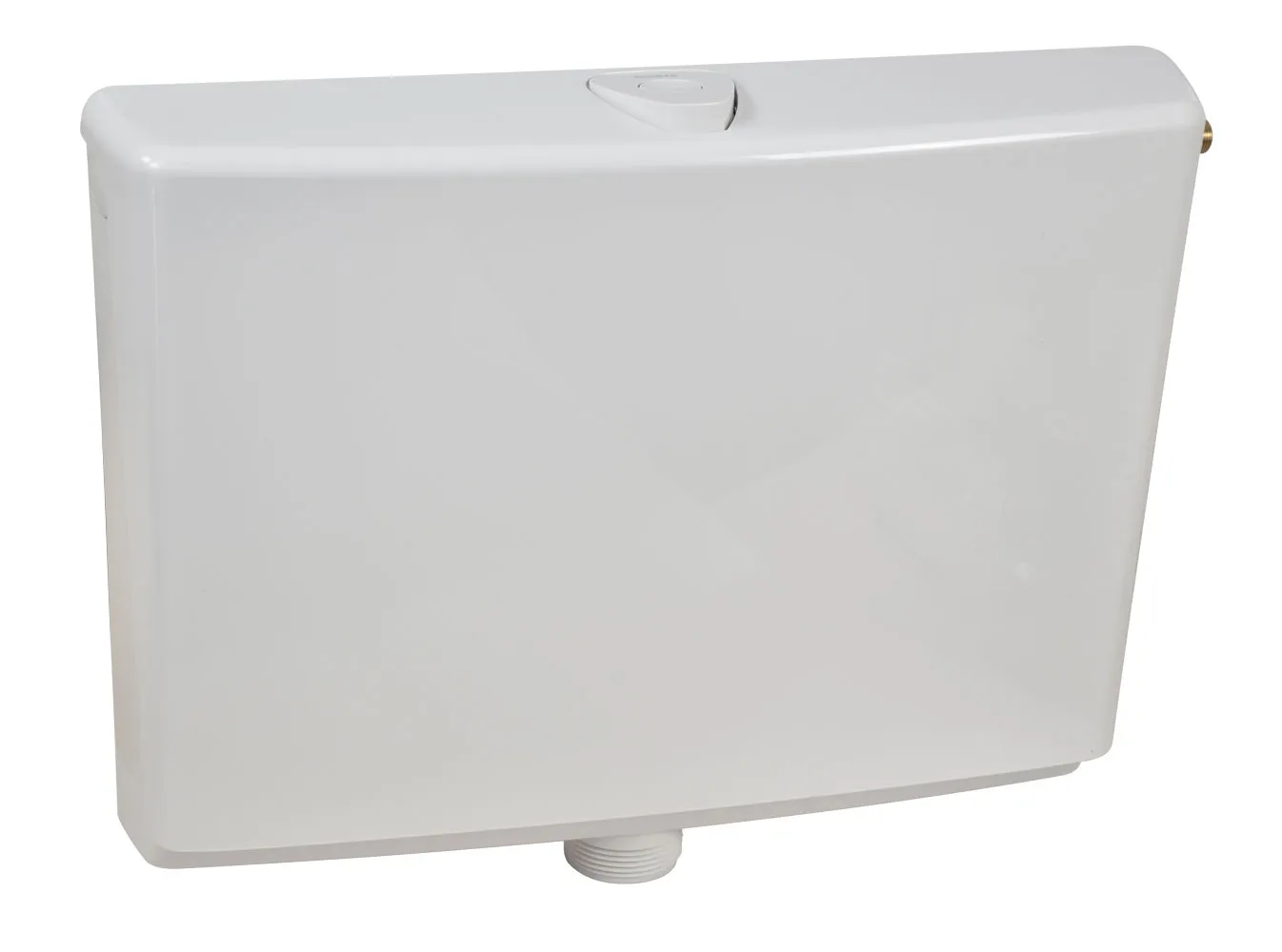

| 8050411201 | Cistern cover with function button, with flush interruption, white |
|

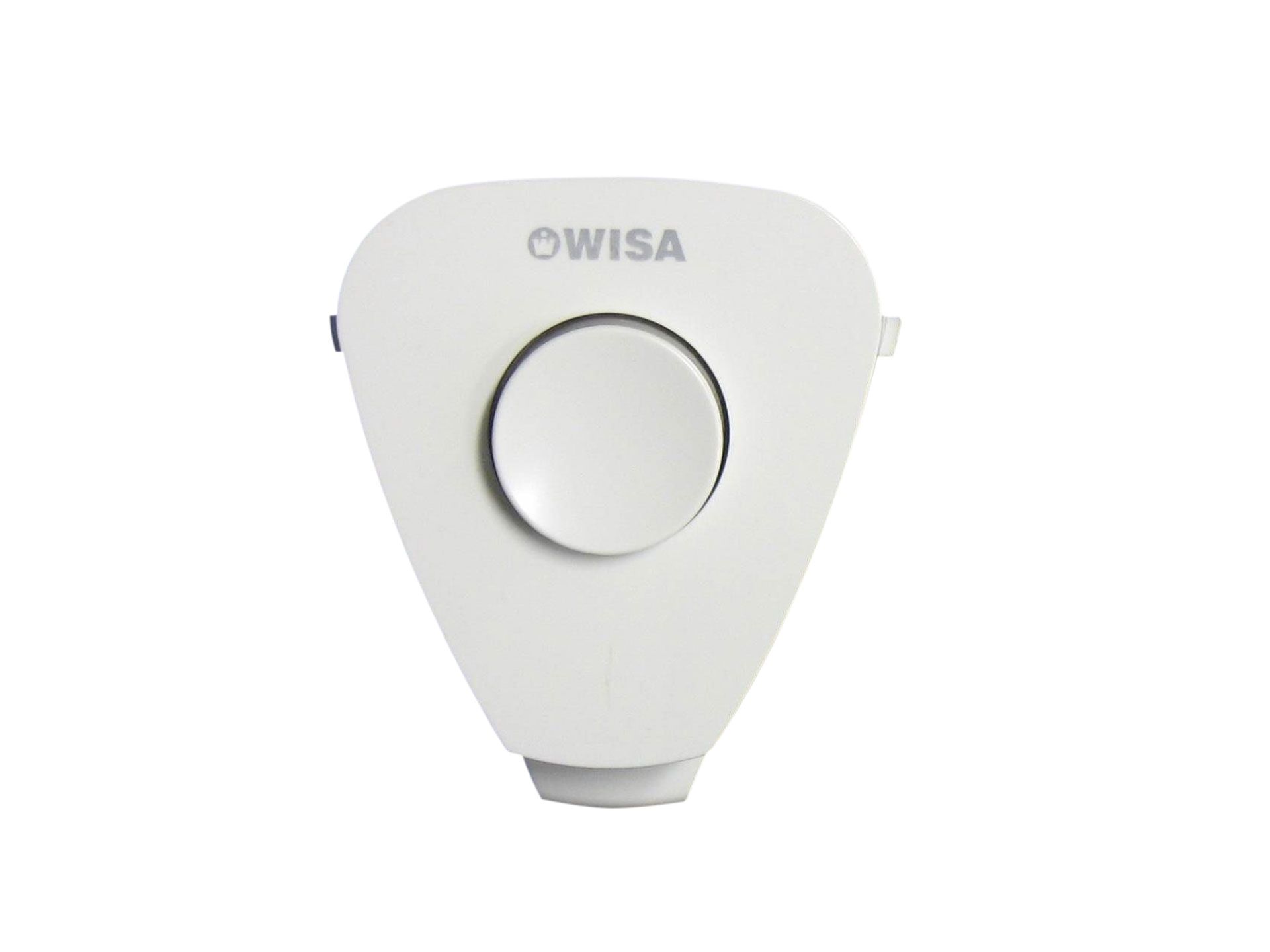

| 8050899149 | FUNCTION BUTTON, white |
|

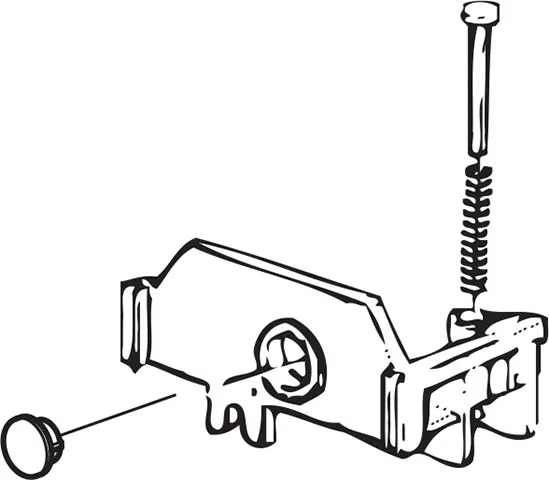

| 8050800198 | Bridge, cisterns Fortuna, AP220, SLIM, W500 |
|
| 8050882382 | Rosette, white |
|
| 8050882480 | Closing cap, cistern Fortuna, Linea, W250/870/1250, AP210/AP260, white |
|
| 8050882430 | Flush pipe rosette, white |
|
| 8050110101 | Flush pipe elbow, 230 x 210 mm, white |
|
| 8050985530 | WC Flush pipe connector seal No. 101 |
|

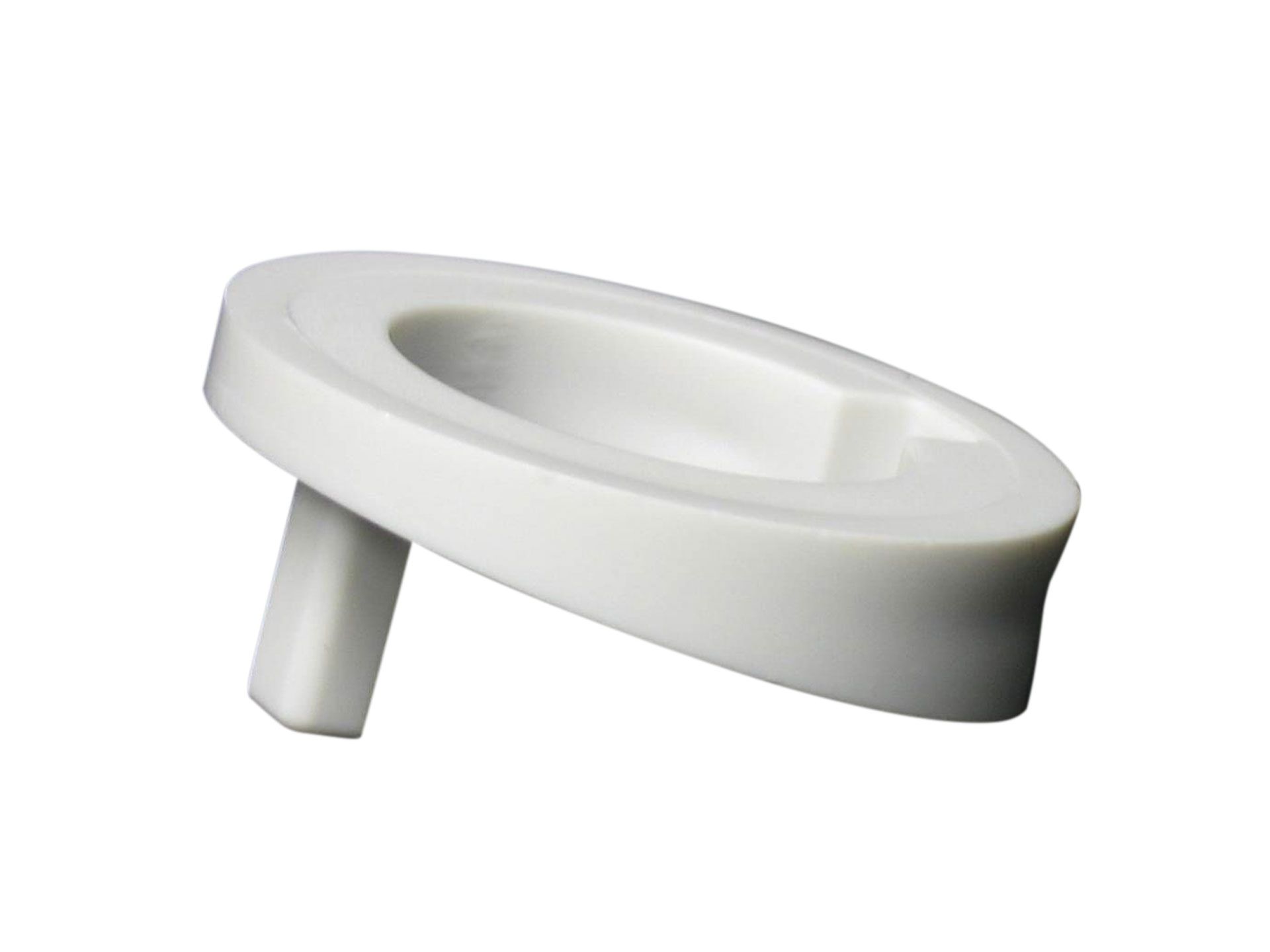

| 8050882490 | Spacer, white, cisterns W500, AP220, SLIM, Fortuna |
|
