Exposed cistern LINEA, white
Our exposed flushing cisterns are suitable for both new construction and renovations. They come in various styles, materials, designs, colors, and installation types to meet specific requirements.
All of our products are manufactured in compliance with EU regulations and come with a 10-year warranty (excluding rubber parts and electronics), along with a 25-year guarantee of spare parts availability.
All of our products are manufactured in compliance with EU regulations and come with a 10-year warranty (excluding rubber parts and electronics), along with a 25-year guarantee of spare parts availability.
Product number:
7030428401
EAN:
8711778216457
- Exposed flushing cistern
- Wall installation
- Suitable for corner installation
- Start-Stop flushing
- 6(6–9) l flushing volume
- Possibility to connect the water supply: left or right
- Partially insulated against condensation
- Colour: white
- Flushing system on the right
- Hydraulic filling valve type
- Flexible connecting tube
- Flushing pipe 270 x 220 mm, Ø 50/44 mm
- Parts for the installation of the flushing cistern are supplied
| Adjustable flushing water quantity: | Yes |
|---|---|
| Colour: | White |
| Depth: | 289 mm |
| Filling valve noise class: | Group I, <=20 dB(A) |
| Flushing: | Interruptible |
| Flushing water quantity: | 6 to 9 l |
| Height: | 342 mm |
| KIWA certified: | Yes |
| Material flushing reservoir: | Plastic |
| Material quality: | Other |
| Operation: | Push button |
| Outer pipe diameter reservoir side flushing bend: | 50 mm |
| Outer pipe diameter tap water: | 16.66 mm |
| Reservoir position: | Low |
| Series: | LINEA |
| Size of tap water connection: | 3/8 inch |
| Sound class according to EN ISO 3822: | Group I, <=20 dB(A) |
| Suitable for close coupled toilet: | No |
| Suitable for electrical operation: | No |
| Suitable for manual operation: | Yes |
| Suitable for pneumatic operation: | No |
| Tap water connection: | External thread |
| Warranty: | 10 years |
| Water connection, bottom: | No |
| Water connection, left: | Yes |
| Water connection, rear: | Yes |
| Water connection, right: | Yes |
| Water connection, top: | No |
| Width: | 313 mm |
| With anti-condensation insulation: | Yes |
| With flushing bend: | Yes |
| With stop valve: | No |
| Product number: | Description | Image |
|---|---|---|

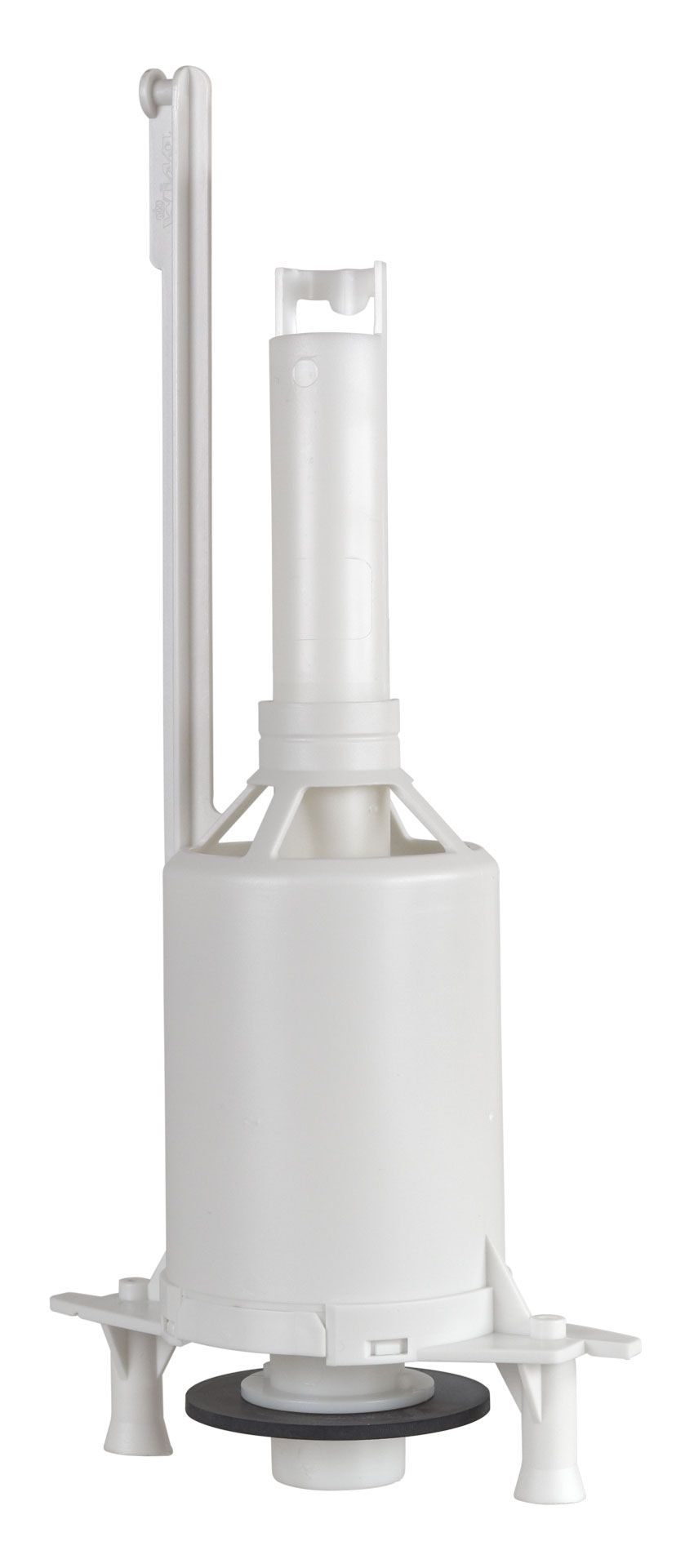

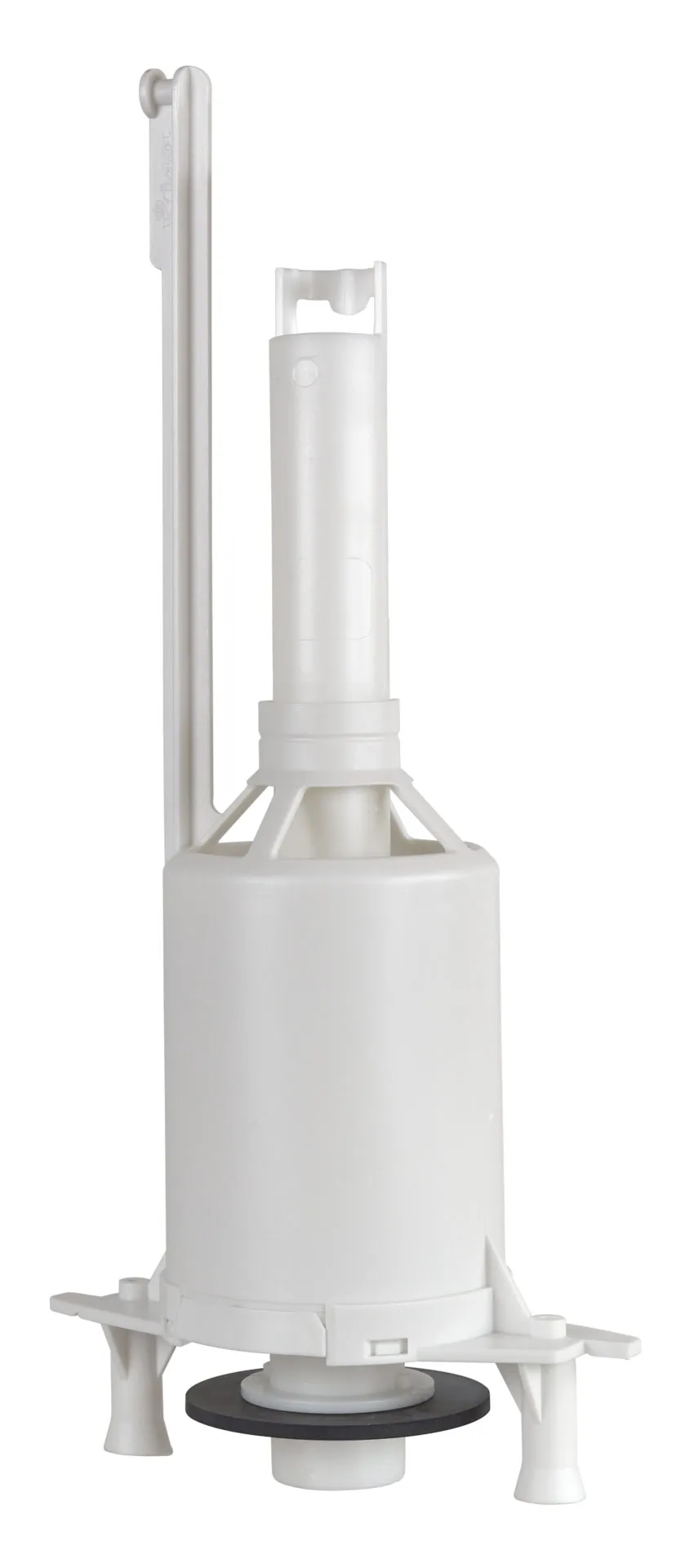

| 8050800500 | Flush valve with rubber gasket, cisterns Linea, W 285/350/444/900, AP210/AP240 |
|
| 1411988440 | Flush valve rubber gasket 28 x 65 x 3 mm, black |
|
| 8050882450 | Flushing cistern outlet seal |
|
| 8050800078 | Holder (screw and insert) with flush pipe gasket |
|

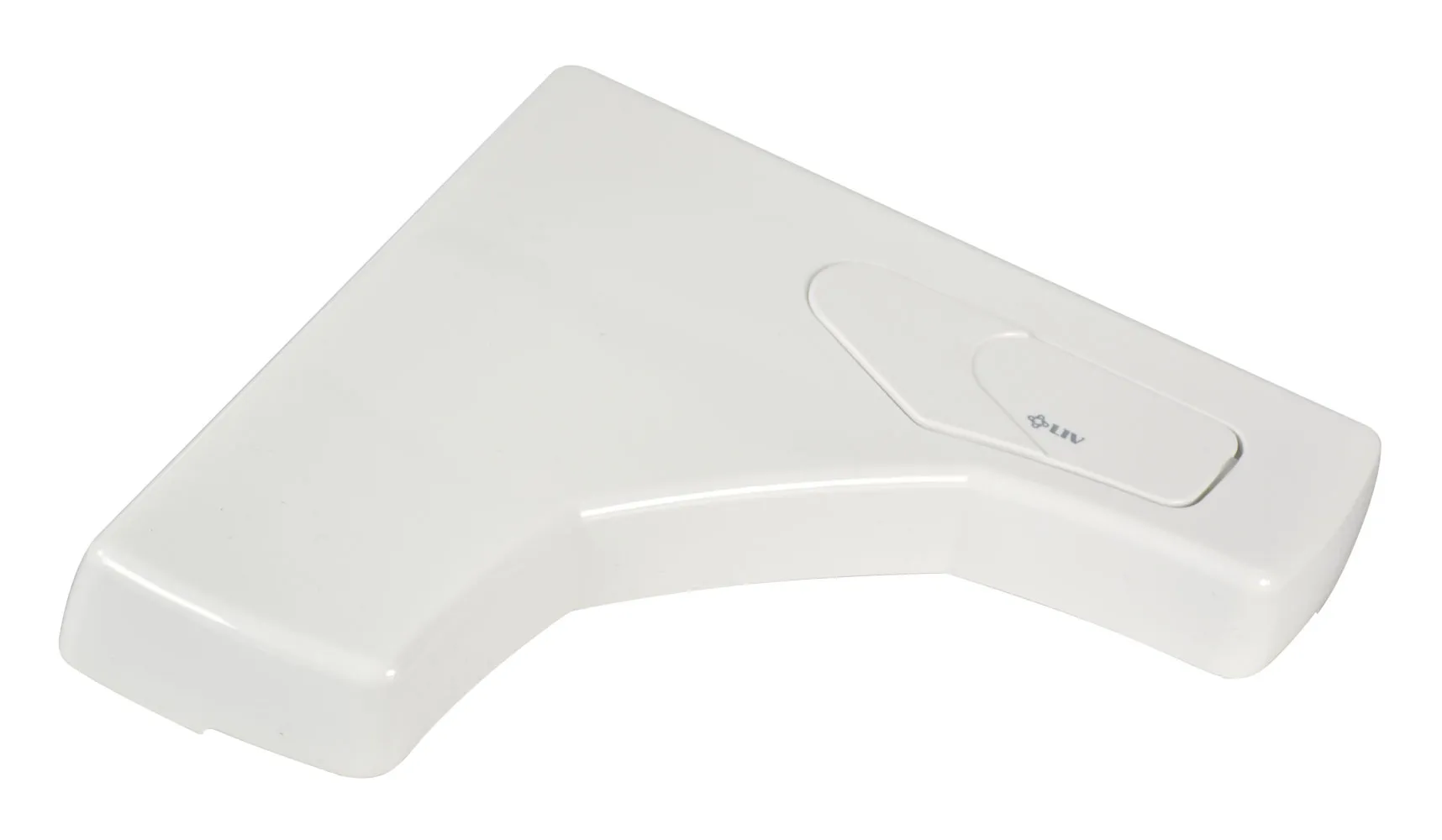

| 8050410401 | Cistern cover with a function button, cistern Linea, white |
|

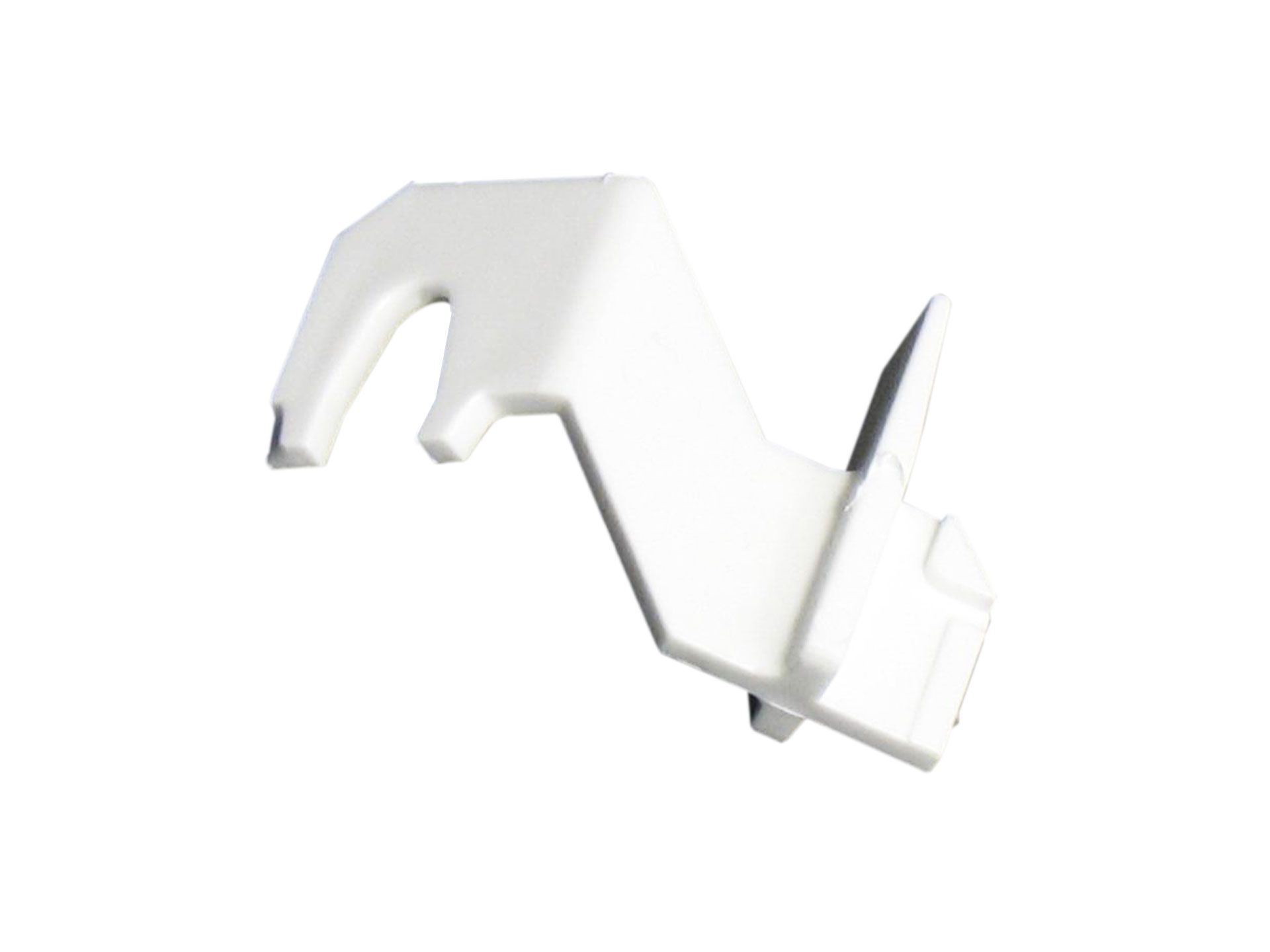

| 8050887076 | Bridge (from 09/1999) |
|
| 8050882382 | Rosette, white |
|

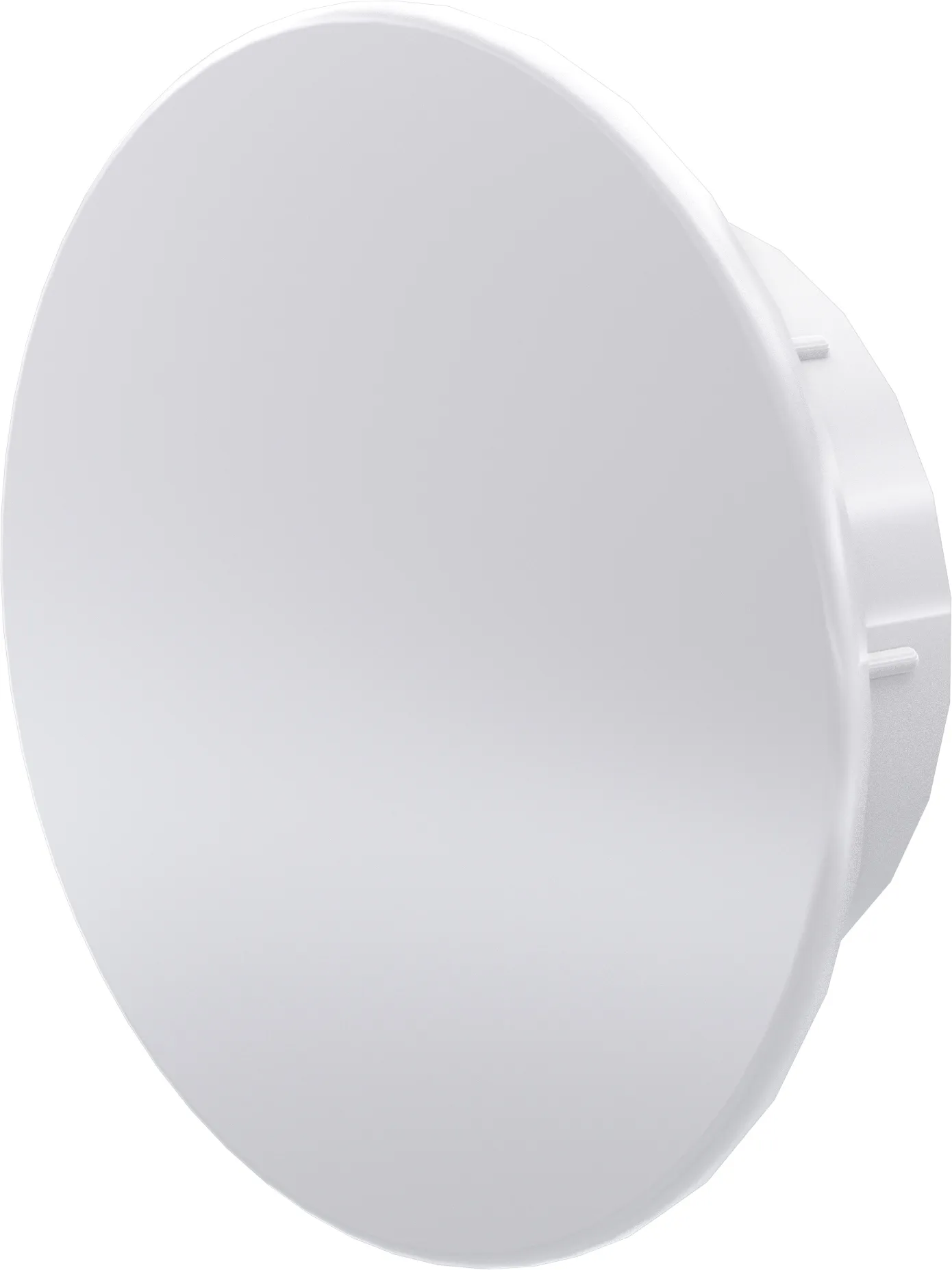

| 8050882480 | Closing cap, cistern Fortuna, Linea, W250/870/1250, AP210/AP260, white |
|
| 8050882430 | Flush pipe rosette, white |
|
| 8050110101 | Flush pipe elbow, 230 x 210 mm, white |
|
| 8050985530 | WC Flush pipe connector seal No. 101 |
|
