LIV-FIX WC 3800
An exceptionally narrow concealed cistern, measuring only 38 cm in width. It boasts a vast array of flushing plates in available in diverse designs, colors, and materials with various flushing activation options, including mechanical, pneumatic, or electronic, offering limitless combination and possibilities.
Product number:
7030452701
EAN:
8711778216266
- Installation in prefabricated walls, pre-wall installation in dry walls, universal installation into solid walls
- Supporting, blue powder coated WC element, square profile 40 x 40 mm with pre-assembled concealed flushing cistern 3800
- Frontal flushing, start-stop flushing (6 l) or dual flushing (3/6 l)
- Adjustable flushing volume between 6 and 7.5 l
- Pre-mounted fixing elements and flexible support legs (0–200 mm)
- Water connection possibility in four positions
- Fully insulated against condensation
- Silent hydraulic filling valve (noise emission class 1 ISO 3822)
- Depth adjustable drain elbow (+/- 10 mm)
- Concealed flushing cistern equipped with pre-mounted angle valve – top center
- Water connection G 1/2
- PE wall drain elbow Ø 90 mm with a seal
- PE eccentric adapter reduction piece Ø 90/110 mm with a seal
- Assembly template
- All parts required for installation and mounting are supplied with the product
- The flushing plate needs to be ordered separately
- Possible installation of flushing plates: Nea, Opal Duo, Onyx Duo, Arte Duo, Itea
| Adjustable depth: | Yes |
|---|---|
| Adjustable flushing water quantity: | Yes |
| Adjustable height: | Yes |
| Adjustable toilet height: | No |
| Adjustable width: | No |
| Battery power supply: | No |
| Centre distance of toilet attachment: | 18 cm and 23 cm |
| Depth: | 140 to 200 mm |
| Flushing: | Two quantities |
| Flushing water quantity: | 3 to 7.5 l |
| Frame suitable for wc with offset >60cm: | Yes |
| Frame suitable for wc with offset >60cm: | Yes |
| Height: | 1180 to 1380 mm |
| Load capacity >=400 kg according to EN 997: | Yes |
| Material: | Steel |
| Material flushing reservoir: | Plastic |
| Number of tap water connections: | 1 |
| Outer pipe diameter drainage: | 110 mm |
| Outer pipe diameter tap water: | 20.96 mm |
| Programmable with remote control: | Yes |
| Quality class flushing reservoir: | Polypropylene (PP) |
| Reservoir type: | 3800 |
| Self-bearing construction: | Yes |
| Series: | 3800 |
| Size of tap water connection: | 1/2 inch |
| Sound class according to EN ISO 3822: | Group I, <=20 dB(A) |
| Spacer under reservoir: | No |
| Suitable for drywall: | Yes |
| Suitable for electrical operation: | Yes |
| Suitable for front operation: | Yes |
| Suitable for infrared operation: | Yes |
| Suitable for manual operation: | Yes |
| Suitable for pneumatic operation: | Yes |
| Suitable for radar operation: | No |
| Suitable for shelf operation: | No |
| Suitable for shower toilet: | No |
| Suitable for solid wall: | Yes |
| Surface protection: | Coated |
| Tap water connection: | External thread |
| Warranty: | 10 years |
| Width: | 380 to 380 mm |
| With anti-condensation insulation: | Yes |
| With bracket suitable for floor mounting: | No |
| With bracket suitable for high wall mounting: | No |
| With bracket suitable for low wall mounting: | No |
| With building management system connection: | No |
| With contact sound insulation set: | Yes |
| With control panel: | No |
| With drainage bend: | Yes |
| With electrical connection: | No |
| With fan connection: | No |
| With front cladding: | No |
| With inlet and outlet fittings: | Yes |
| With mounting material for the element: | Yes |
| With mounting material for the toilet: | Yes |
| With stop valve: | Yes |
| Product number: | Description | Image |
|---|---|---|
| 8035432795 | Fill valve HVK G 3/8 brass shank |
|

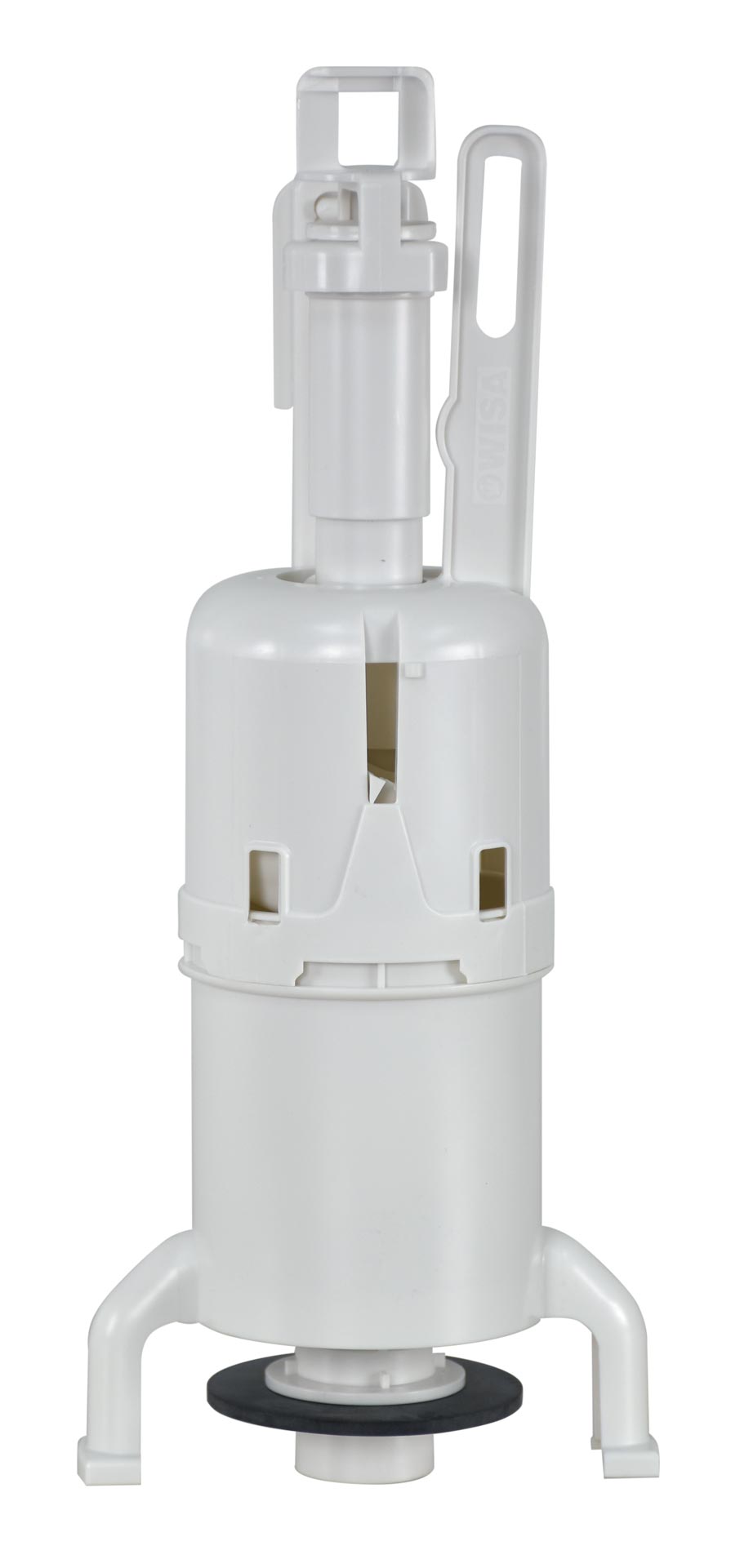

| 8050801525FM | Flush valve with rubber seal |
|
| 8050801522 | Flush valve (DFF) |
|
| 1411988440 | Flush valve rubber gasket 28 x 65 x 3 mm, black |
|
| 8050887175 | Tightening nut |
|
| 8050887113 | Cistern lid, cisterns XS, 380, 3800 |
|
| 8050887079 | Bridge for fill valve |
|
| 8050390034 | Clamp with control hooks, cisterns 3800/380, mechanical |
|
| 8050390032 | Clamp with control hooks, pneumatic |
|
| 8050390052 | DFF clamp with control hooks |
|
| 8050390051 | SF clamp with control hocks |
|
| 8050390109 | Mounting and regulation pin set for DUO plates, cisterns 3800/380 |
|
| 8050887097 | Clamp for mounting the drain elbow |
|
| 8050887145 | Inspection opening protection, front |
|
| 8050887355 | Flush pipe with tongue |
|
| 8050390061 | Set of rubber seals for 90 mm drain pipe and drain elbow |
|
| 8050390090 | Discharge elbow Ø 90/90 mm |
|
| 8050390091 | Adapter reduction piece Ø 90/110 mm |
|
| 8050390080 | WC connection kit Ø 90 mm, L=230 mm |
|
| 8050390081 | Extra long WC connection kit Ø 90 mm, L=300 mm |
|
| 8050802329 | Flexible hose |
|
| 8050802325 | Flexible hose with G3/8 F - G1/2 Eurocone + ball valve |
|
| 8050802326 | FLEXIBLE CONNECTION TUBE, G 1/2 INTERIOR |
|
