LIV-FIX WC 6052 83 cm
Product number:
7030453003
EAN:
8711778216259
- Installation in pre-wall installation
- Supporting, blue powder coated WC element, square profile 40 x 40 mm with pre-assembled flushing cistern 6052
- Top or frontal flushing, dual flushing (3/6 l)
- Flushing volume between 6 and 7.5 l
- Pre-mounted fixing elements and adjustable support legs (0-200 mm)
- Water connection – on the left side
- Fully insulated against condensation
- A silent mechanical filling valve (noise emission class 1 ISO 3822)
- Suitable for pneumatic and mechanical flushing plates
- Depth adjustable drain elbow (+/- 20 mm)
- Concealed flushing cistern with pre-assembled angle valve – on the left side
- Water connection G 1/2
- PE wall drain elbow Ø 90 mm with seal
- PE eccentric adapter reduction piece Ø 90/110 mm with a seal
- Assembly template
- All parts required for installation and mounting are supplied with the product
- The flushing plate needs to be ordered separately

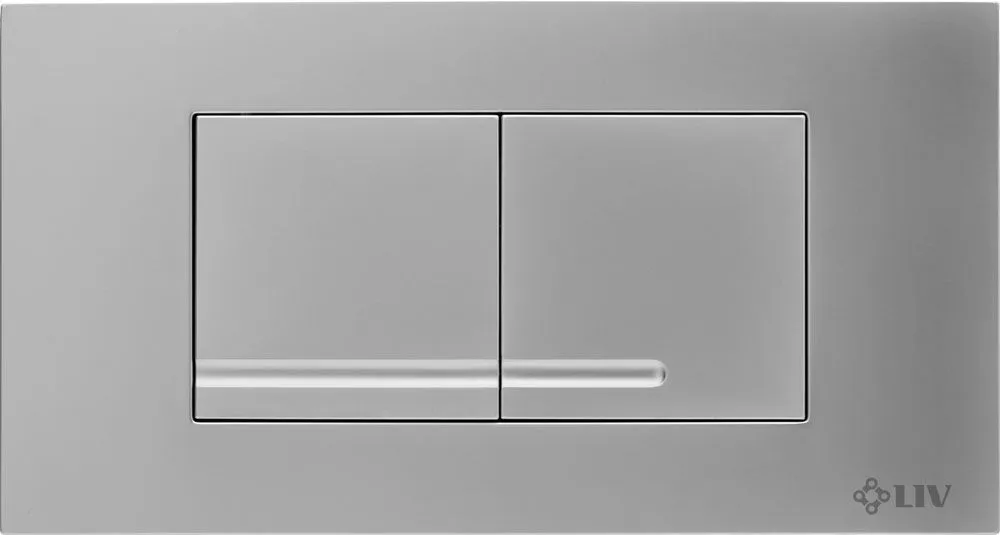

- Possible installation of flushing plates: Rei, Gaios, Thira, Kation
| Adjustable depth: | Yes |
|---|---|
| Adjustable flushing water quantity: | Yes |
| Adjustable height: | Yes |
| Adjustable toilet height: | No |
| Adjustable width: | No |
| Battery power supply: | No |
| Centre distance of toilet attachment: | 18 cm and 23 cm |
| Depth: | 140 to 200 mm |
| Flushing: | Two quantities |
| Flushing water quantity: | 3 to 7.5 l |
| Frame suitable for wc with offset >60cm: | Yes |
| Frame suitable for wc with offset >60cm: | Yes |
| Height: | 830 to 1030 mm |
| Load capacity >=400 kg according to EN 997: | Yes |
| Material: | Steel |
| Material flushing reservoir: | Plastic |
| Number of tap water connections: | 1 |
| Outer pipe diameter drainage: | 110 mm |
| Outer pipe diameter tap water: | 20.96 mm |
| Programmable with remote control: | Yes |
| Quality class flushing reservoir: | Polypropylene (PP) |
| Reservoir type: | 6052 |
| Self-bearing construction: | Yes |
| Series: | 6052 |
| Size of tap water connection: | 1/2 inch |
| Sound class according to EN ISO 3822: | Group I, <=20 dB(A) |
| Spacer under reservoir: | No |
| Suitable for drywall: | Yes |
| Suitable for electrical operation: | Yes |
| Suitable for front operation: | Yes |
| Suitable for infrared operation: | Yes |
| Suitable for manual operation: | Yes |
| Suitable for pneumatic operation: | Yes |
| Suitable for radar operation: | No |
| Suitable for shelf operation: | Yes |
| Suitable for shower toilet: | No |
| Suitable for solid wall: | Yes |
| Surface protection: | Coated |
| Tap water connection: | External thread |
| Warranty: | 10 years |
| Width: | 380 to 380 mm |
| With anti-condensation insulation: | Yes |
| With bracket suitable for floor mounting: | No |
| With bracket suitable for high wall mounting: | No |
| With bracket suitable for low wall mounting: | No |
| With building management system connection: | No |
| With contact sound insulation set: | Yes |
| With control panel: | No |
| With drainage bend: | Yes |
| With electrical connection: | No |
| With fan connection: | No |
| With front cladding: | No |
| With inlet and outlet fittings: | Yes |
| With mounting material for the element: | Yes |
| With mounting material for the toilet: | Yes |
| With stop valve: | Yes |
| Product number: | Description | Image |
|---|---|---|
| 8035432795 | Fill valve HVK G 3/8 brass shank |
|
| 8050801525FM | Flush valve with rubber seal |
|
| 8050801522 | Flush valve (DFF) |
|
| 1411988440 | Flush valve rubber gasket 28 x 65 x 3 mm, black |
|
| 8050887175 | Tightening nut |
|
| 8050887119 | Cistern lid, cisterns XT, 387, 6052 |
|
| 8050887079 | Bridge for fill valve |
|
| 8050390031 | Clamp with control hooks, cisterns XT, 387, 6052, mechanical |
|
| 8050390032 | Clamp with control hooks, pneumatic |
|
| 8050390052 | DFF clamp with control hooks |
|
| 8050390111FM | Mounting and regulation pin set for DUO plates, cisterns XT, 387, 6052 |
|
| 8050887097 | Clamp for mounting the drain elbow |
|
| 8050887169 | Inspection opening protection, upper/front |
|
| 8050887349 | Flush pipe |
|
| 8050390061 | Set of rubber seals for 90 mm drain pipe and drain elbow |
|
| 8050390090 | Discharge elbow Ø 90/90 mm |
|
| 8050390091 | Adapter reduction piece Ø 90/110 mm |
|
| 8050390080 | WC connection kit Ø 90 mm, L=230 mm |
|
| 8050390081 | Extra long WC connection kit Ø 90 mm, L=300 mm |
|
| 8050802332 | Water connection flexible hose |
|
| 8050887104 | Cover |
|
