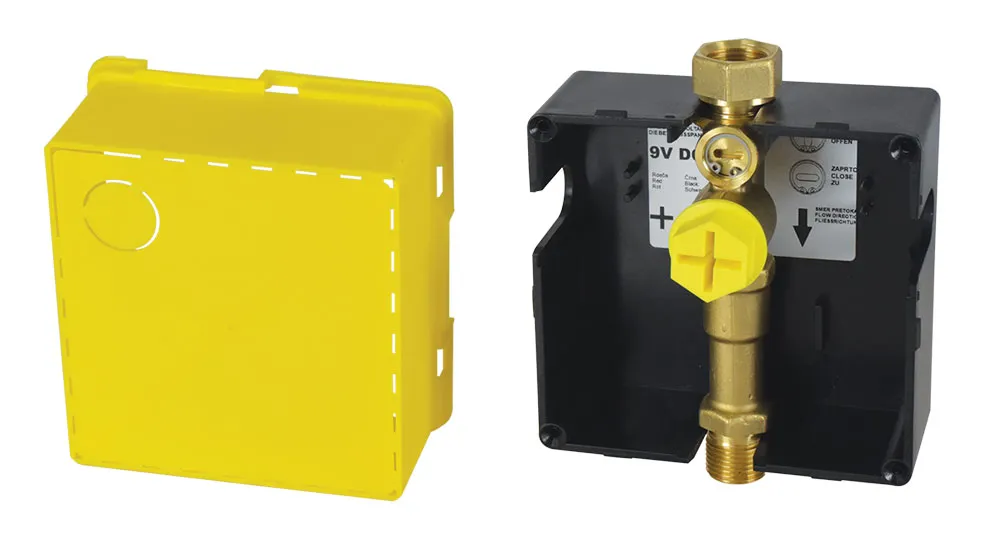

Rough installation set for flush plates RAY IR TECH S and TECH P
Product number:
2903S-0174-30
- For installation onto element with a non-contact flushing function
- For infrared flushing plate for urinal, 230 V/50 Hz (ID No. 2592Y-0170-30, 2592Y-0171-30) or 9 V (ID No. 2592Y-0172-30, 2592Y-0173-30)
- Power supply: 230 V/50 Hz or 9 V (battery)
- Operating voltage: 6 V DC
- For urinal element (ID No. 2101F-0169-30)
- Housing set with fixing elements
- Protective set cover
- Electromagnetic valve 6 V DC
- Water particle filter with the possibility of filter cleaning
- Mechanical angle valve
- Water connection DN 15 (G 1/2)
- Option: Installation directly into solid wall
