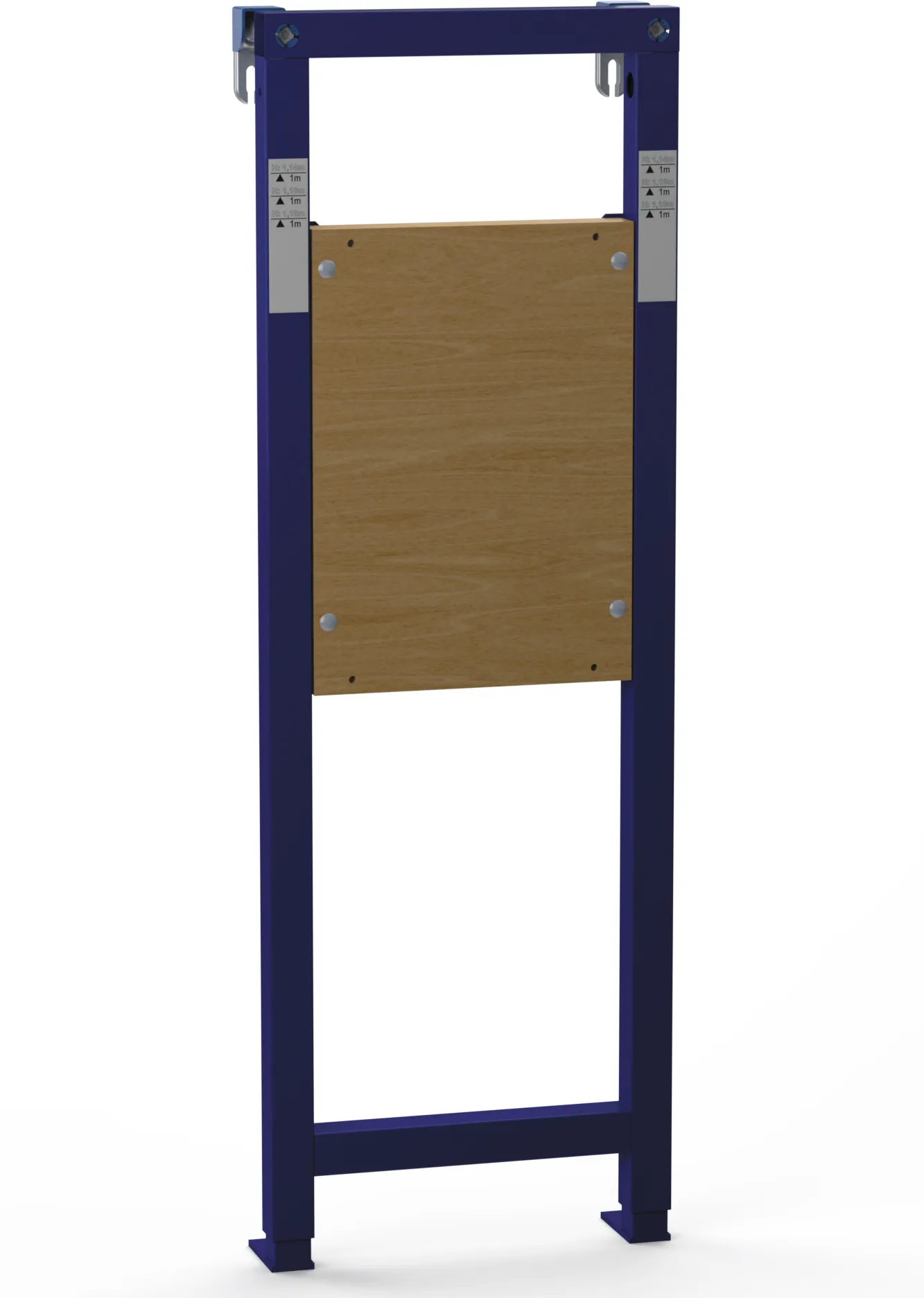

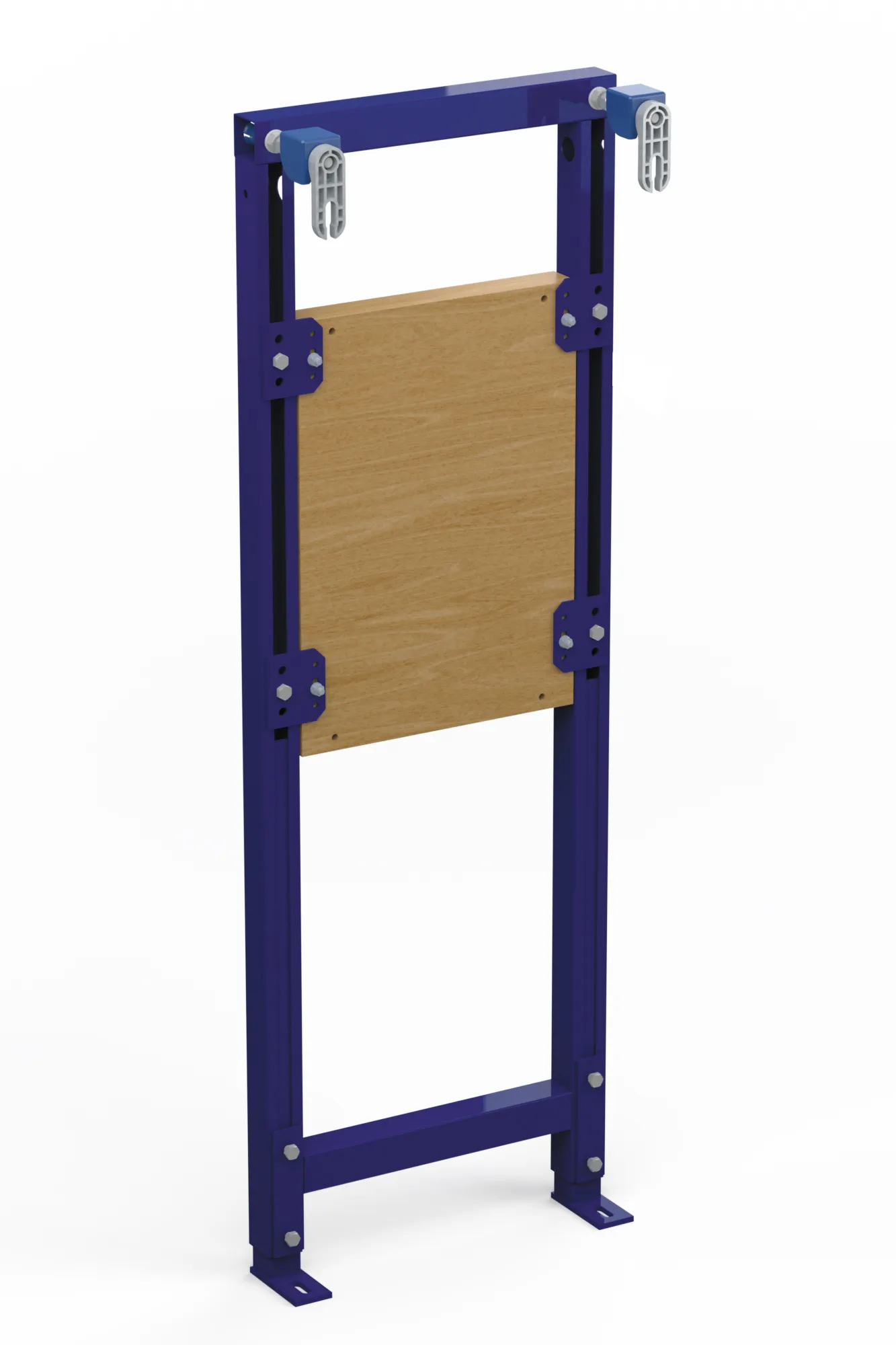

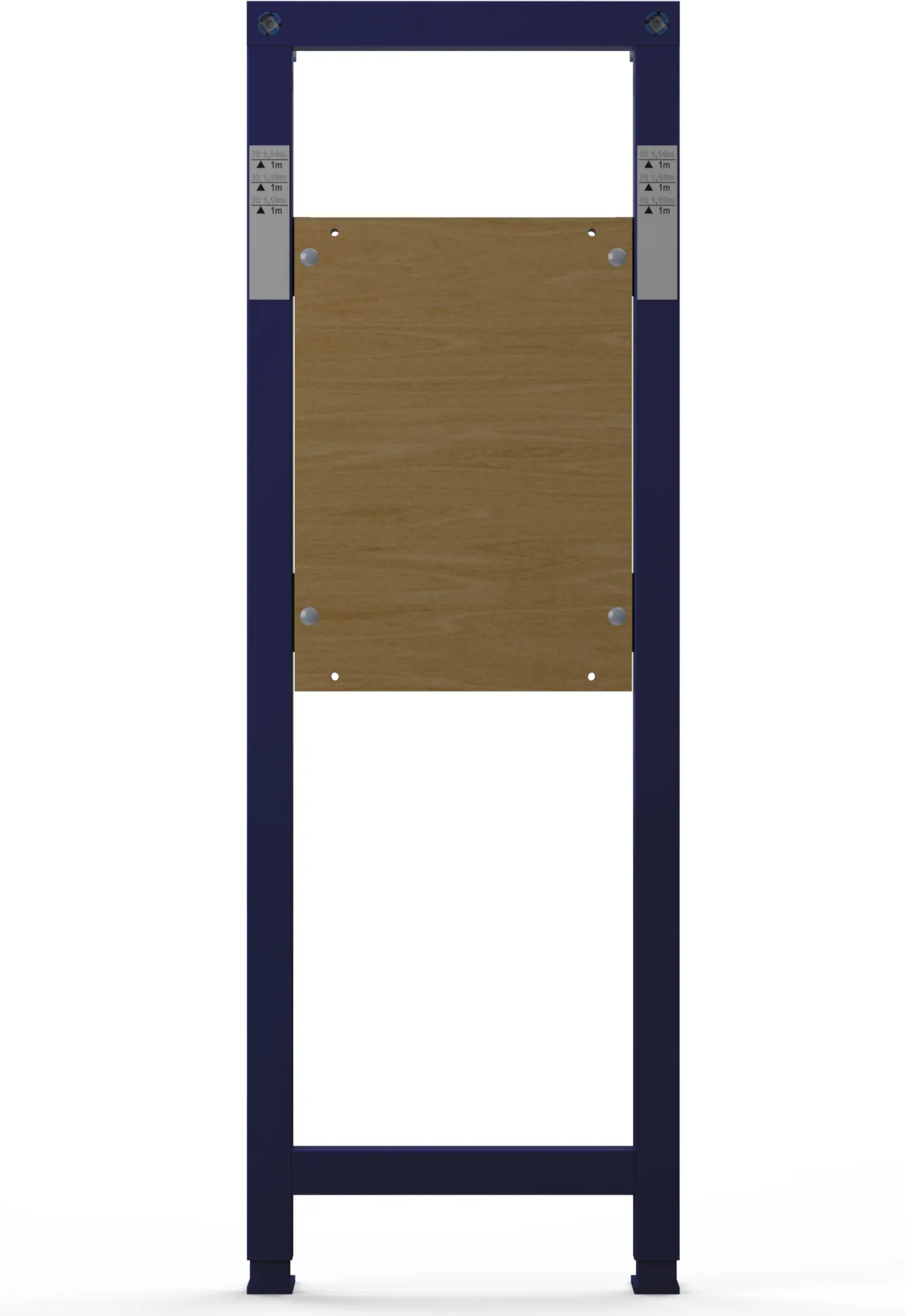

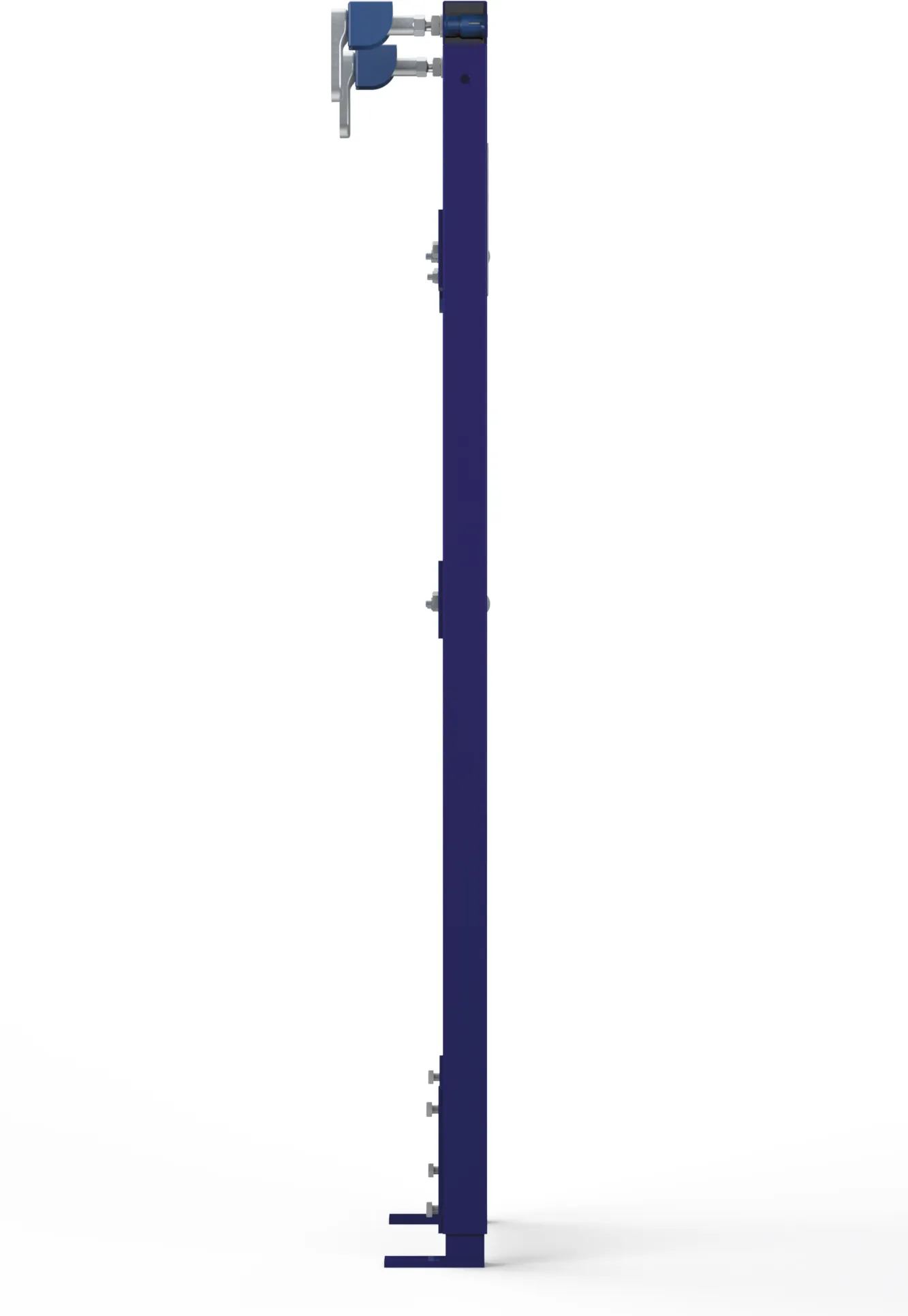

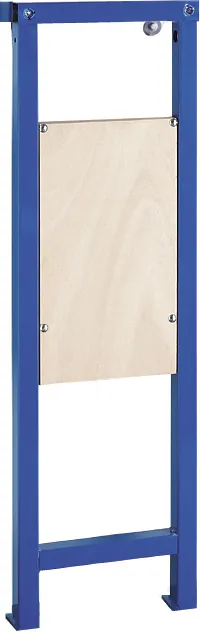

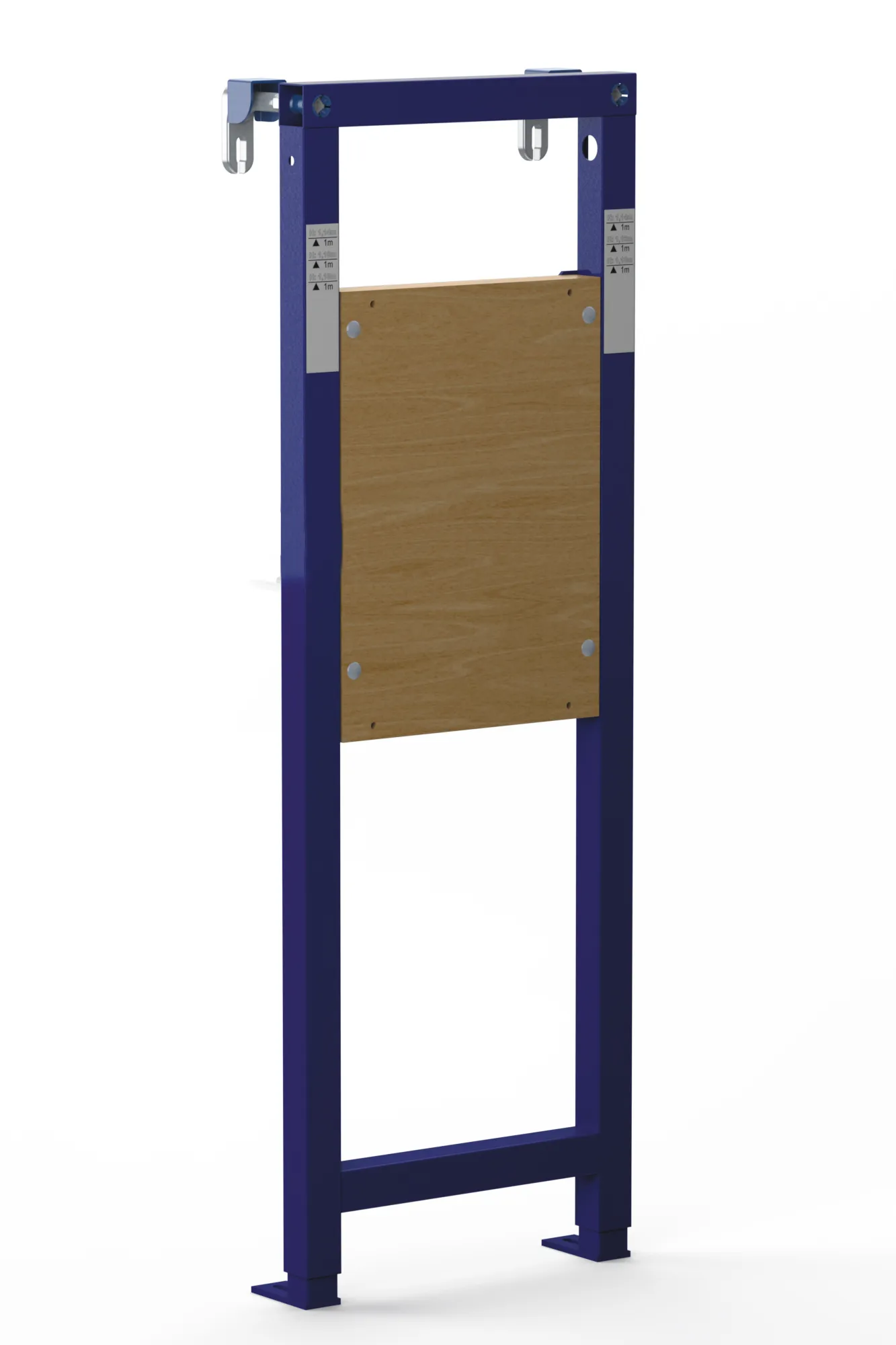

Support frame for bars/urinal panels 380

In addition to concealed cisterns and urinal elements, we provide elements for various other applications that offer versatile solutions for different construction projects, whether they involve new buildings or renovations, whether in the private or public sector.

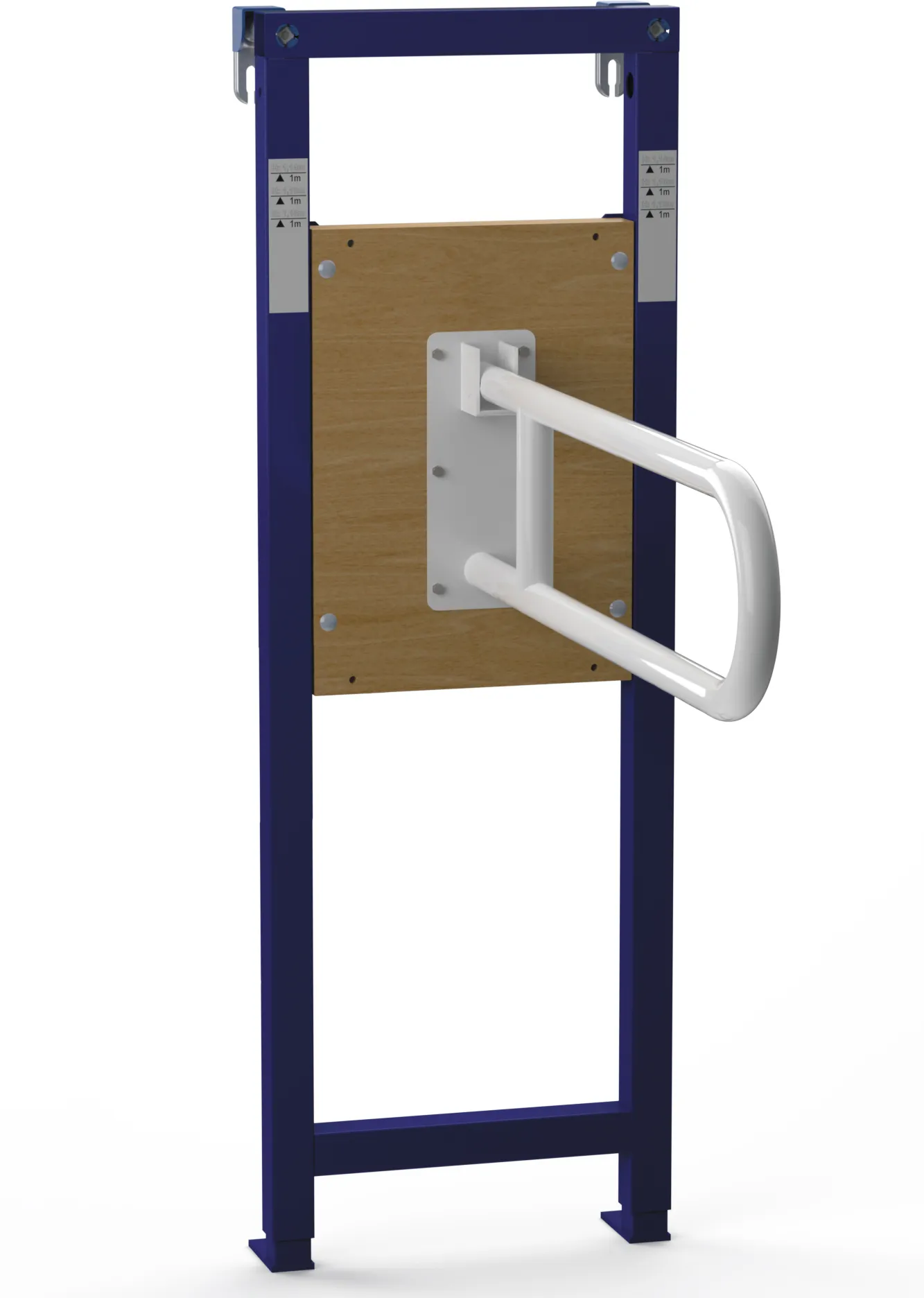

Our support element ensure a secure and efficient installation for support bars, urinal panels, etc.

Product number: 8050452997

EAN: 8711778103788

Support frame for support bars/urinal panels
Blue powder coated frame
Adjustable feet (0-200 mm)
Pre-assembled wall fixation kit
Adjustable 40 mm thick wooden plate
Incl. fixation materials

Adjustable depth:	Yes
Adjustable height:	Yes
Adjustable width:	No
Arm support height adjustable:	Yes
Depth:	135 to 200 mm
Height:	1140 to 1440 mm
Material:	Steel
Self-bearing construction:	Yes
Suitable for drywall:	Yes
Suitable for sanitary installation wall system:	No
Suitable for solid wall:	No
Surface protection:	Coated
Width:	380 to 380 mm
With mounting material for the element:	Yes

Technical drawing 8050452997

Instructions 8050452997

CAD 8050452997

Technical information 8050452997

Instructions 8050452997
