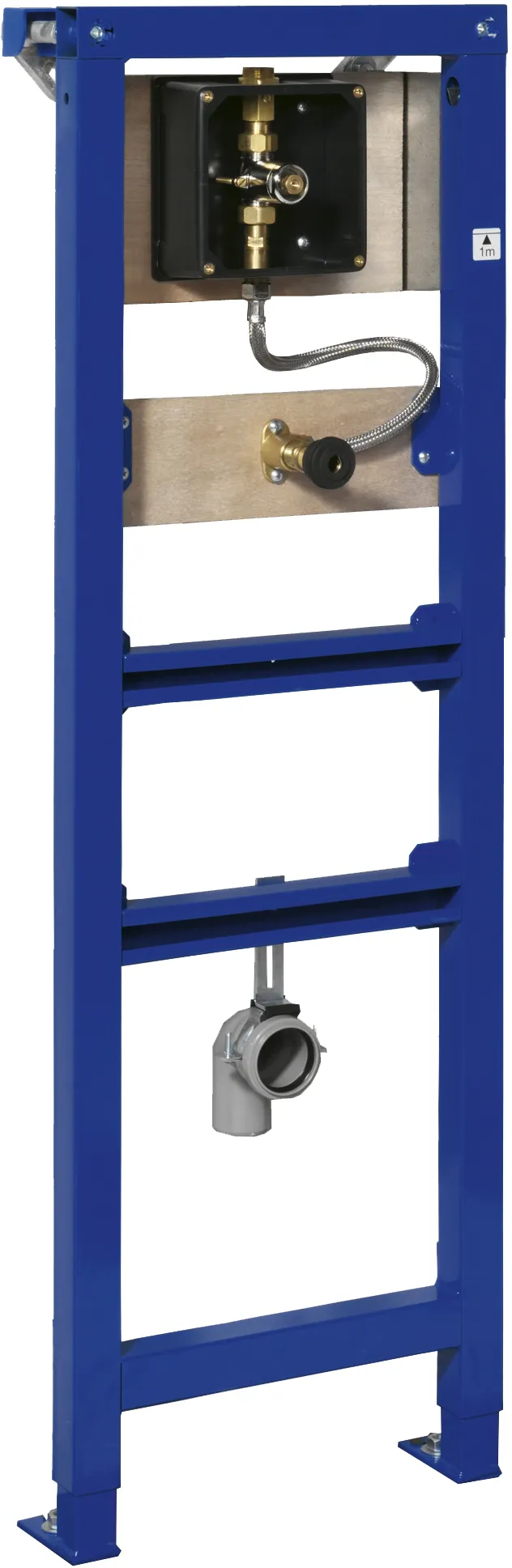

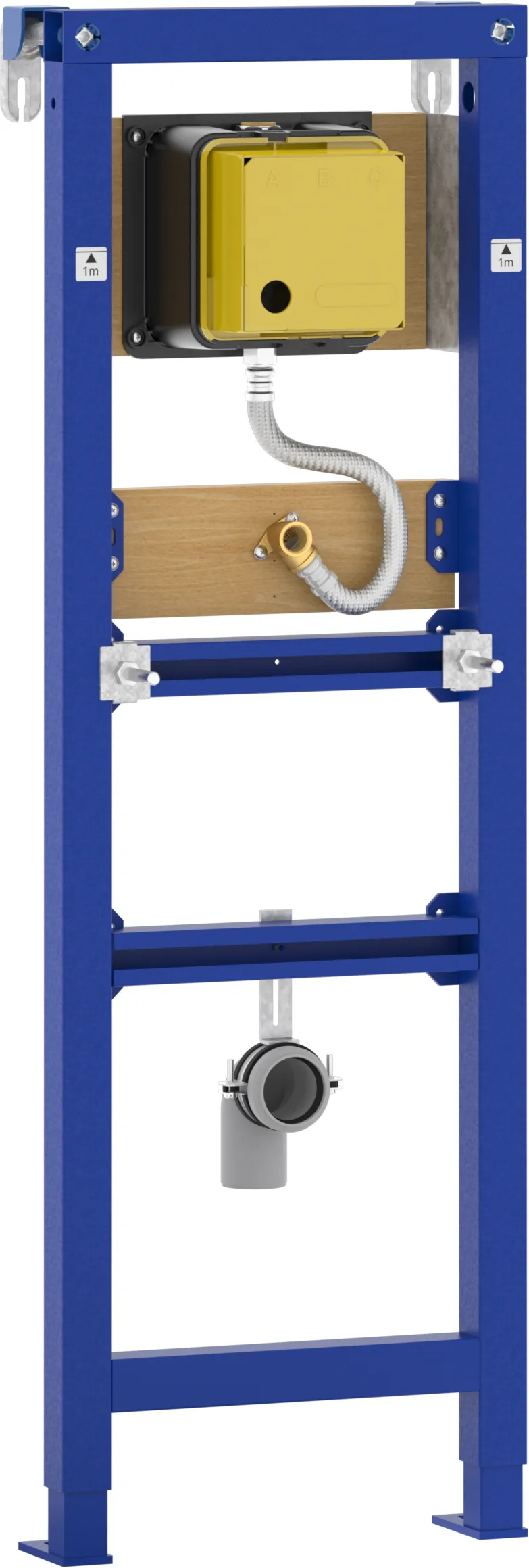

Urinal frame 380 MECH.PL
Our urinal elements ensure a reliable and efficient installation of the urinal, providing a range of features to meet various requirements.
Product number:
8050452777
EAN:
8711778229860
- Urinal support frame
- Blue powder coated frame
- Adjustable feet (20 cm)
- Pre-assembled wall fixation kit
- 380 mm wide
- Incl. fixation materials, elbow 50 mm
- Max 280 offset for urinal fixation
- Pre-assembled in-wall mounted box, with ball valve, pressure flush mechanism and pipe up to the water supply
- Water connection G 1/2
- Styropor masonry aid
- Flushing pressure: 1,2-4,0 bar
- Flush volume: consistent 3 ± 0,5 l
| Adjustable depth: | Yes |
|---|---|
| Adjustable height: | Yes |
| Adjustable throughflow capacity: | Yes |
| Adjustable urinal height: | Yes |
| Adjustable width: | No |
| Battery power supply: | No |
| Depth: | 135 to 200 mm |
| Flushing time usage frequency adjustment: | No |
| Height: | 1180 to 1380 mm |
| Material: | Steel |
| Max. pre-pressure: | 5 bar |
| Min. pre-pressure: | 0.5 bar |
| Number of attachment points according to element: | 4 |
| Outer pipe diameter drainage: | 50 mm |
| Pre-assembled element: | Yes |
| Pre-assembled flushing unit: | Yes |
| Pre-pressure: | 0.5 to 5 bar |
| Programmable with remote control: | No |
| Self-bearing construction: | Yes |
| Size of tap water connection: | 1/2 inch |
| Suitable for drywall: | Yes |
| Suitable for electrical operation: | No |
| Suitable for infrared operation: | No |
| Suitable for manual operation: | Yes |
| Suitable for pneumatic operation: | No |
| Suitable for radar operation: | No |
| Suitable for sanitary installation wall system: | No |
| Suitable for solid wall: | No |
| Surface protection: | Coated |
| Tap water connection: | External thread |
| Warranty: | 10 years |
| Width: | 380 to 380 mm |
| With building management system connection: | No |
| With drainage bend: | Yes |
| With inlet fittings: | Yes |
| With mounting material for the element: | Yes |
| With pre-flushing: | No |
| With siphon: | No |
| With spacer tube for radar antenna: | No |
| With urinal attachment materials: | Yes |
| Product number: | Description | Image |
|---|---|---|
| 8050887145 | Inspection opening protection, front |
|
