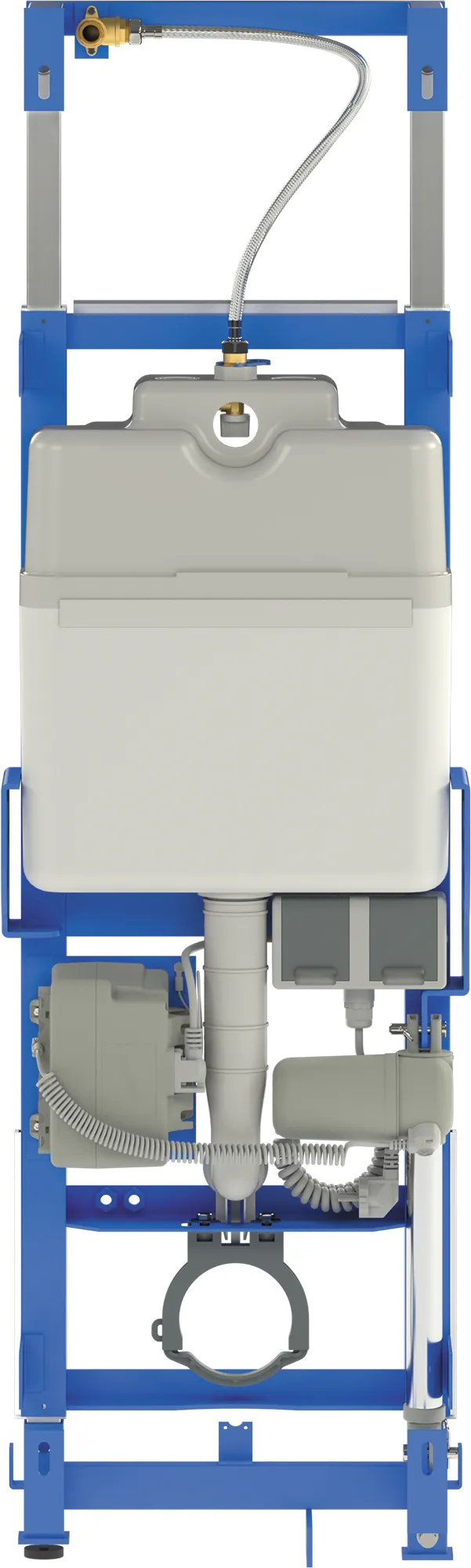

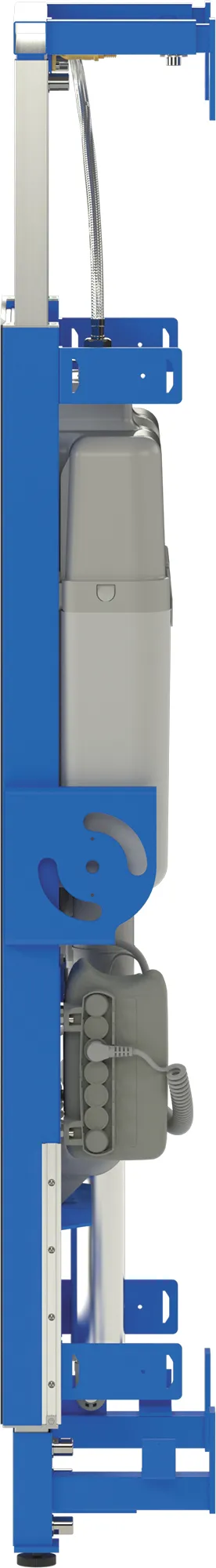

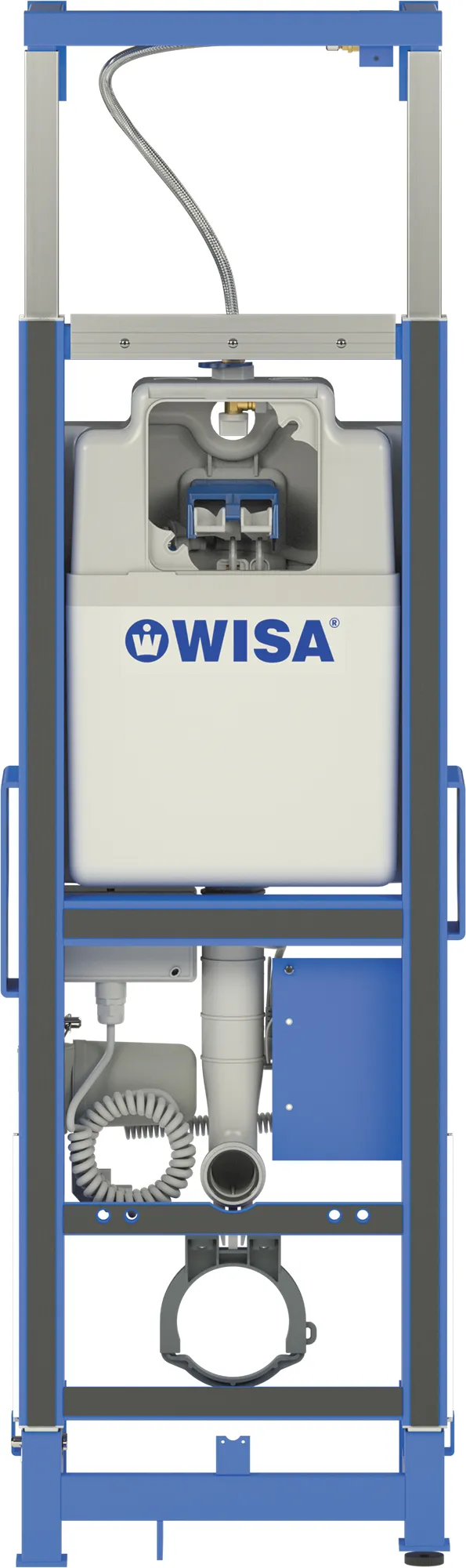

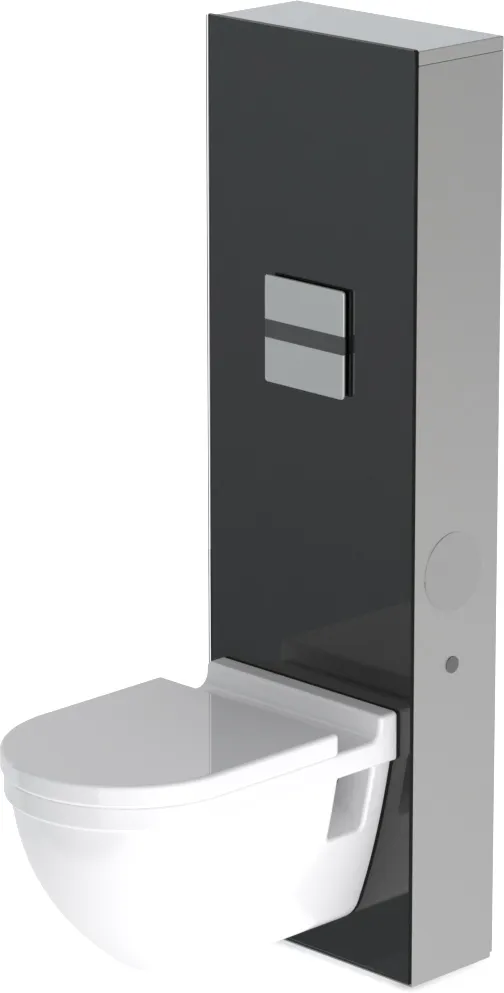

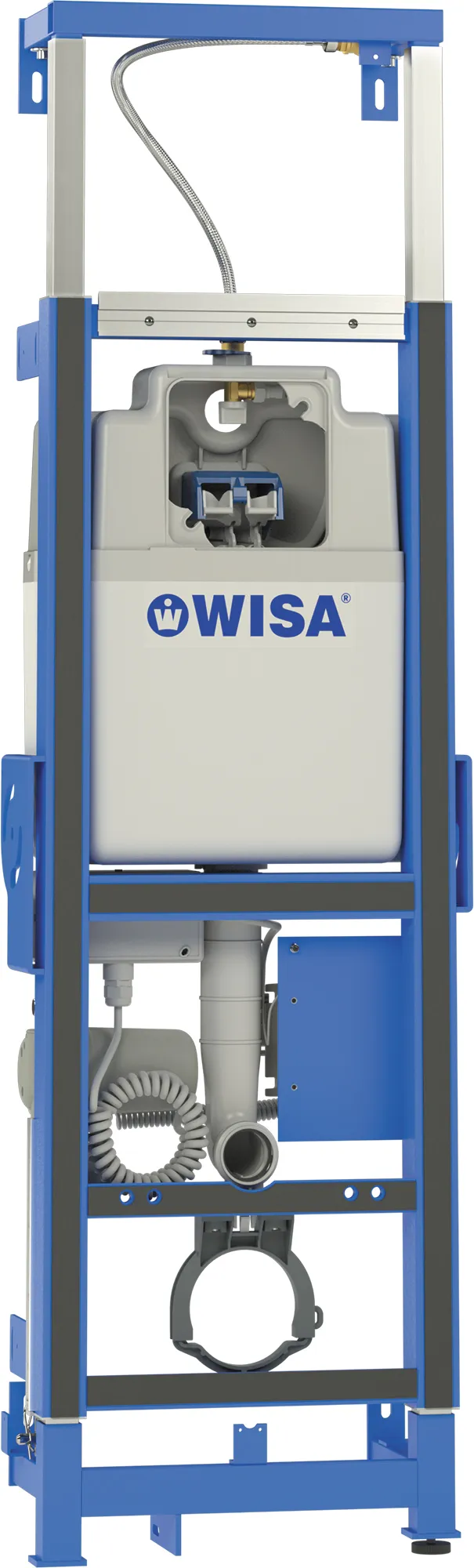

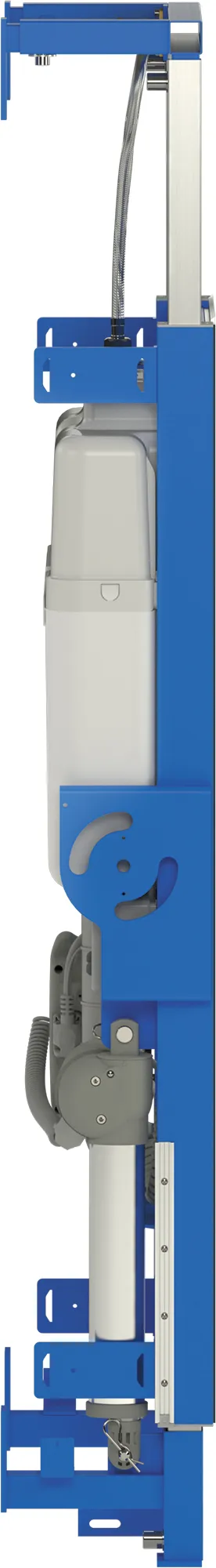

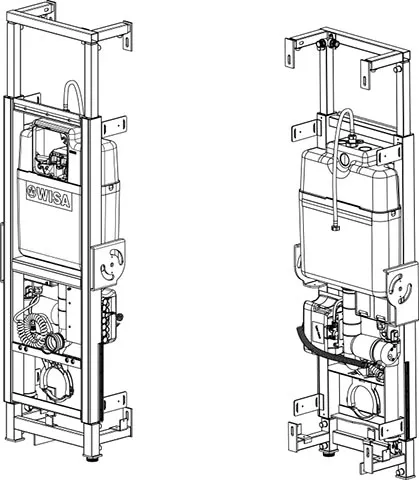

VARIOTRONIC

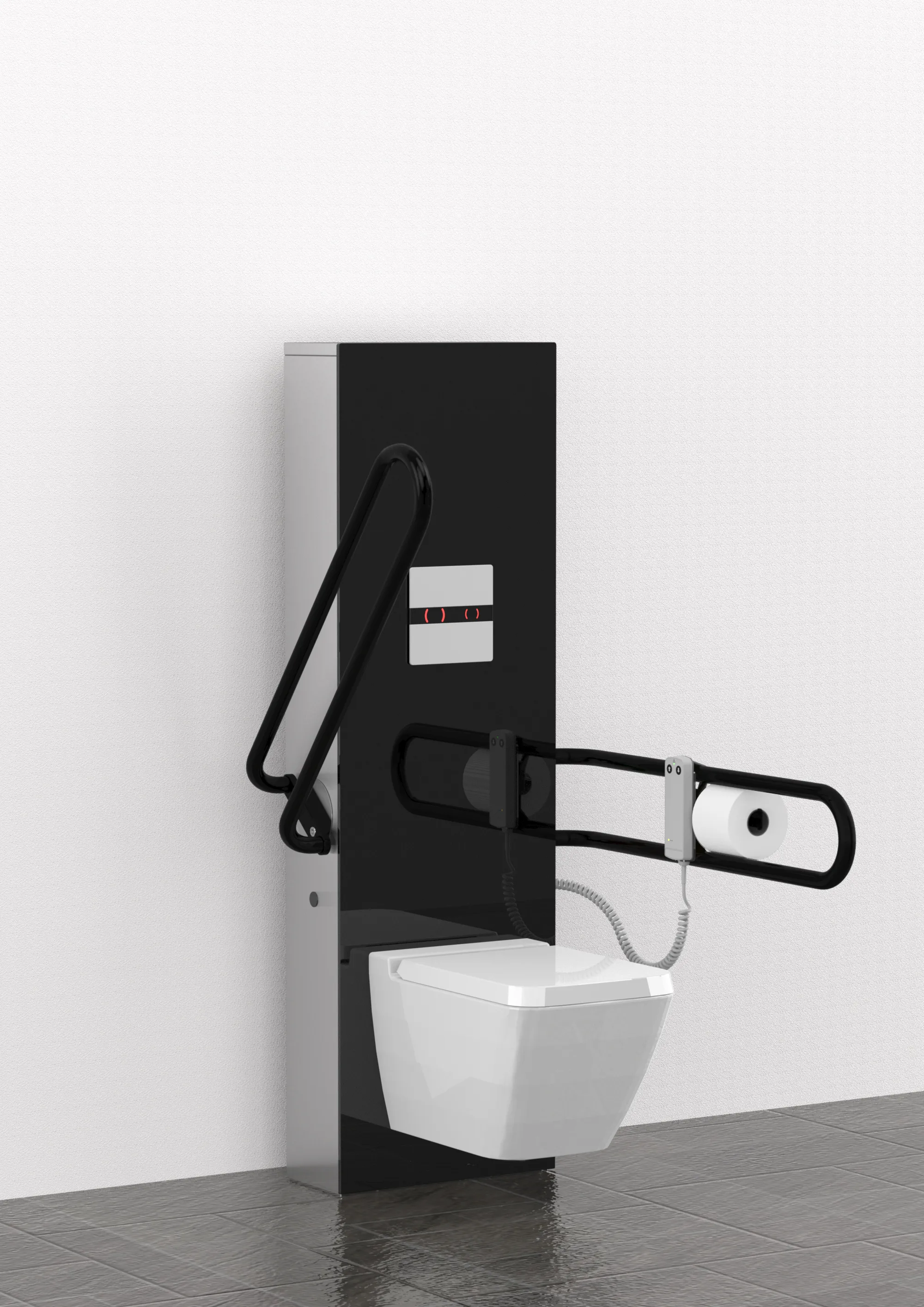

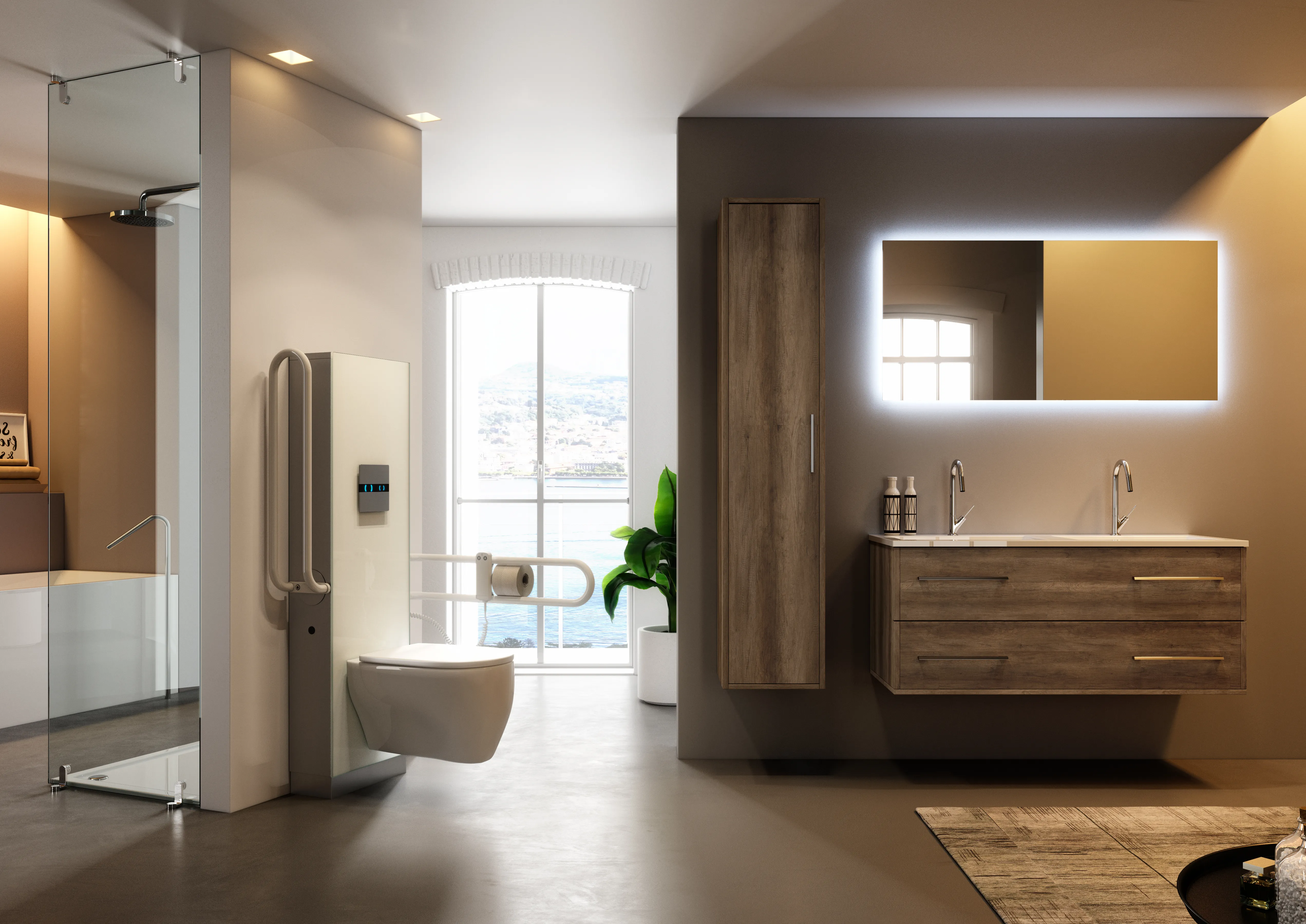

Experience the perfect blend of style and durability with stainless steel sides and top, safety glass front in white or black, and the option to add foldable support brackets.
Product number:
8050482101
EAN:
8711778200746
- The concealed wall-mounted system is so thin that manoeuvring next to it in a wheelchair is easy
- Aesthetically very attractive
- The sides and walls are finished in high-quality stainless steel
- Servicing and maintenance via the side
- Static load up to 400 kg
- People up to 180 kg can be raised
- The system is supplied with sides and top high-quality stainless steel plates
- Front element is available in white HPL and in white or black tampered glass
- Arm supports on the side can be completely folded up next to the frame for optimum transfer
- Arm supports move with the system
- Arm supports are easy to attach/dismantle
- The concealed wall-mounted system is easy to assemble
- Available with any control panel, mechanical, pneumatic or electronic
| Adjustable depth: | No |
|---|---|
| Adjustable flushing water quantity: | Yes |
| Adjustable height: | No |
| Adjustable toilet height: | Yes |
| Adjustable width: | No |
| Battery power supply: | No |
| Centre distance of toilet attachment: | 18 cm and 23 cm |
| Connection voltage: | 230 V |
| Declaration of Performance: | 14055 |
| Degree of protection (IP): | IP44 |
| Depth: | 200 to 200 mm |
| Flushing: | Two quantities |
| Flushing water quantity: | 3 to 6 l |
| Frame suitable for wc with offset >60cm: | Yes |
| Frame suitable for wc with offset >60cm: | Yes |
| Height: | 1400 to 1400 mm |
| KIWA certified: | Yes |
| Load capacity >=400 kg according to EN 997: | Yes |
| Material: | Steel |
| Material flushing reservoir: | Plastic |
| Max. flushing water quantity: | 7.5 l |
| Min. flushing water quantity: | 3 l |
| Min. shelf height: | 1400 mm |
| Number of tap water connections: | 1 |
| Outer pipe diameter drainage: | 90 mm |
| Programmable with remote control: | No |
| Quality class flushing reservoir: | Polypropylene (PP) |
| Reservoir type: | WISA XS |
| Self-bearing construction: | Yes |
| Series: | XS |
| Size of tap water connection: | 1/2 inch |
| Sound class according to EN ISO 3822: | Group I, <=20 dB(A) |
| Spacer under reservoir: | No |
| Suitable for drywall: | Yes |
| Suitable for electrical operation: | Yes |
| Suitable for flushing flow throttling: | Yes |
| Suitable for front operation: | Yes |
| Suitable for infrared operation: | Yes |
| Suitable for manual operation: | Yes |
| Suitable for pneumatic operation: | Yes |
| Suitable for radar operation: | No |
| Suitable for sanitary installation wall system: | No |
| Suitable for shelf operation: | No |
| Suitable for shower toilet: | Yes |
| Suitable for solid wall: | No |
| Suitable for toilets with a reduced contact area: | Yes |
| Surface protection: | Coated |
| Tap water connection: | External thread |
| Warranty: | 10 years |
| Width: | 420 to 420 mm |
| With anti-condensation insulation: | Yes |
| With bracket suitable for floor mounting: | No |
| With bracket suitable for high wall mounting: | Yes |
| With bracket suitable for low wall mounting: | Yes |
| With building management system connection: | No |
| With contact sound insulation set: | Yes |
| With control panel: | No |
| With drainage bend: | Yes |
| With electrical connection: | Yes |
| With fan connection: | No |
| With flushing bend: | Yes |
| With front cladding: | No |
| With inlet and outlet fittings: | Yes |
| With mounting material for the element: | Yes |
| With mounting material for the toilet: | Yes |
| With stop valve: | Yes |
| Product number: | Description | Image |
|---|---|---|

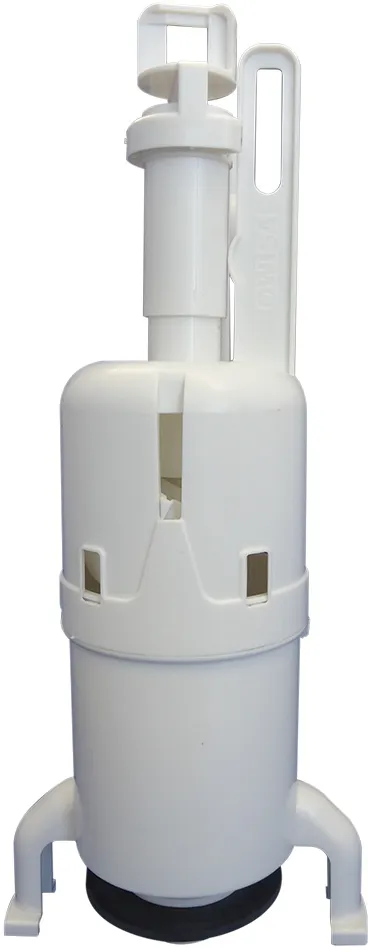

| 8050801522 | Flush valve (DFF) |
 |

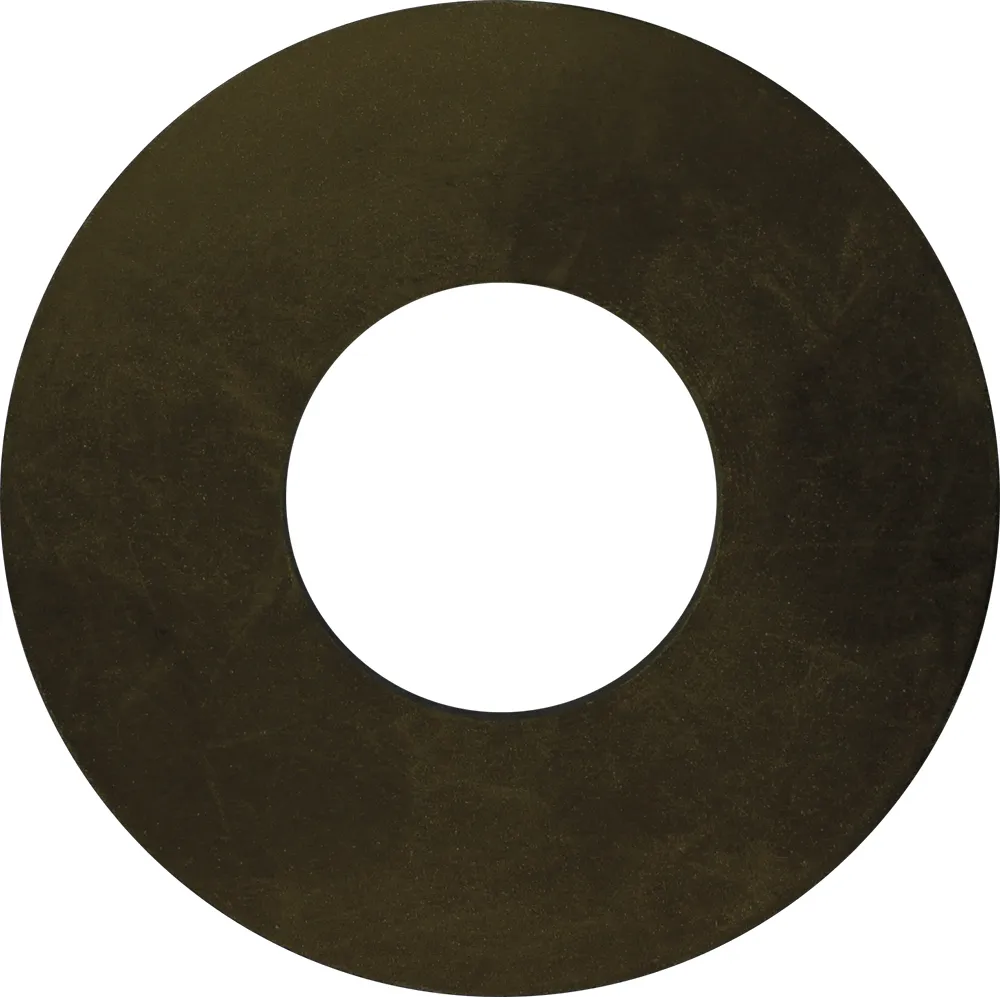

| 1411988440 | Flush valve rubber gasket 28 x 65 x 3 mm, black |
 |

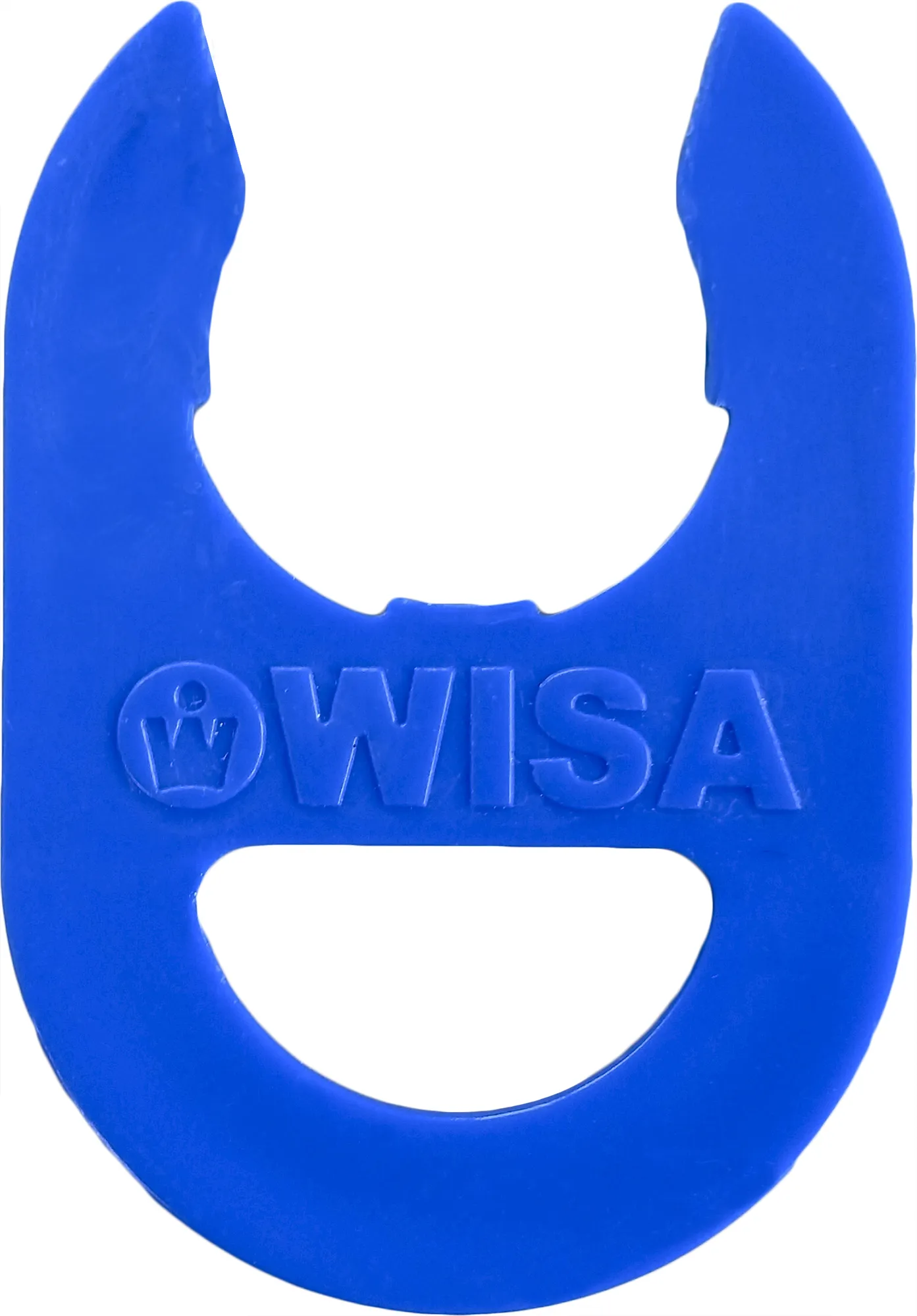

| 8050887175 | Tightening nut |
 |
| 8050887113 | Cistern lid, cisterns XS, 380, 3800 |
 |

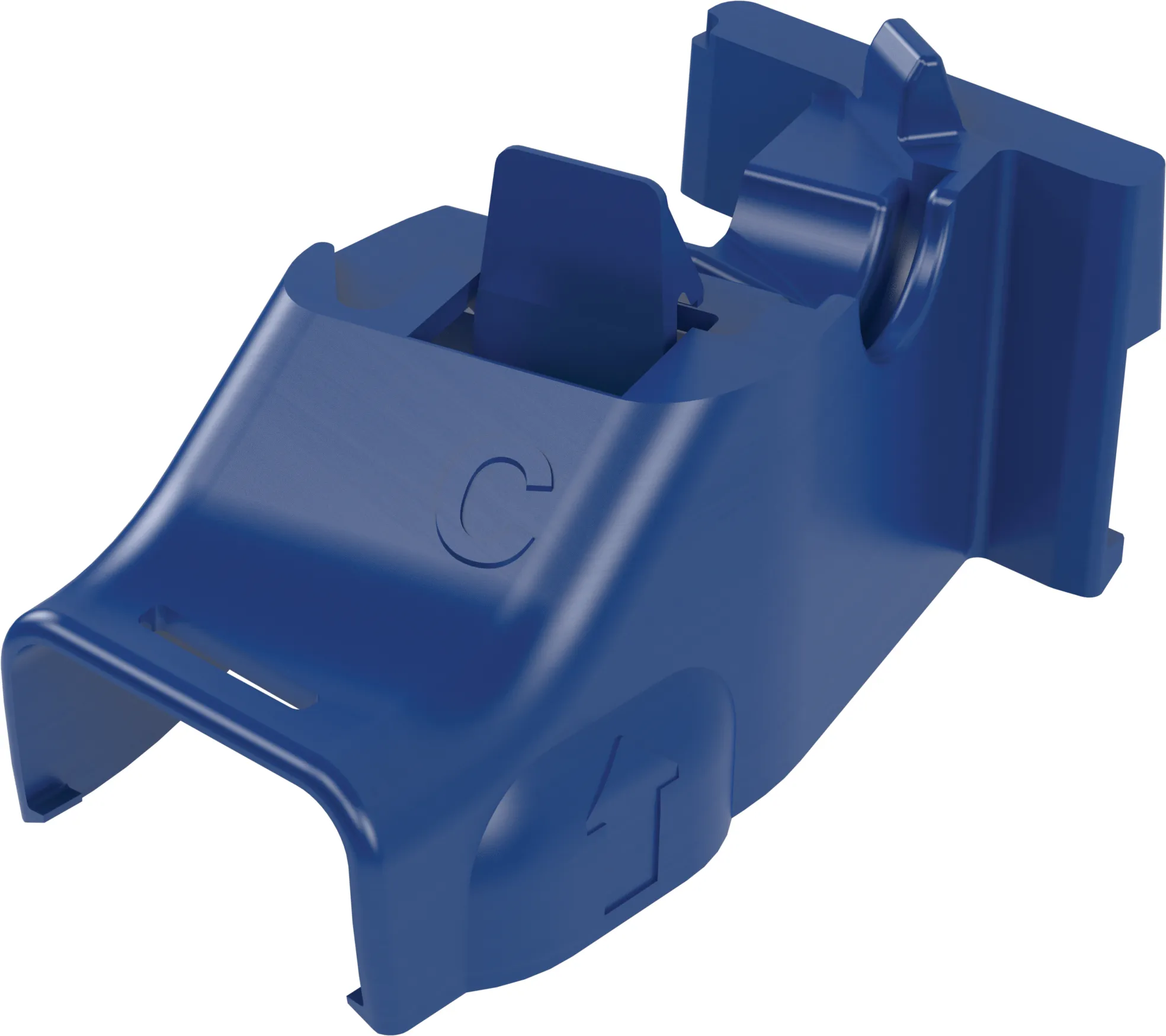

| 8050887079 | Bridge for fill valve |
 |

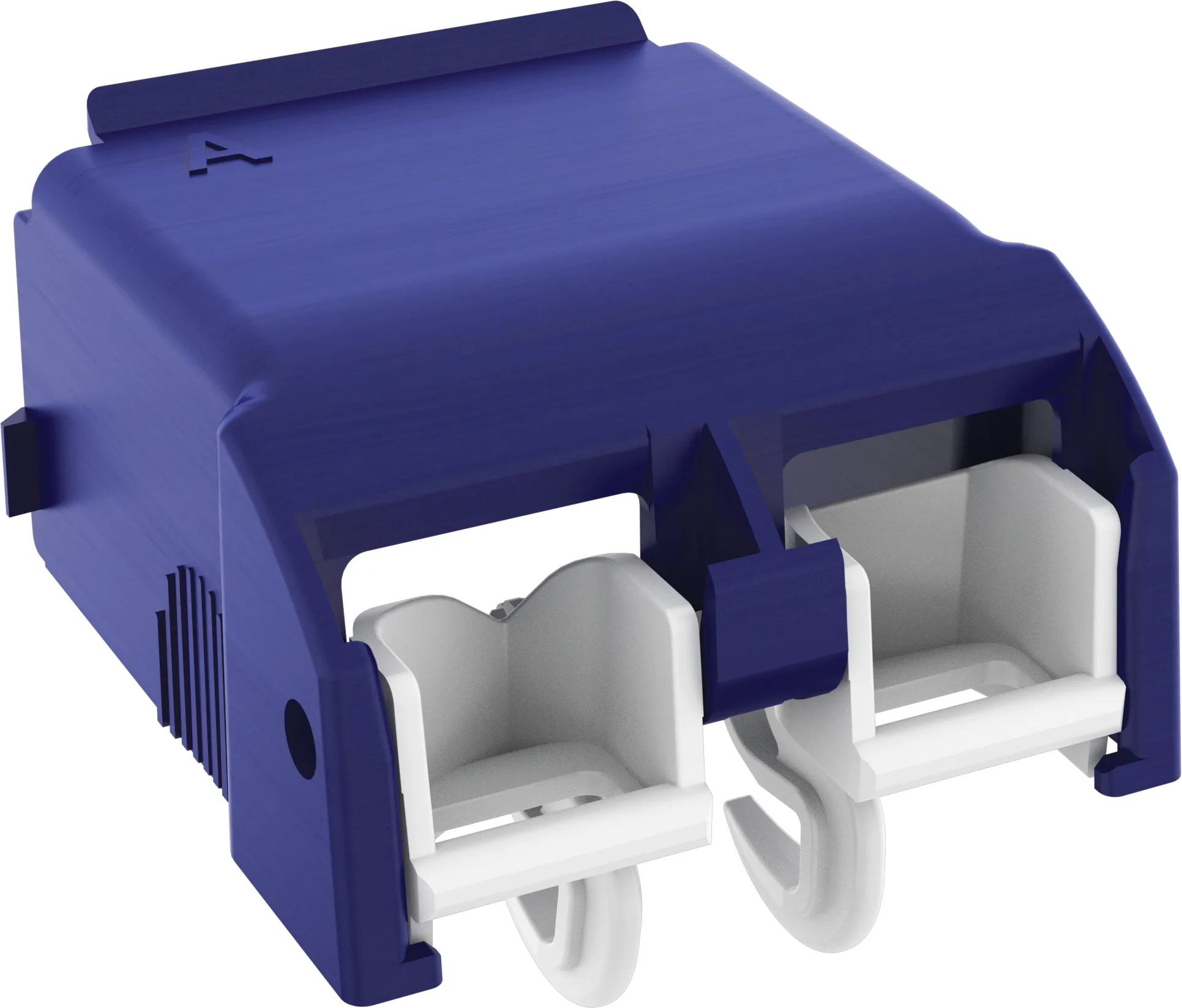

| 8050390034 | Clamp with control hooks, cisterns 3800/380, mechanical |
 |

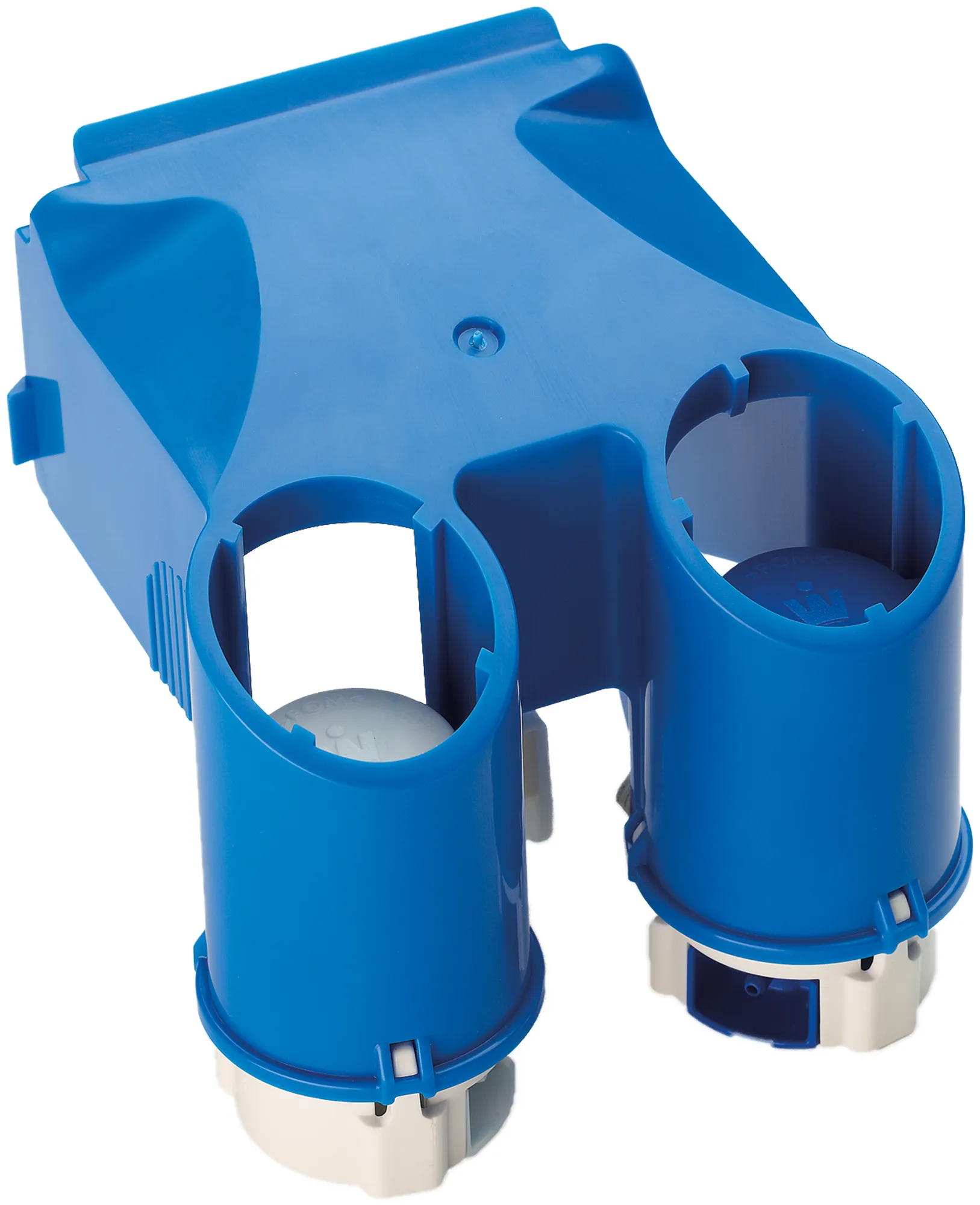

| 8050390032 | Clamp with control hooks, pneumatic |
 |

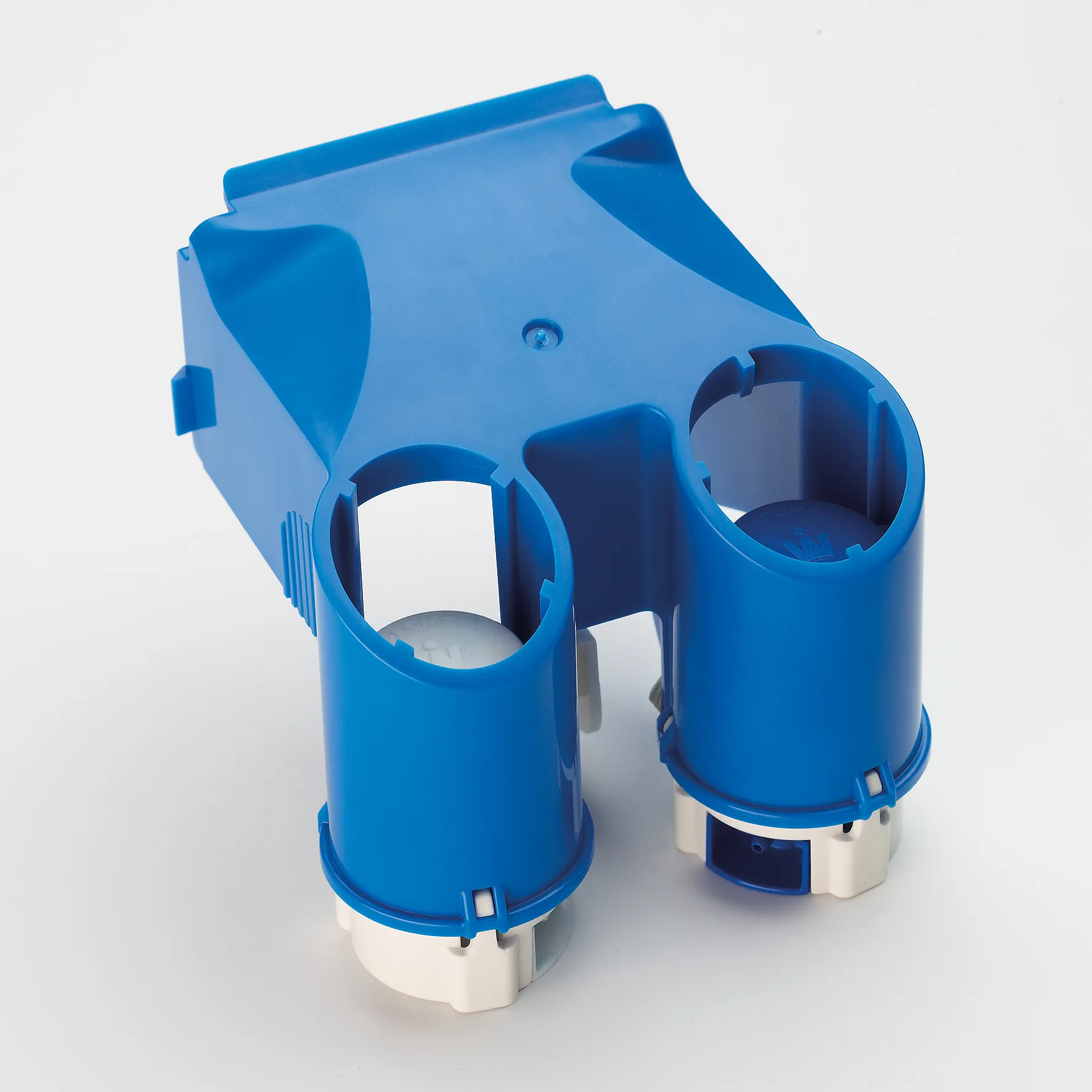

| 8050390051 | SF clamp with control hocks |
 |
| 8050390052 | DFF clamp with control hooks |
 |

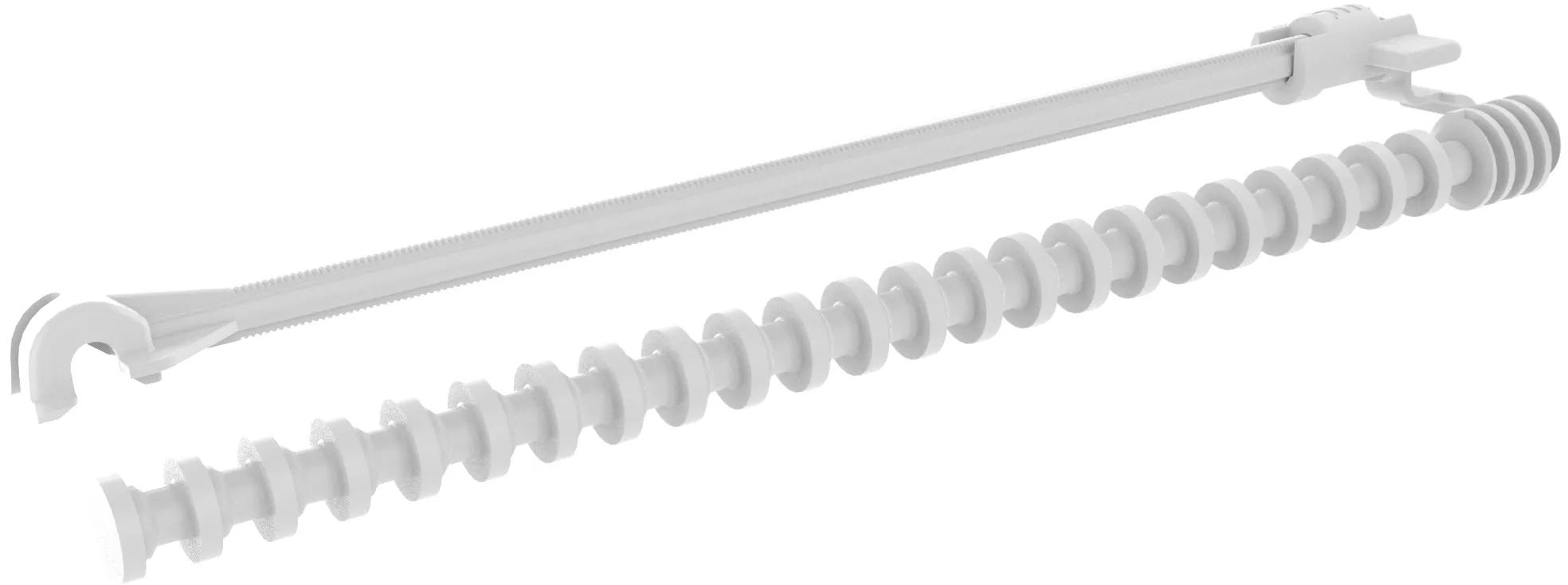

| 8050390109 | Mounting and regulation pin set for DUO plates, cisterns 3800/380 |
 |

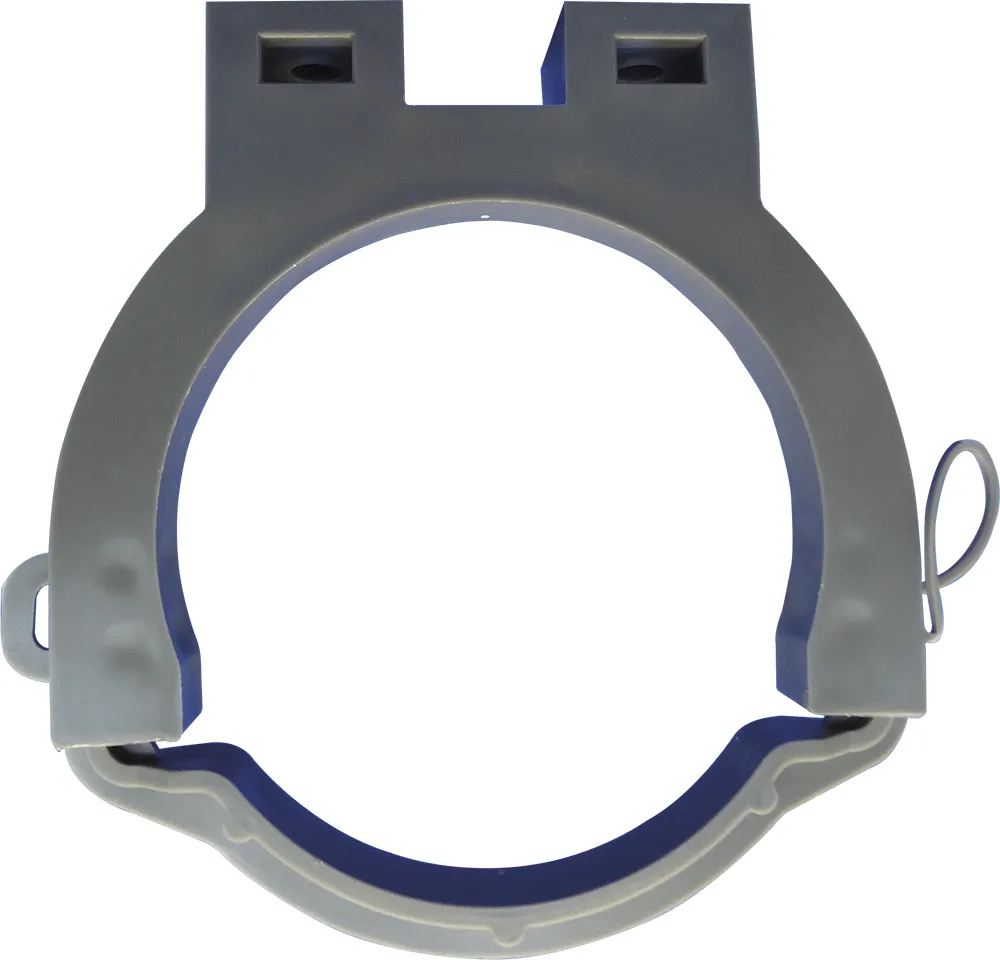

| 8050887097 | Clamp for mounting the drain elbow |
 |

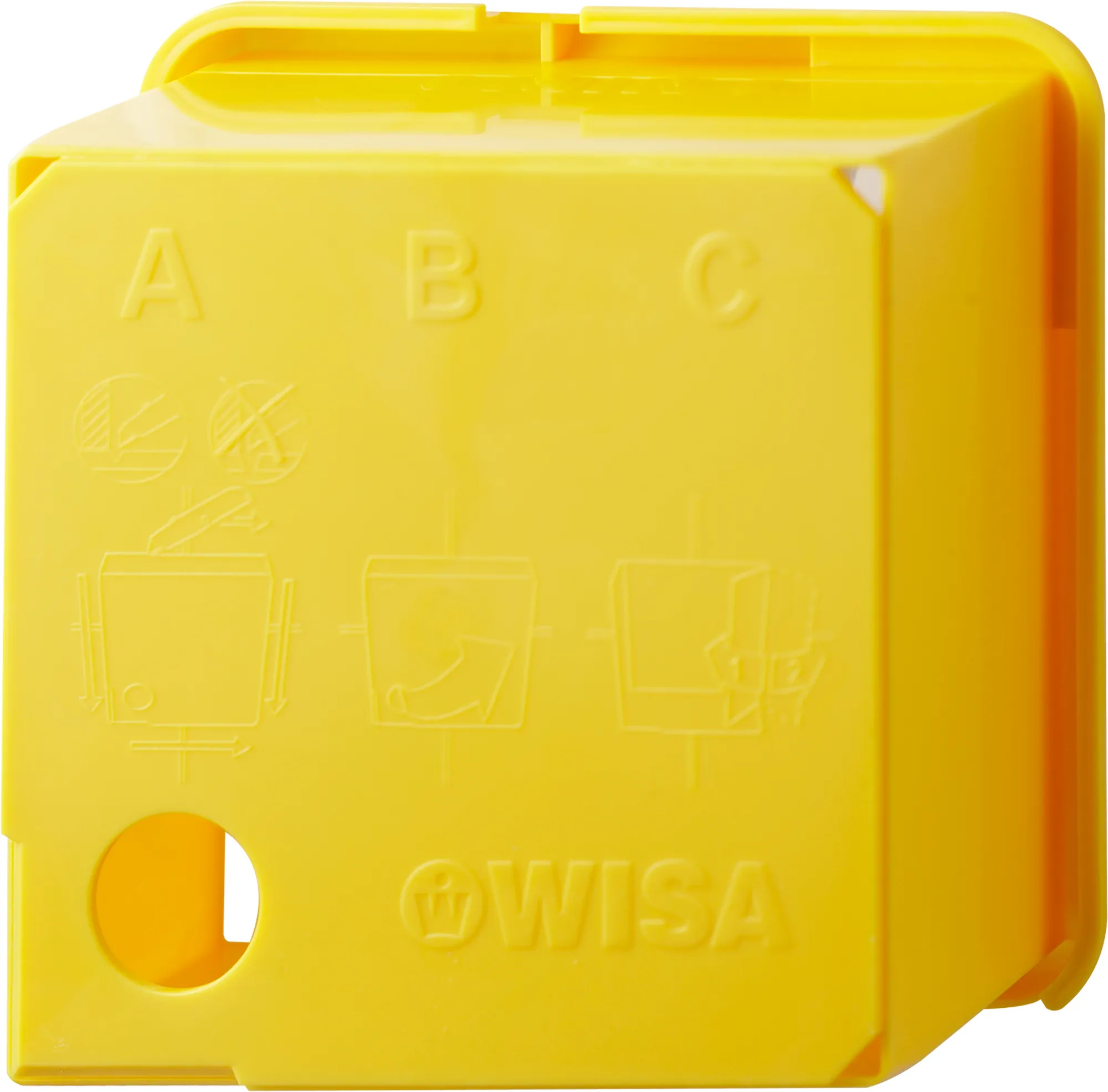

| 8050887145 | Inspection opening protection, front |
 |

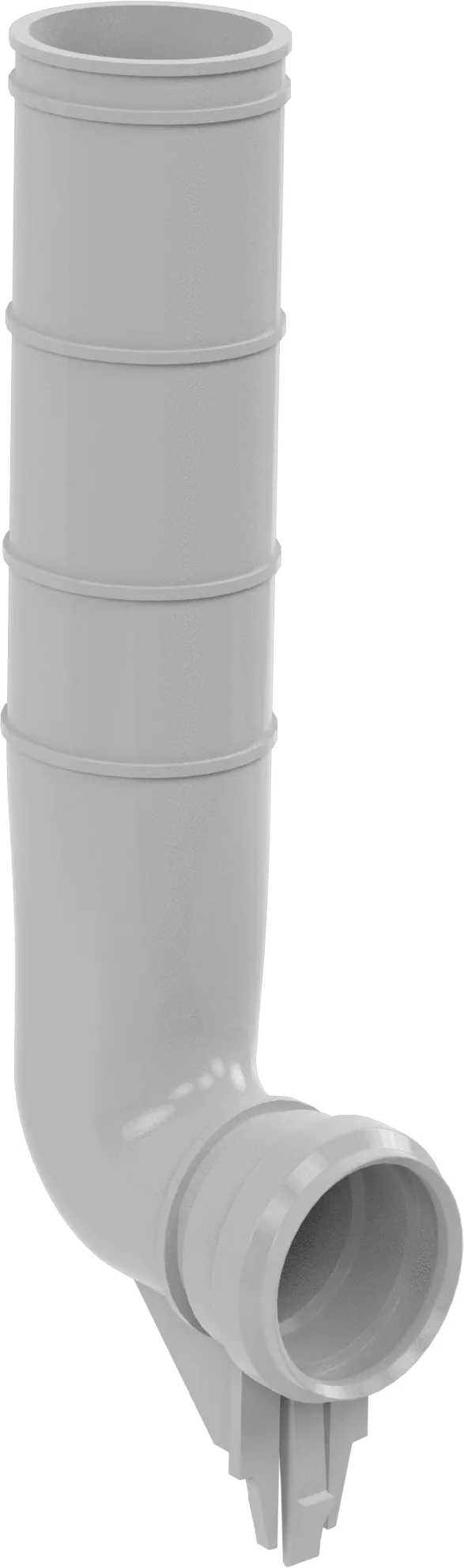

| 8050887355 | Flush pipe with tongue |
 |

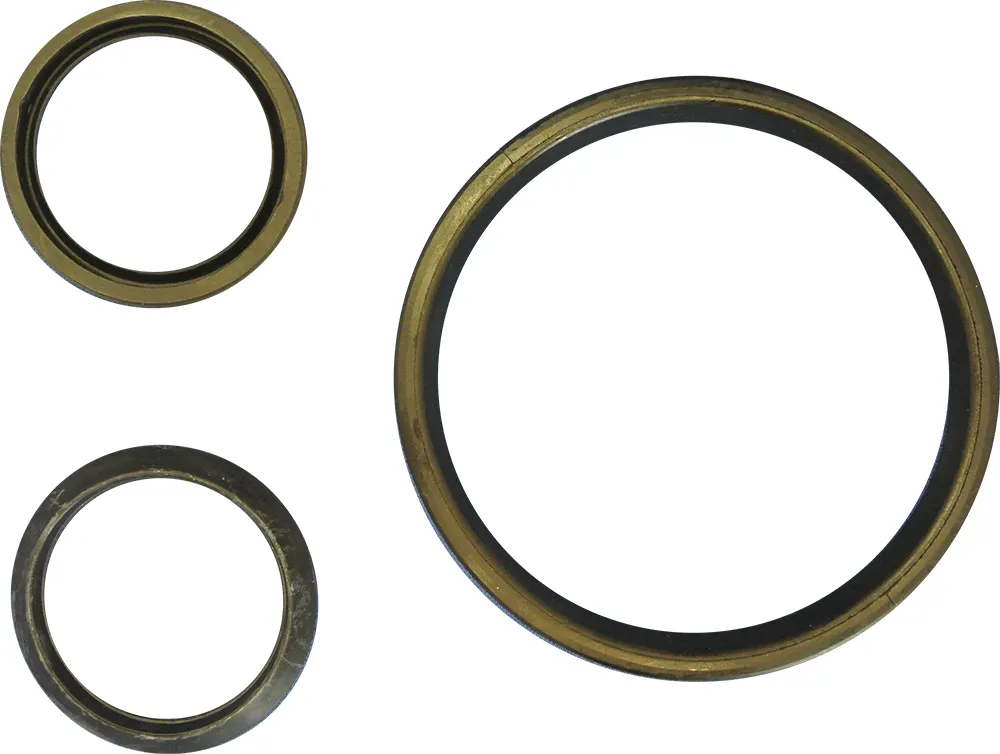

| 8050390061 | Set of rubber seals for 90 mm drain pipe and drain elbow |
 |

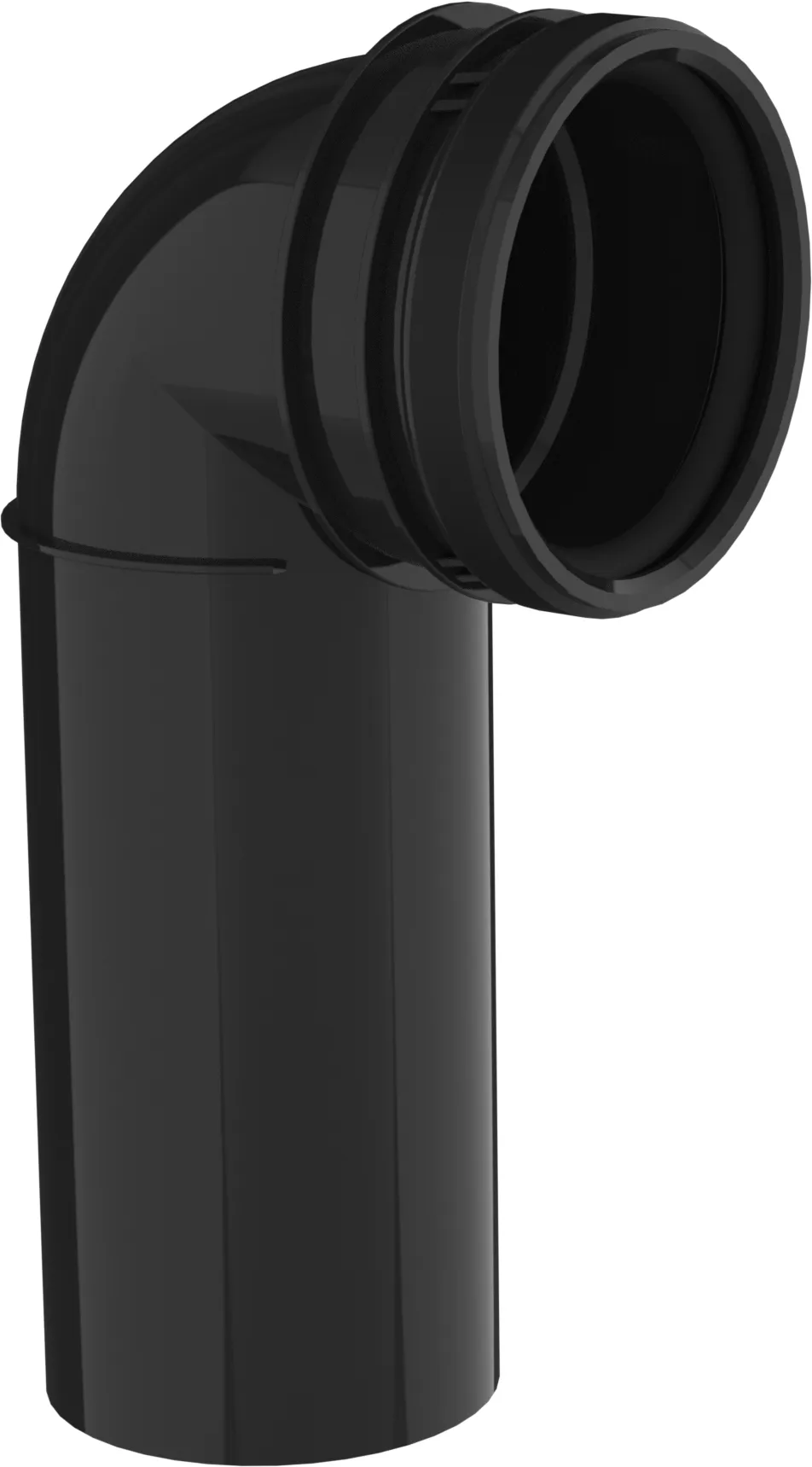

| 8050390090 | Discharge elbow Ø 90/90 mm |
 |

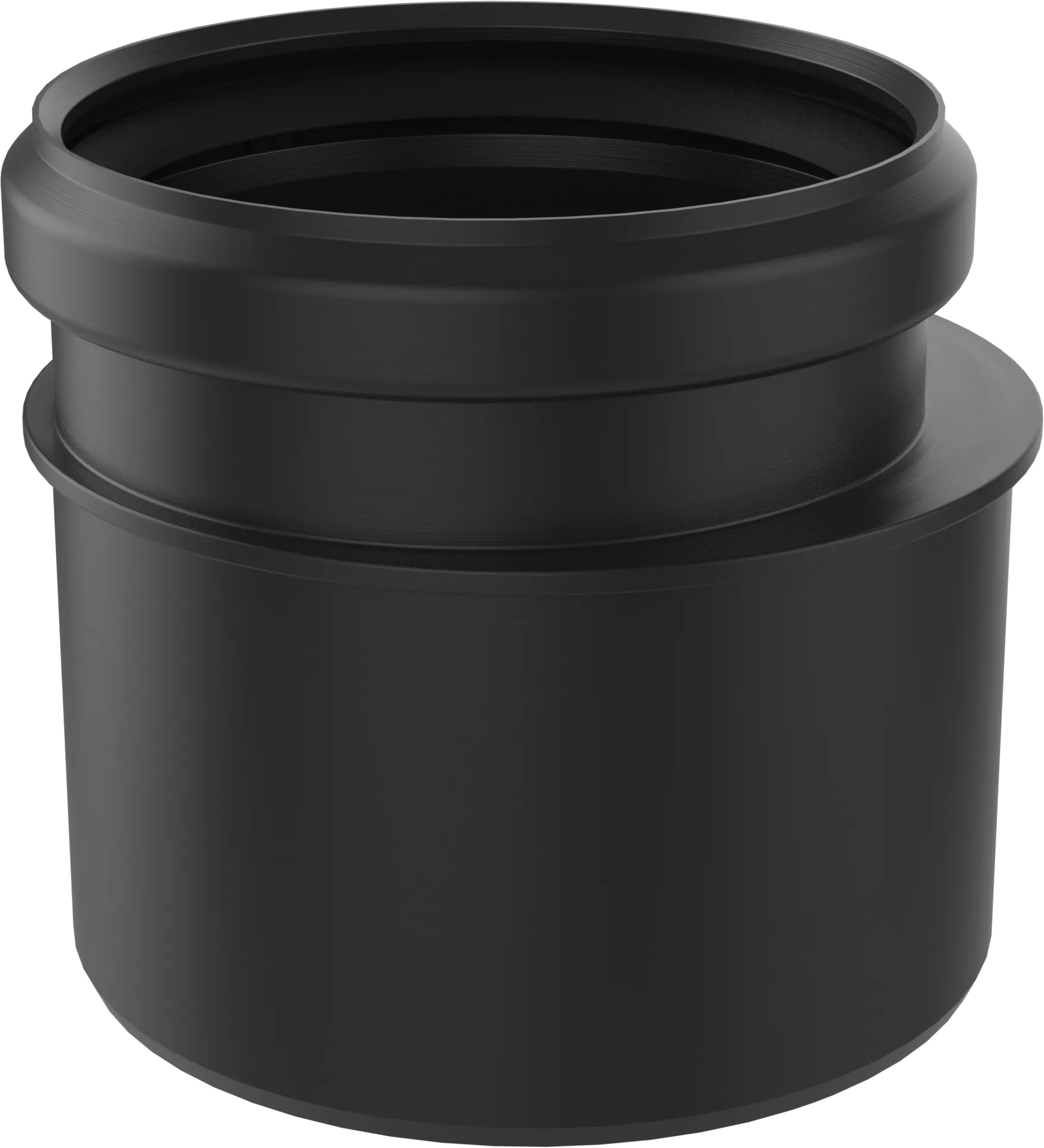

| 8050390091 | Adapter reduction piece Ø 90/110 mm |
 |

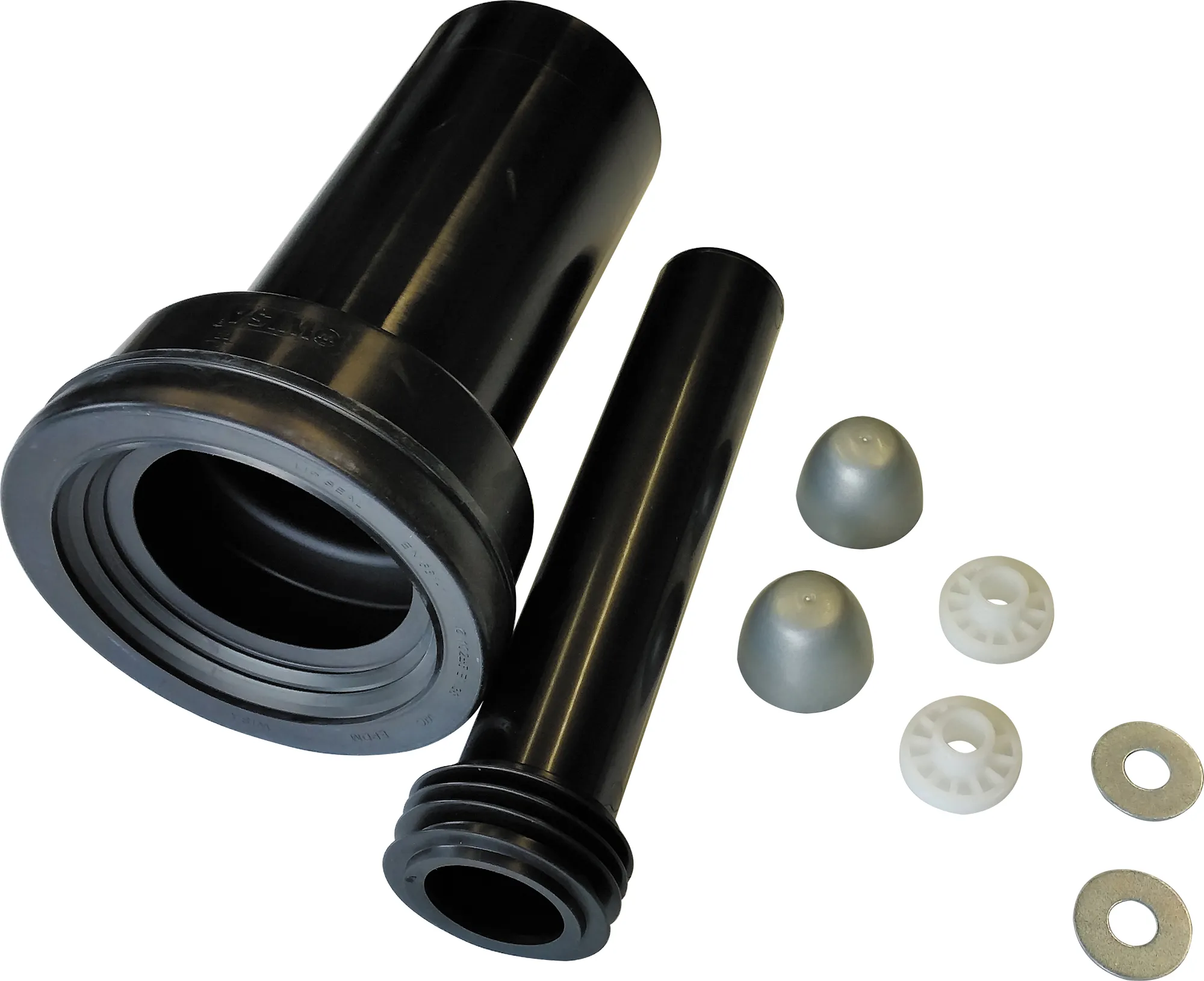

| 8050390080 | WC connection kit Ø 90 mm, L=230 mm |
 |

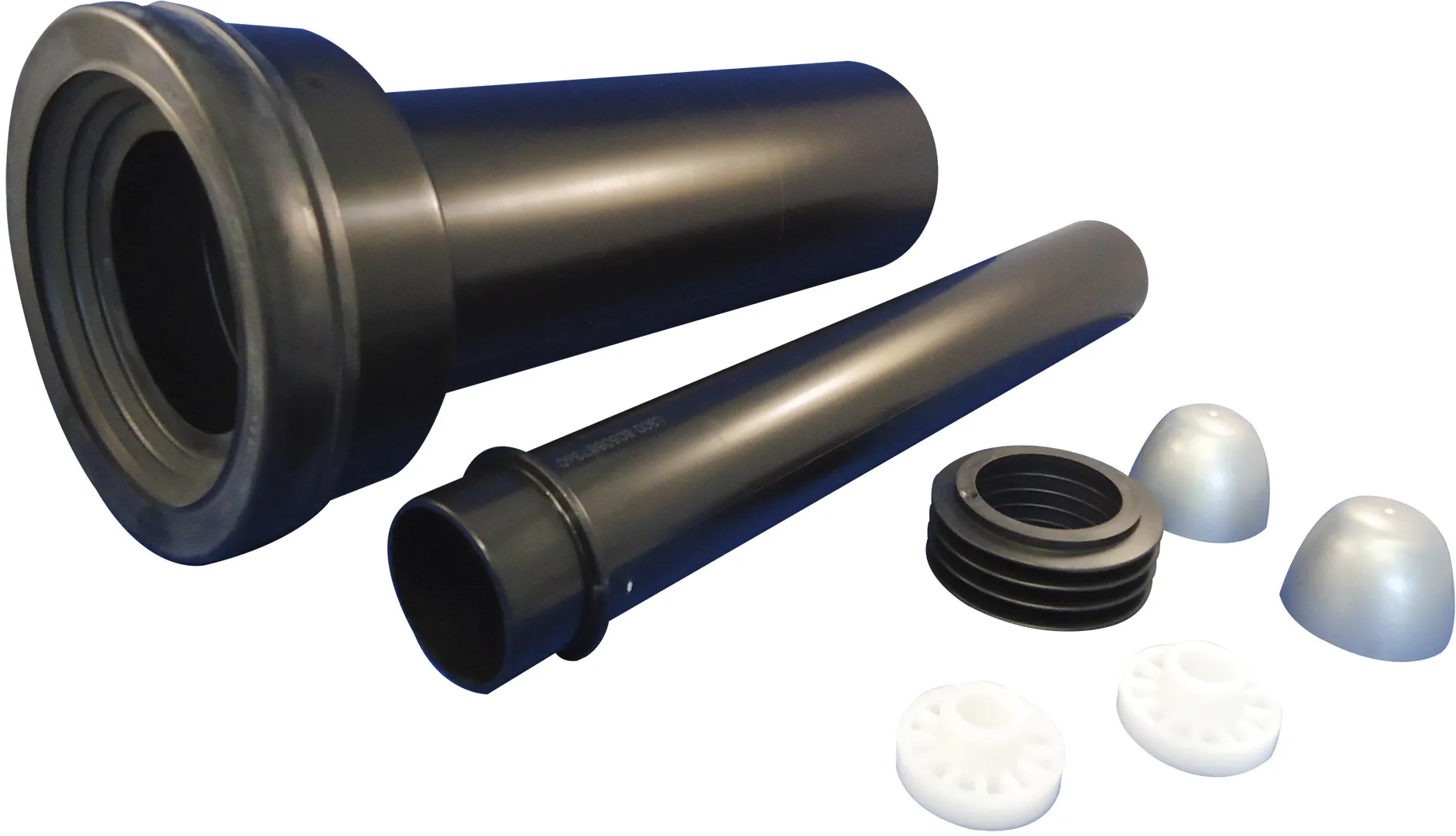

| 8050390081 | Extra long WC connection kit Ø 90 mm, L=300 mm |
 |

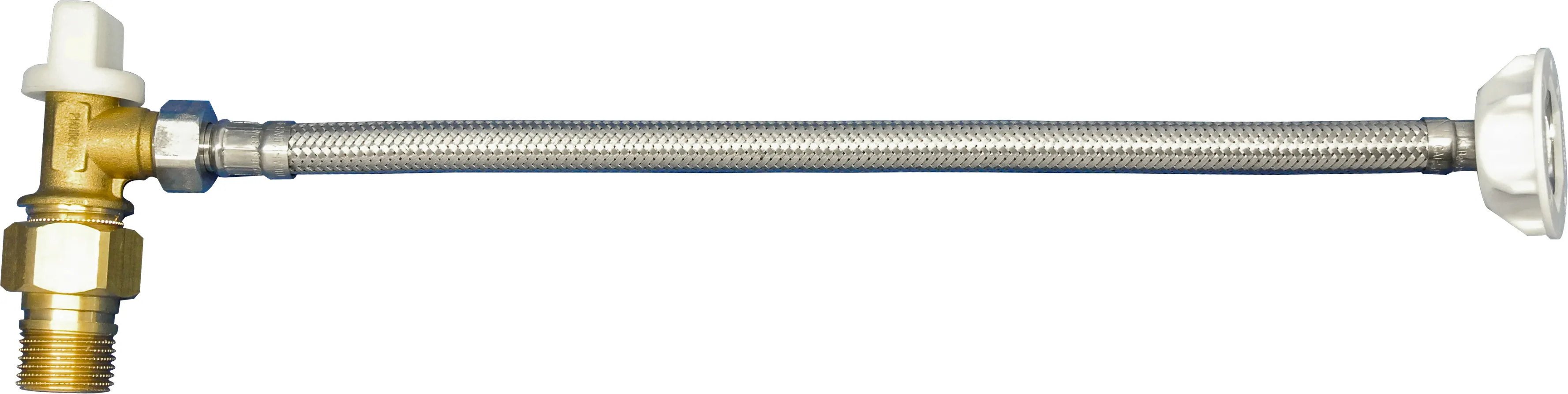

| 8050802329 | Flexible hose |
 |

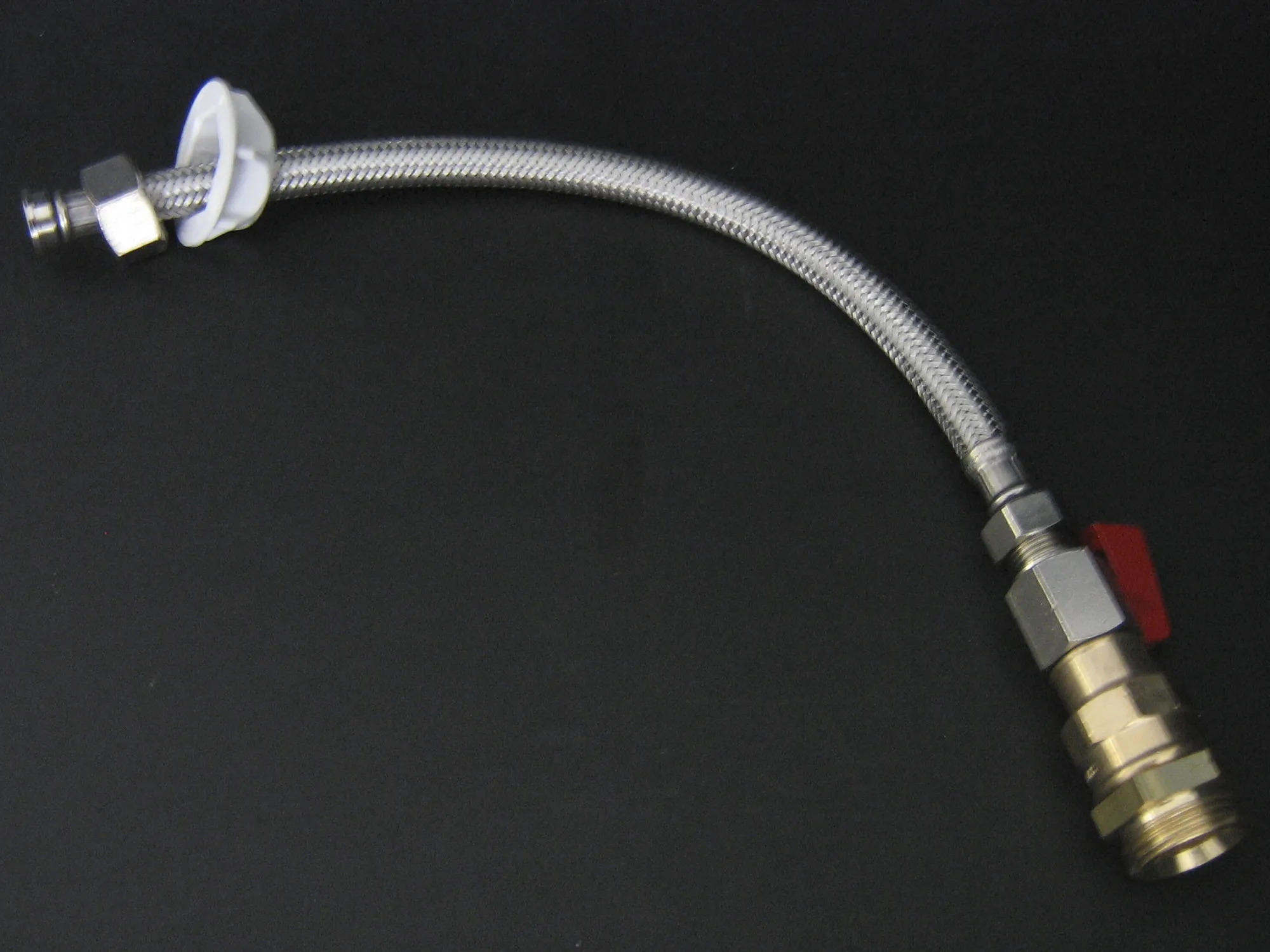

| 8050802325 | Flexible hose with G3/8 F - G1/2 Eurocone + ball valve |
 |

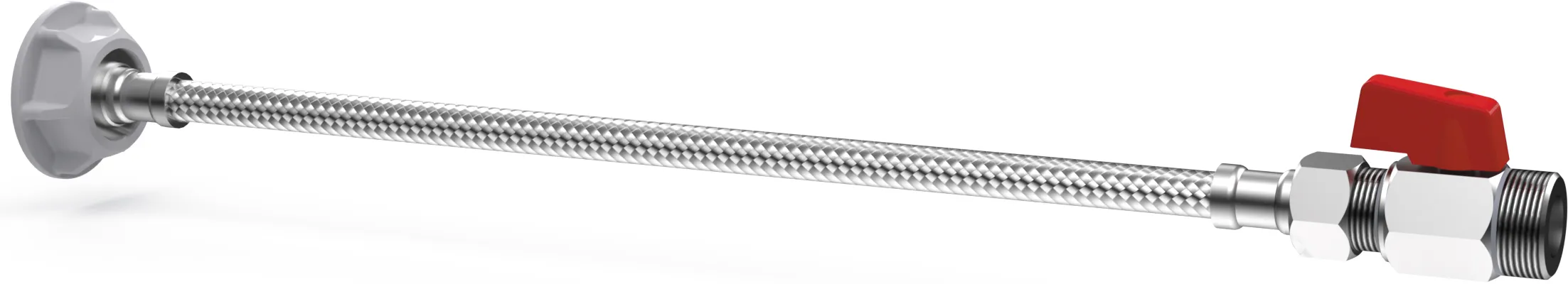

| 8050802326 | FLEXIBLE CONNECTION TUBE, G 1/2 INTERIOR |
 |
