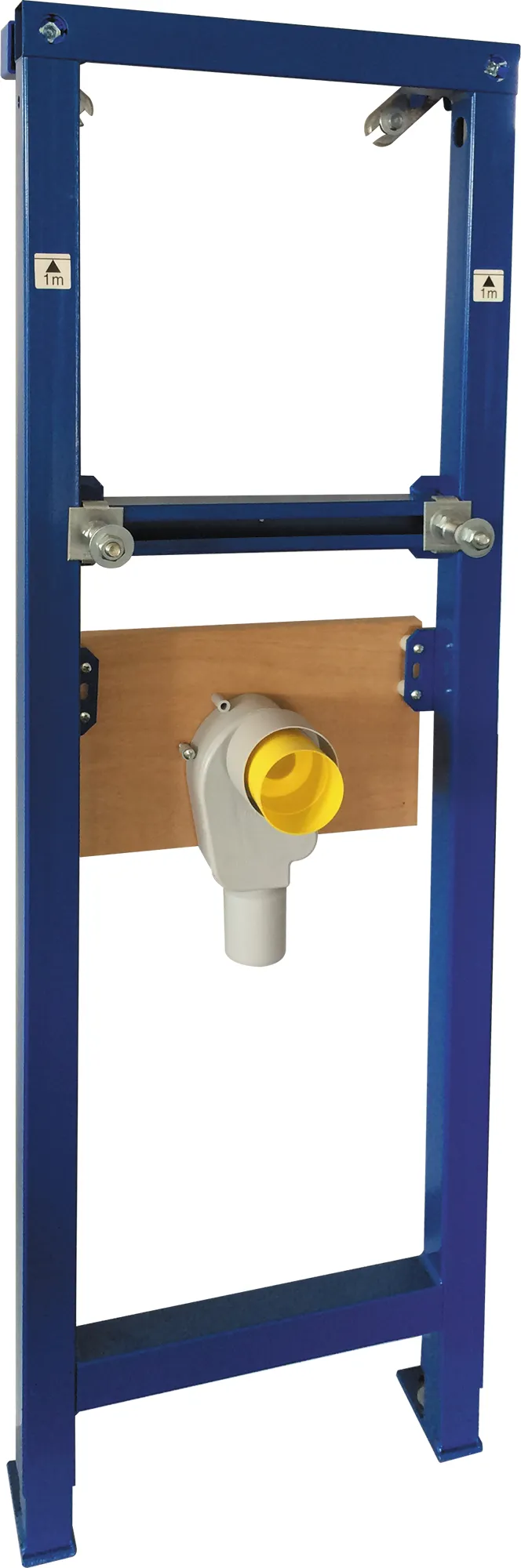

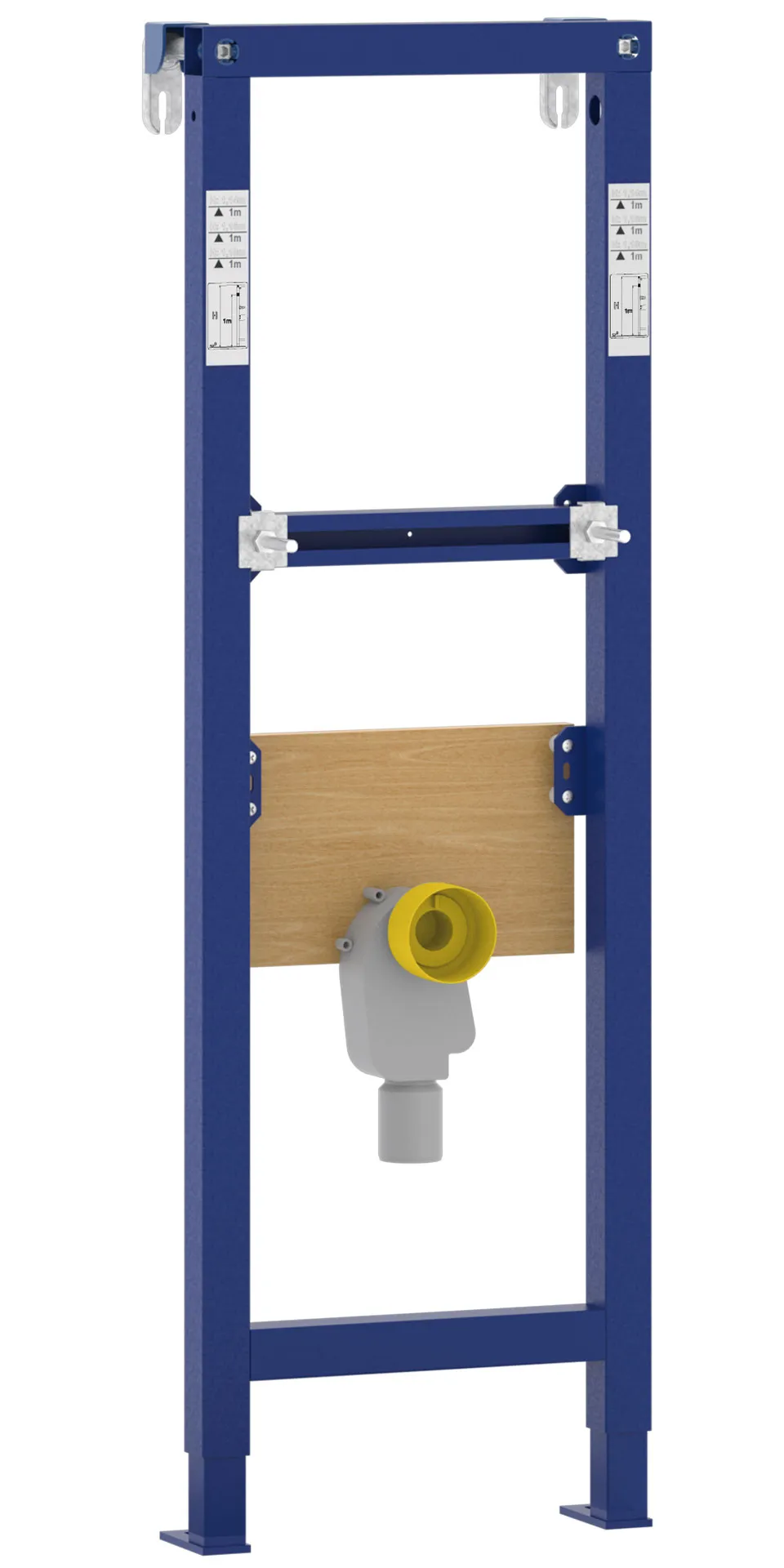

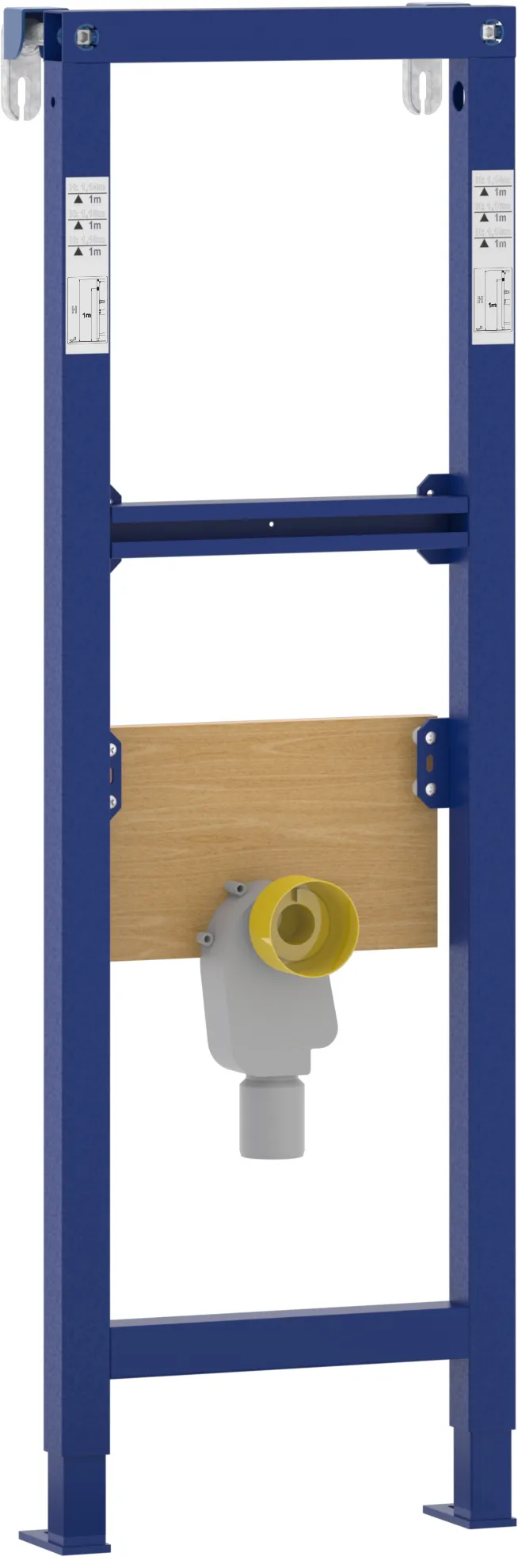

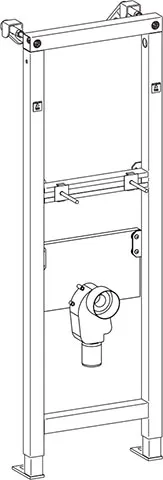

Washbasin frame 380 concealed trap

In addition to concealed cisterns and urinal elements, we provide elements for various other applications that offer versatile solutions for different construction projects, whether they involve new buildings or renovations, whether in the private or public sector.
Our adjustable washbasin element ensure a secure and efficient installation for various washbasins.

Product number: 8050452723
EAN: 8711778121102


  • Wash basin support frame
  • Blue powder coated frame
  • Adjustable feet (20 cm)
  • Pre-assembled wall fixation kit 380 mm wide
  • Incl. fixation materials, trap elbow 40/50 mm
  • Max 280 mm offset for washbasin fixation
  • Available accessories: Fixation plate for wall mounted tap ware

Adjustable depth: Yes
Adjustable height: Yes
Adjustable washbasin height: Yes
Adjustable width: No
Depth: 135 to 200 mm
Height: 1120 to 1380 mm
Material: Steel
Outer pipe diameter drainage: 50 mm
Pre-assembled element: Yes
Self-bearing construction: Yes
Suitable for drywall: Yes
Suitable for sanitary installation wall system: No
Suitable for solid wall: No
Surface protection: Coated
Tap assembly method: Washbasin/top structure
Tap connecting plate adjustable: Yes
Warranty: 10 years
Width: 380 to 380 mm
With built-in siphon: Yes
With drainage bend: Yes
With mounting material for the element: Yes
With tap connecting plate: Yes
With washbasin attachment materials: Yes
