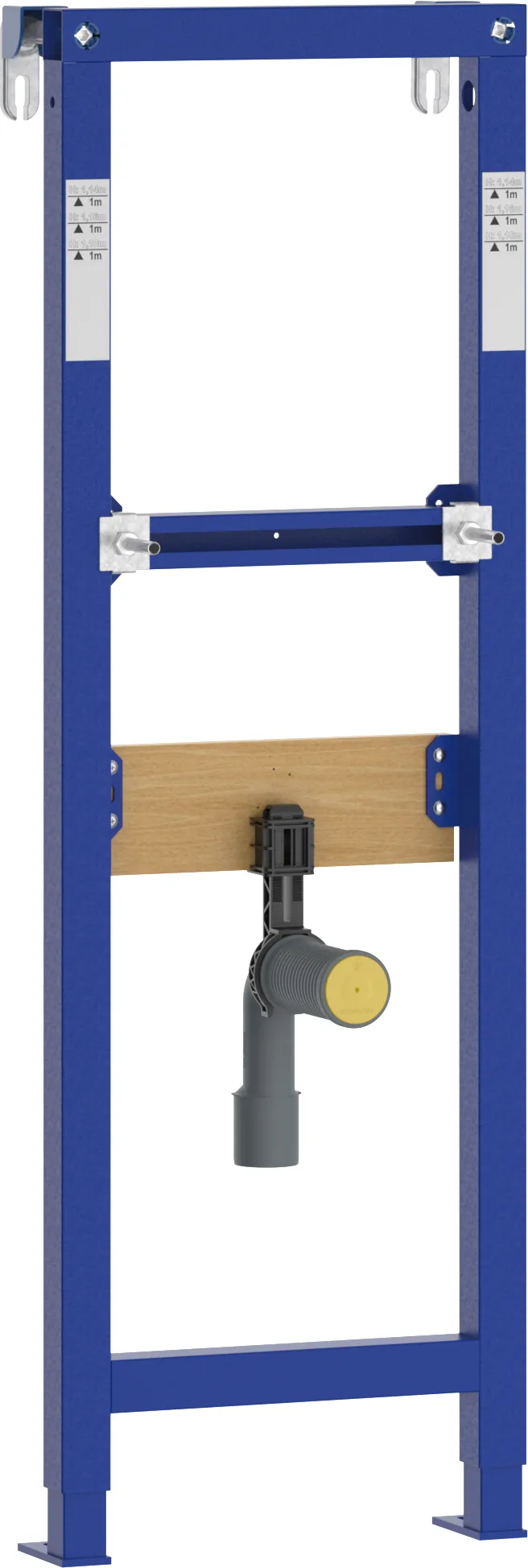

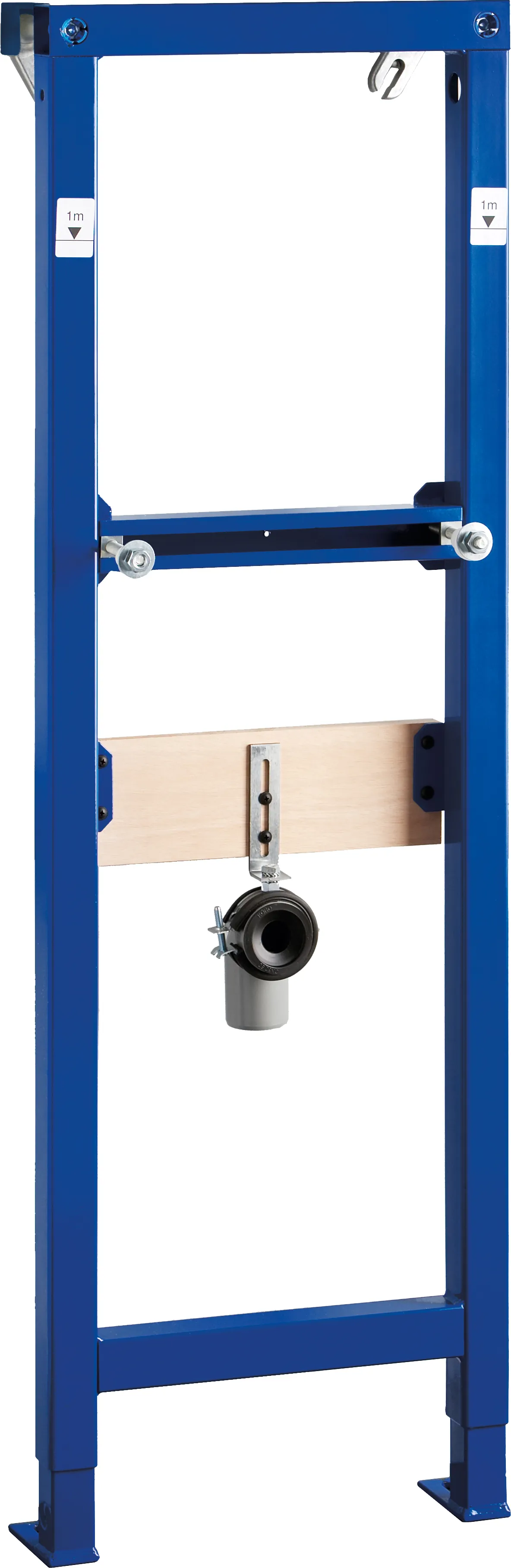

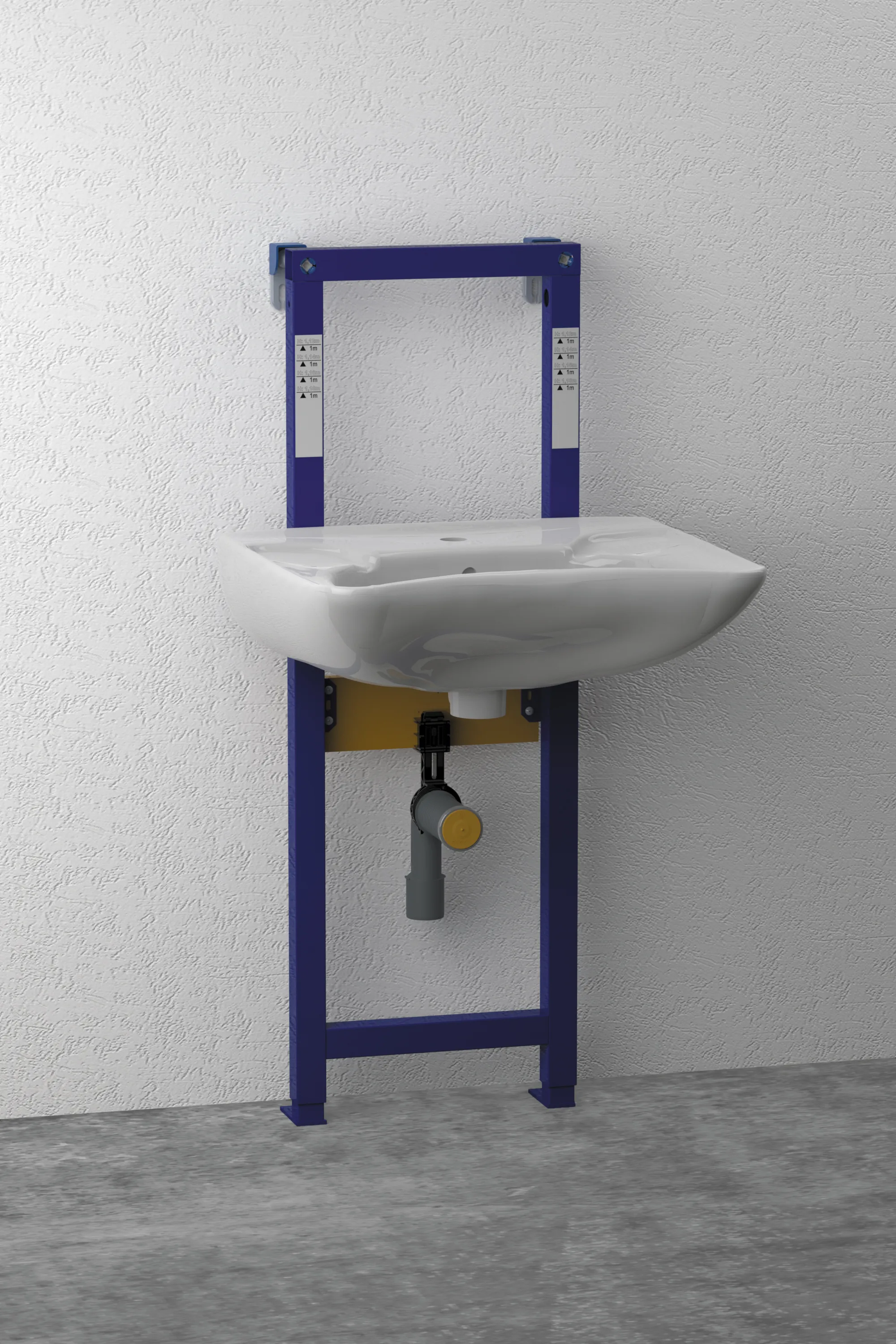

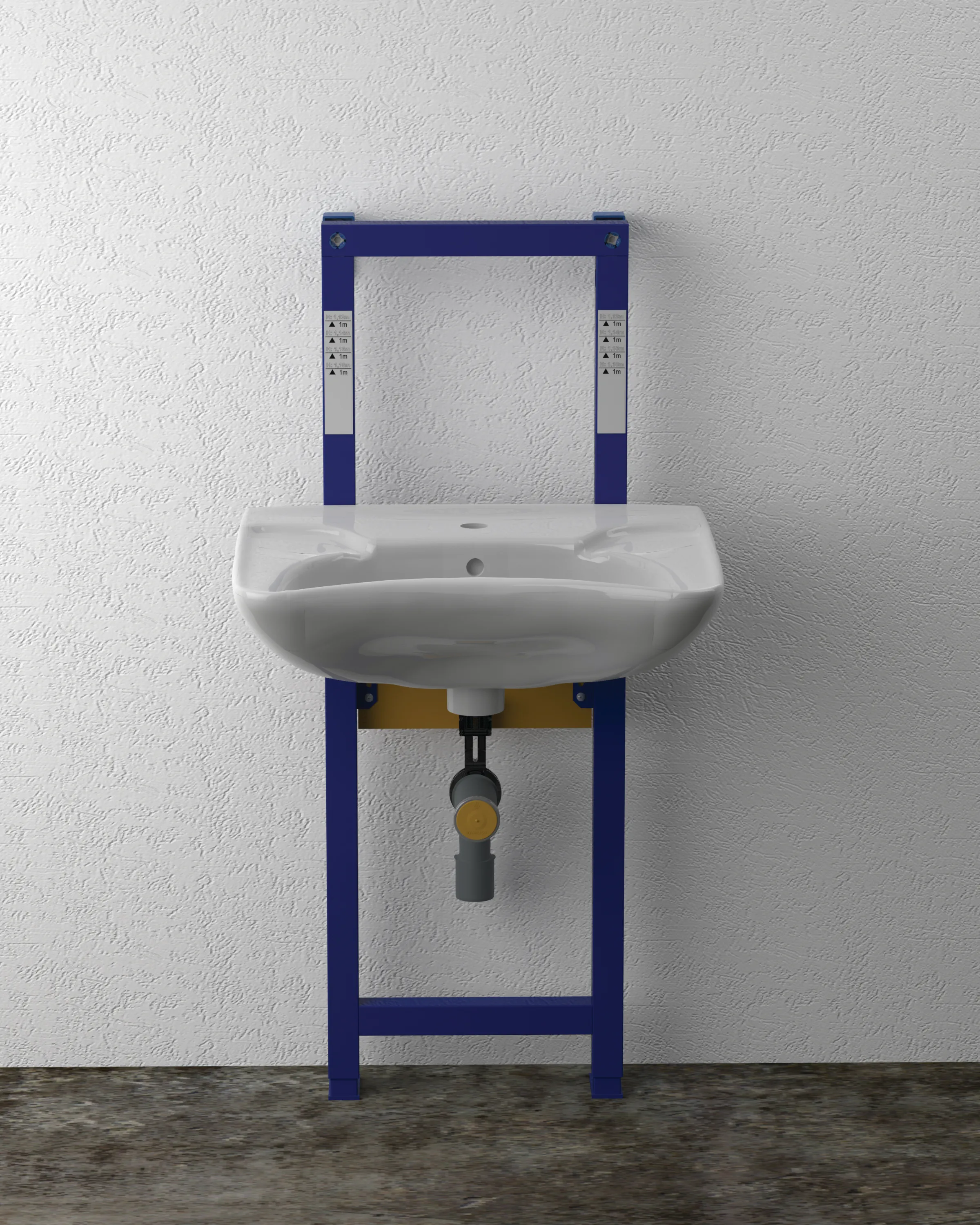

WASHBASIN FRAME 380

Washbasin elements guarantee a solid and fast installation of a washbasin. Due to the adjustability of the intermediate profiles, almost all washbasins can be mounted.

Product number: 8050452721
EAN: 8711778118638


  • Wash basin support frame
  • Blue powder coated frame
  • Adjustable feet (20 cm)
  • Pre-assembled wall fixation kit 380 mm wide
  • Incl. fixation materials, trap elbow 40/50 mm
  • Max 280 mm offset for washbasin fixation
  • Available accessories: Fixation plate for wall mounted tap ware
Downloads

Adjustable depth: Yes
Adjustable height: Yes
Adjustable washbasin height: Yes
Adjustable width: No
Depth: 135 to 200 mm
Height: 1120 to 1380 mm
Material: Steel
Outer pipe diameter drainage: 50 mm
Pre-assembled element: Yes
Self-bearing construction: Yes
Suitable for drywall: Yes
Suitable for sanitary installation wall system: No
Suitable for solid wall: No
Surface protection: Coated
Tap assembly method: Washbasin/top structure
Tap connecting plate adjustable: Yes
Warranty: 10 years
Width: 380 to 380 mm
With built-in siphon: No
With drainage bend: Yes
With mounting material for the element: Yes
With tap connecting plate: Yes
With washbasin attachment materials: Yes
