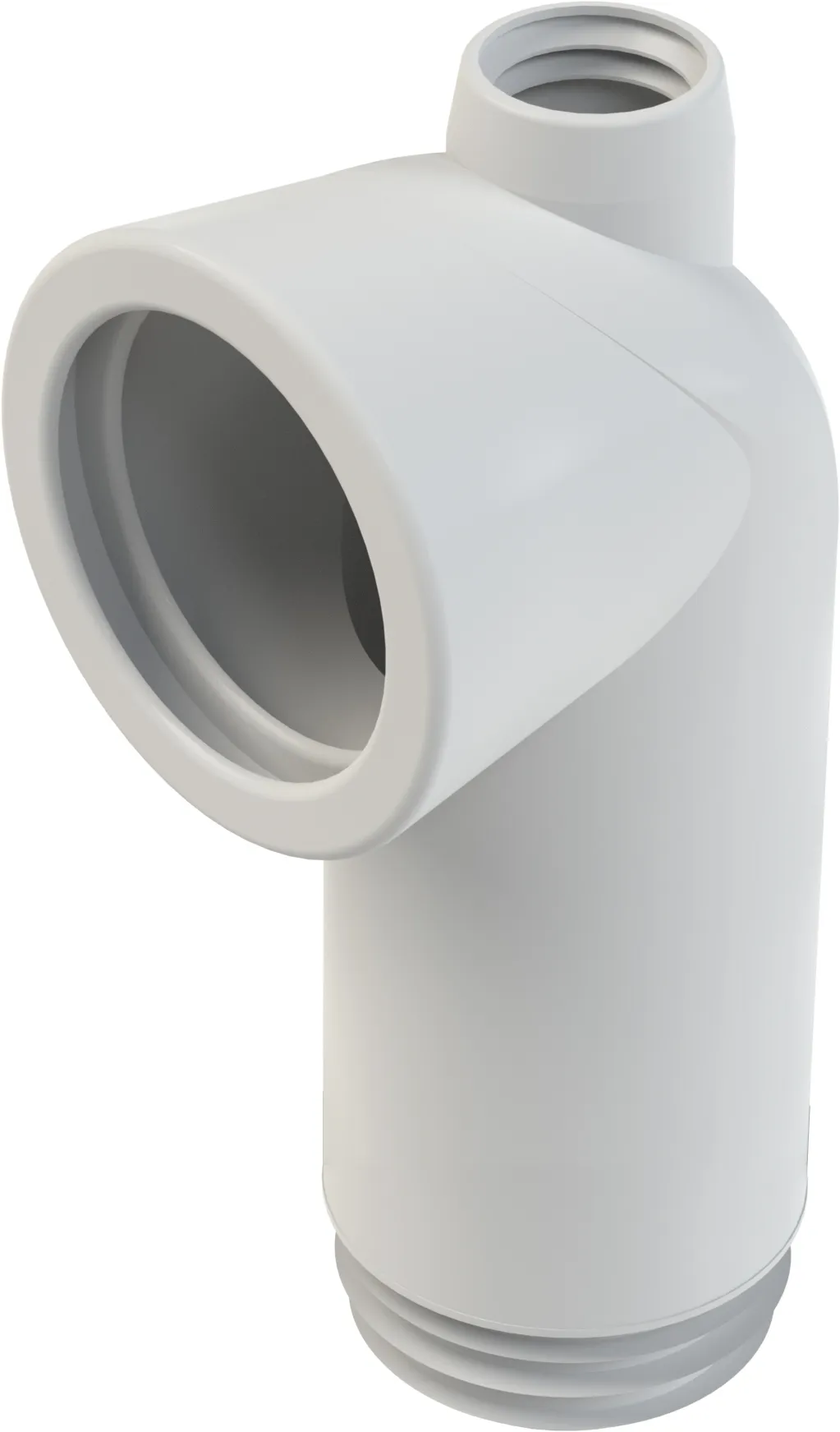

WC discharge elbow 303M

We provide a diverse selection of WC connecting components designed to meet various requirements for outfitting bathrooms and sanitary facilities. Our offerings encompass WC connectors, WC discharge elbows, flush pipes, and flexifons, allowing you to select the most appropriate solutions for your needs.

Product number: 7010121480
EAN: 8711778048423


  • Elbow with extra branch-off 40 mm for fountain or vented trap
  • Length 180 mm
  • Socket connection 110 mm
  • KOMO certified
  • Colour: white

Angle: 90 °
Colour: White
Eccentric: No
KOMO certified: Yes
Length: 180 mm
Material: Plastic
Model: Right-angled
Number of extra connections: 1
Offset: 0 mm
Outer connection diameter: 40 to 44 mm , 100 to 110 mm
Outer pipe diameter connection 1: 100 mm , 110 mm
Pitch measure: 37 mm
Warranty: 10 years
With de-aeration: No
With non-return valve: No
