Rough installation set for HALITE, IR flushing plate for urinal, 230V
Product number:
201498
EAN:
3838912008404
- For mounting on LIV-FIX urinal element with a non-contact flushing function
- For infrared flushing plate for urinal, 230 V (ID No. 195079)
- Power supply: 230 V/50 Hz
- Rated voltage: 230 V AC
- Operating voltage: 24 V DC

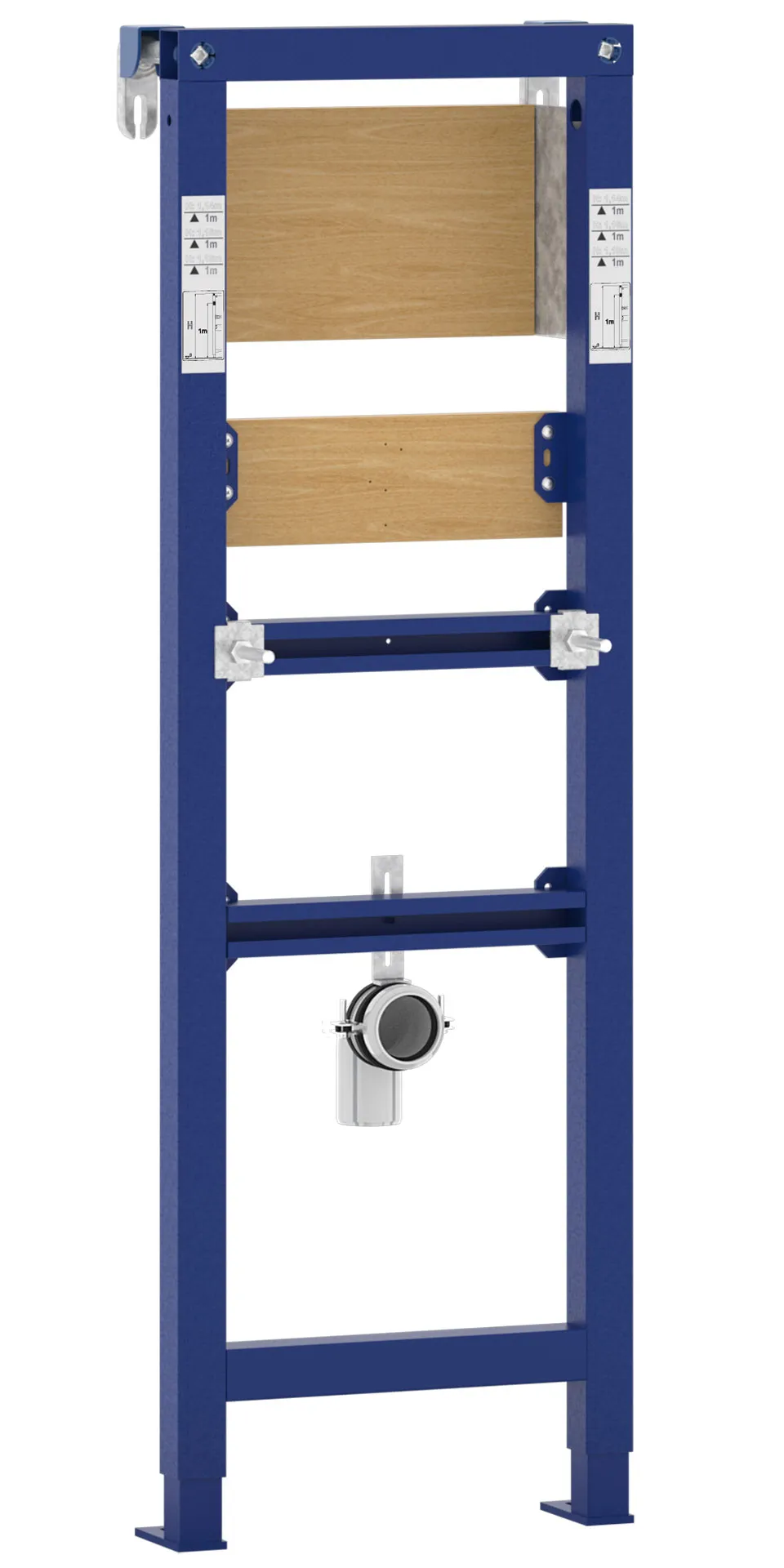

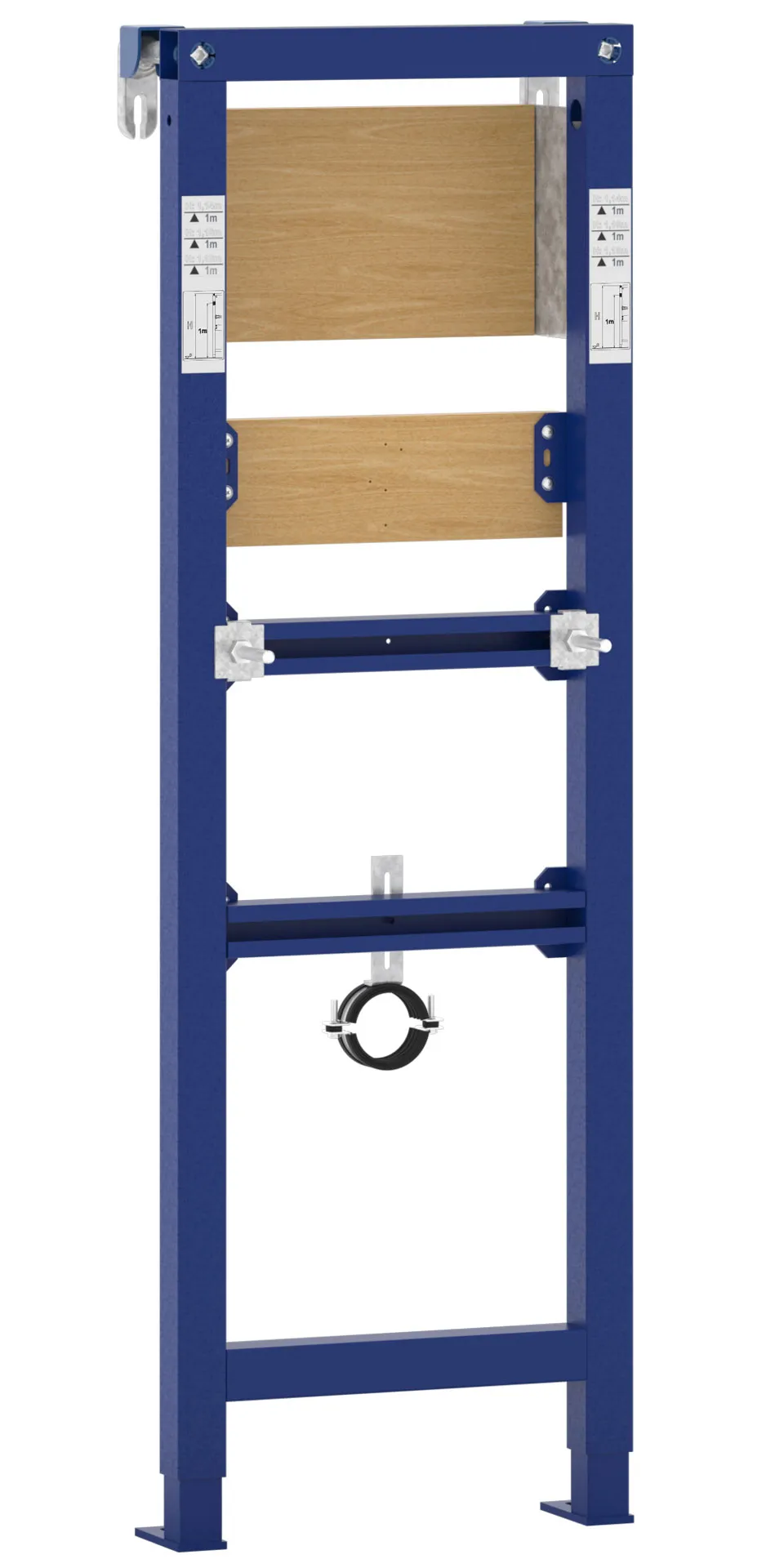

- For LIV-FIX urinal element (ID No. 8050452751)
- Housing set with fixing elements
- Protective set cover
- Solenoid valve 24 V DC
- Water particle filter with the possibility of filter cleaning
- Mechanical angle valve
- Water connection DN 15 (G 1/2)
- Option: Installation directly into solid wall
| Control panel height: | 49 mm |
|---|---|
| Control panel length: | 136 mm |
| Control panel width: | 151 mm |
| For built-in flushing reservoir: | No |
| For surface mounted flushing reservoir: | No |
| For urinal flushing: | Yes |
| Warranty: | 1 year |
| With control panel: | No |
