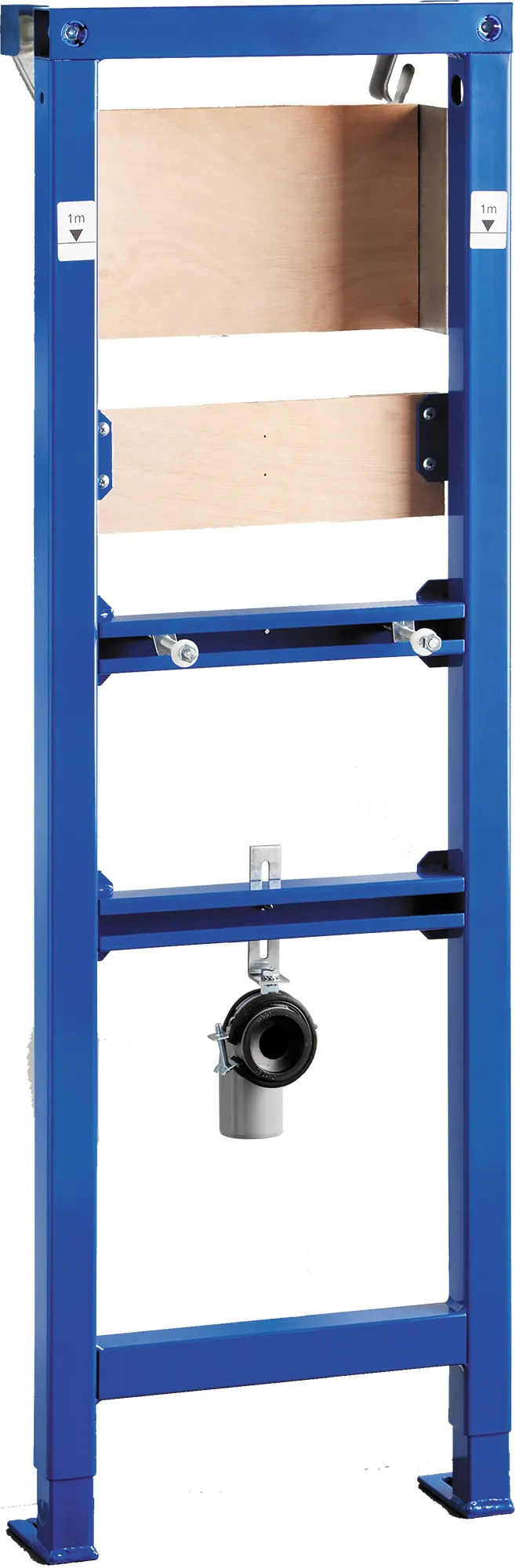

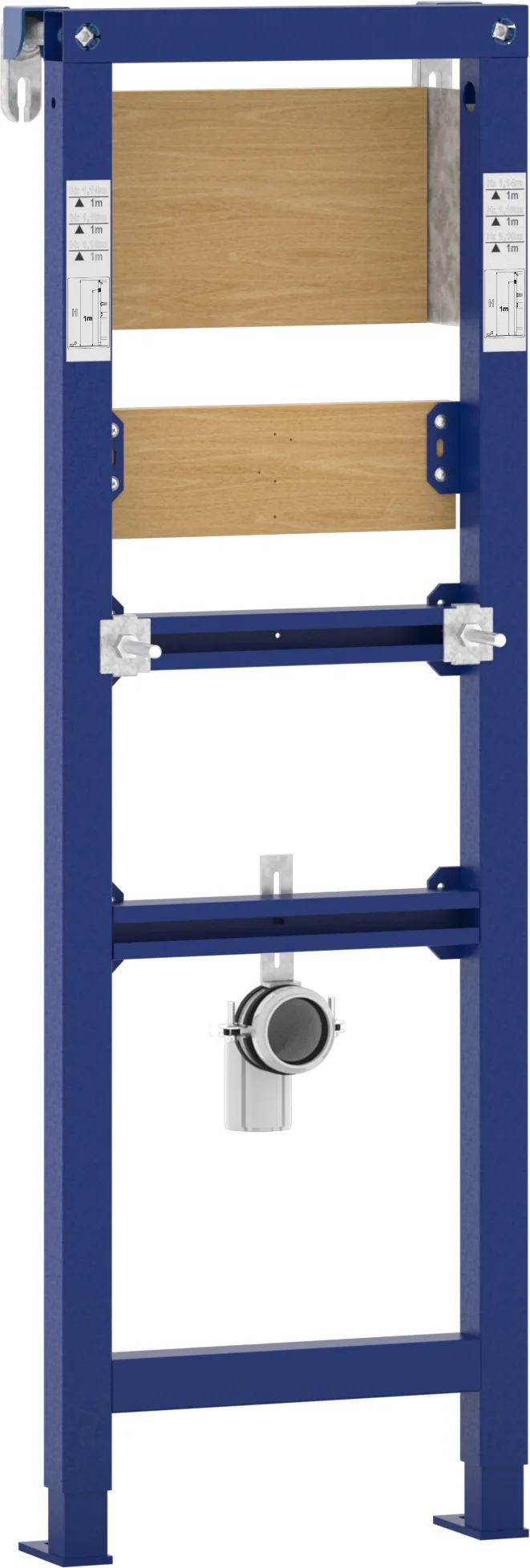

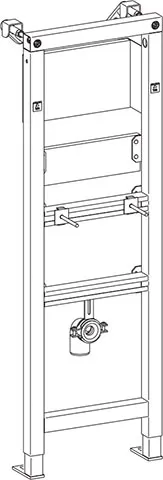

URINAL FRAME 380



Product number: 8050452751
EAN: 8711778118645

  • Urinal support frame
  • Blue powder coated frame
  • Adjustable feet (20 cm)
  • Pre-assembled wall fixation kit 380 mm wide
  • Incl. fixation materials, elbow 50 mm
  • Max 285 offset for urinal fixation

Adjustable depth: Yes
Adjustable height: Yes
Adjustable throughflow capacity: No
Adjustable urinal height: Yes
Adjustable width: No
Battery power supply: No
Degree of protection (IP): Other
Depth: 135 to 200 mm
Flushing time usage frequency adjustment: No
Height: 1180 to 1380 mm
KIWA certified: No
Mains water connection: Internal thread
Material: Steel
Max. pre-pressure: 400 bar
Min. pre-pressure: 120 bar
Number of attachment points according to element: 4
Outer pipe diameter drainage: 50 mm
Outer pipe diameter tap water: 12 mm
Pre-assembled element: Yes
Pre-assembled flushing unit: Yes
Programmable with remote control: No
Self-bearing construction: Yes
Size of mains water connection: 1/2 inch
Suitable for drywall: Yes
Suitable for infrared operation: No
Suitable for manual operation: No
Suitable for pneumatic operation: No
Suitable for radar operation: No
Suitable for sanitary installation wall system: Yes
Suitable for solid wall: Yes
Surface protection: Coated
Warranty: 10 years
Width: 380 to 380 mm
With building management system connection: No
With drainage bend: Yes
With inlet fittings: No
With mounting material for the element: Yes
With pre-flushing: No
With siphon: No
With spacer tube for radar antenna: No
With urinal attachment materials: Yes
